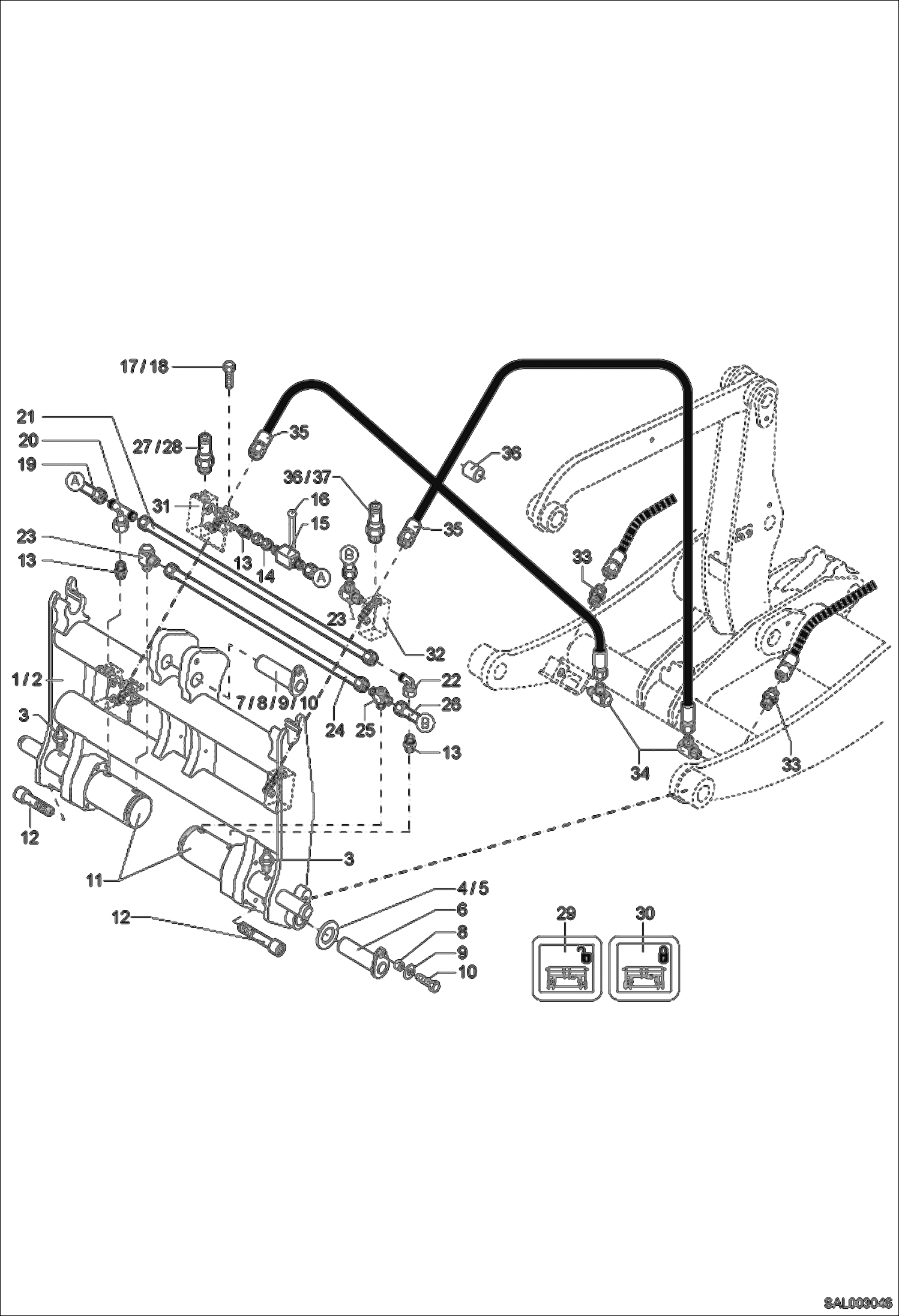

Запчасти Bobcat AL440 QUICK MOUNT HITCH HYDRAULIC INSTALLATION

1

6452104000

DEVICE, QUICK FIT W/Ref. 1-30

2

6452103003

QUICK MOUNT HITCH FRAME W/Ref. 31-32

3

1607003006

GREASE NIPPLE M6x1

4

1309412815

SHIM

5

1309412926

SHIM

6

0337103033

PIN

7

0145011120

PIN Was 6145011120 - A

8

0333023033

SPACER BUSHING 20X3,5X7

9

1343707061

WASHER 13

10

1008707529

BOLT M12X25

11

6502116100

HYDRAULIC CYLINDER Z 63/50

12

1045707730

BOLT M12X55

13

1915060555

FITTING

14

0103723021

TUBING

15

5001609600

BALL TAP

16

5001207171

KEY

17

1008707213

BOLT M 6X20

18

1210707009

NUT M6

19

0461604030

TUBING

20

1919060151

FITTING

21

0461604032

TUBING

22

1924060151

FITTING

23

1921060154

FITTING

24

0461604034

TUBING

25

1920000103

FITTING

26

0461604036

TUBING

27

5000080002

DUST CAP

28

5000080001

COUPLING PLUG

29

5358609064

MARKING PLATE

30

5358609065

MARKING PLATE SW-VERRIEGELN

31

6461604050

DISTRIBUTION RIGHT

32

6332806105

DISTRIBUTION LEFT

33

1915000759

FITTING

34

1926060157

FITTING

35

4460103359

HOSE

36

0490607152

PROTECTION HOSE 750 - Option
