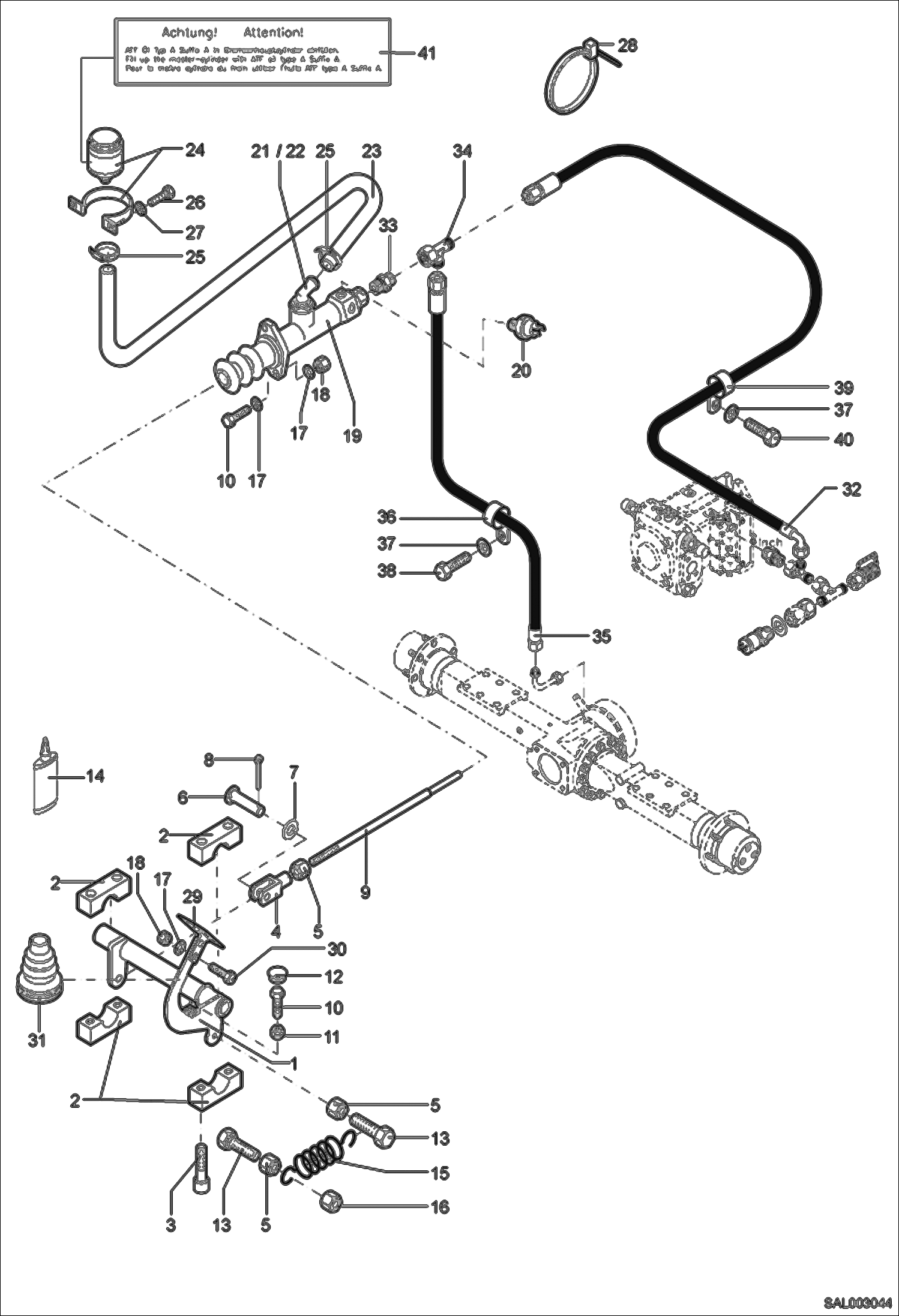

Запчасти Bobcat AL440 SERVICE BRAKE 36 km/h Fast Travel Version HYDRAULIC INSTALLATION

1

6451028002

BRAKE PEDAL

2

5660199790

BEARING SECTION (1PAAR)

3

1045707824

BOLT M 10X60

4

1796707008

CLEVIS

5

1210707013

NUT M 10

6

1360707126

PIN

7

1290707020

WASHER 10,5

8

1395707917

COTTER PIN

9

0451028006

ROD, THREADED

10

1008707618

BOLT M 8x30

11

1210707011

NUT M8

12

1980930615

PROTECTION PLUG

13

1007707424

BOLT M 10X40

14

MCS001035A

GLUE SL 2042

15

5064162330

SPRING

16

1212251013

NUT

17

1290707018

WASHER 8,4

18

1212251011

NUT M8

19

5650656598

MAIN CYLINDER

20

5050650826

SWITCH, PRESSURE

21

5650046505

FITTING

22

1636815359

SEAL RING 22X27X1,5

23

0461528002

HOSE

24

5650638854

EXPANSION TANK

25

5603320362

PIPE CLIP

26

1008707912

BOLT M 6X16

27

1307707014

WASHER 6,4

28

5350650392

BINDER

29

6336028107

BRACKET FOOT PEDAL

30

1008707318

BOLT M8X25

31

5255042380

BELLOWS

32

4256235371

HOSE

33

0334028010

FITTING

34

1919000689

FITTING

35

4506263466

HOSE

36

5000095200

HOSE CLIP

37

1343707057

WASHER

38

1008707817

BOLT M 8X16

39

5000136820

HOSE CLIP

40

1008707018

BOLT M 8X20

41

0398120020

MARKING PLATE ATF OEL
