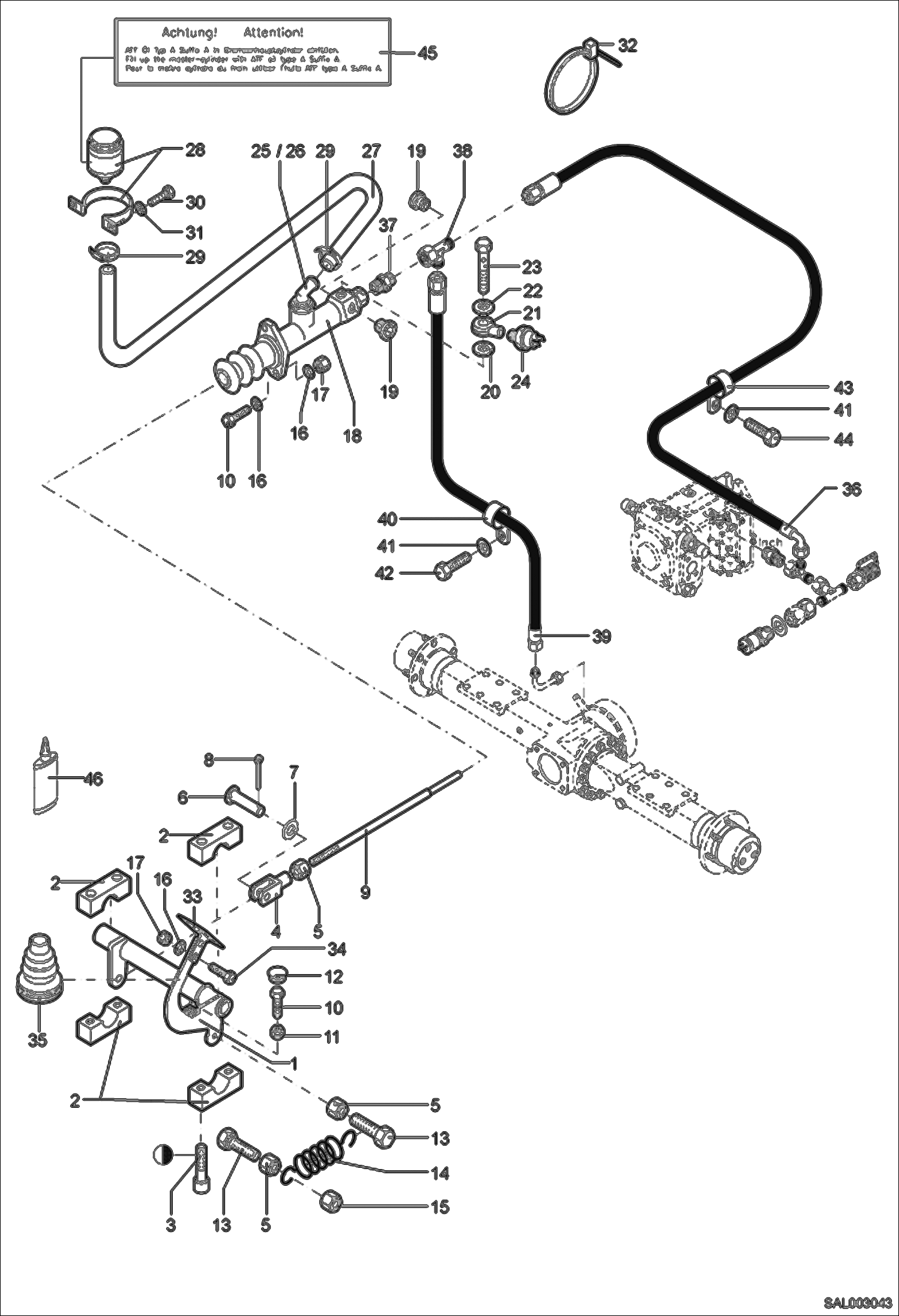

Запчасти Bobcat AL440 SERVICE BRAKE Standard version HYDRAULIC INSTALLATION

1

6451028002

BRAKE PEDAL

2

5660199790

BEARING SECTION

3

1045707824

BOLT M 10X60

4

1796707008

CLEVIS

5

1210707013

NUT M 10

6

1360707126

PIN

7

1290707020

WASHER 10,5

8

0451028006

ROD, THREADED

9

0451028006

ROD, THREADED

10

1008707618

BOLT M 8x30

11

1210707011

NUT M8

12

1980930615

PROTECTION PLUG

13

1007707424

BOLT M 10X40

14

5064162330

SPRING

15

1212251013

NUT M 10

16

1290707018

WASHER

17

1212251011

NUT

18

5650638860

MAIN CYLINDER

19

5650057250

PLUG

20

1636815352

SEAL RING

21

5650237200

BANJO FITTING

22

1636815453

SEAL RING

23

5650024900

BANJO BOLT

24

5050650826

SWITCH, PRESSURE AK 7807

25

5650046505

FITTING

26

1636815359

SEAL RING

27

0461528002

HOSE

28

5650638854

EXPANSION TANK

29

5603320362

PIPE CLIP

30

1008707912

BOLT M 6X16

31

1307707014

WASHER 6,4

32

5350650392

BINDER

33

6336028107

BRACKET FOOT PEDAL

34

1008707318

BOLT

35

5255042380

BELLOWS

36

4256205371

HOSE

37

1915000641

FITTING

38

1919000689

FITTING

39

4506263466

HOSE

40

5000095200

HOSE CLIP

41

1343707057

WASHER

42

1008707817

BOLT M8X16

43

5000136820

HOSE CLIP

44

1008707018

BOLT M 6X20

45

0398120020

MARKING PLATE

46

MCS001035A

GLUE SL 2042
