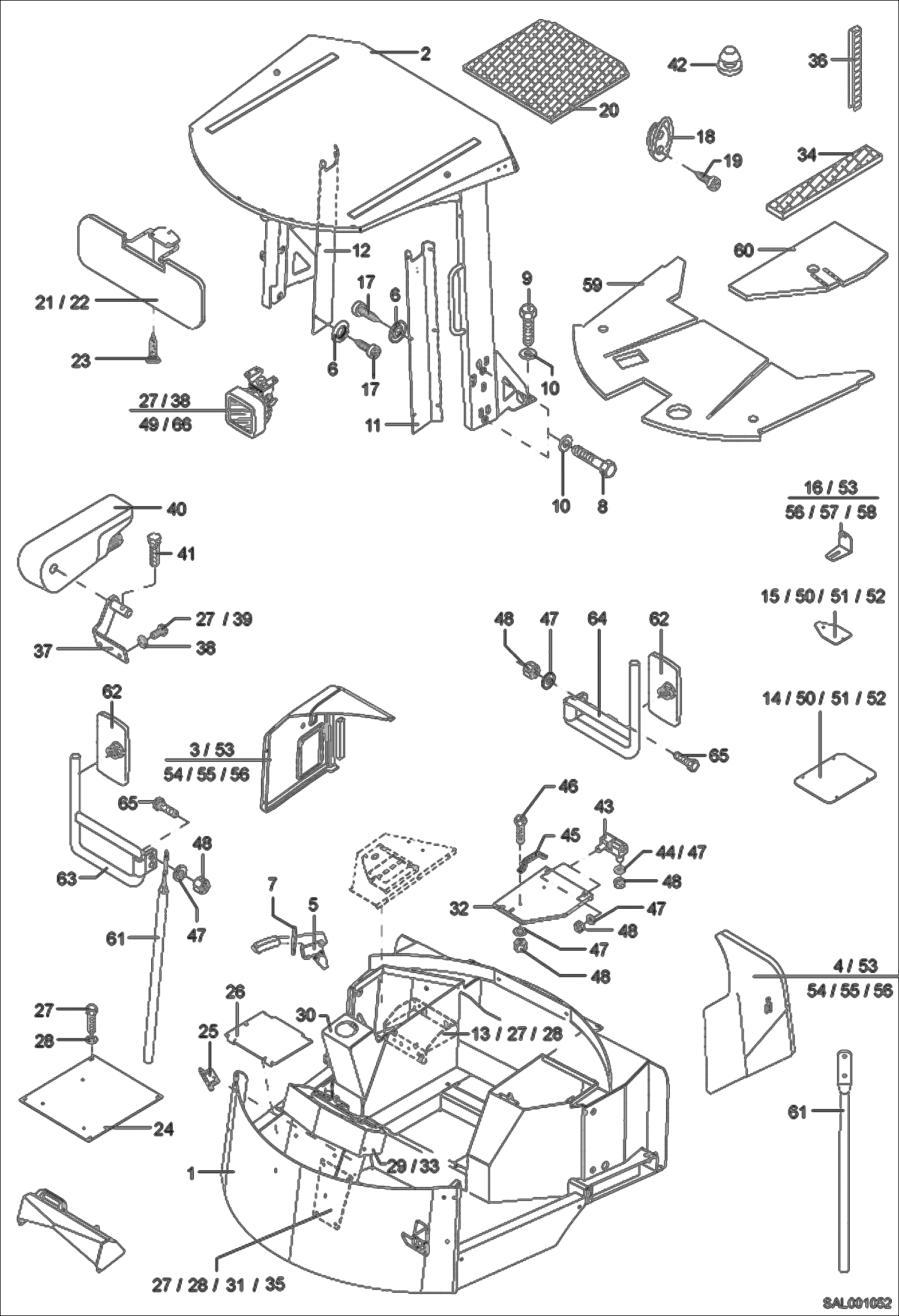

Запчасти Bobcat AL440 CANOPY PLATFORM MAIN FRAME

1

6452741103

PLATFORM

2

6452741510

CANOPY, PROTECTION ROOF

3

5388665401

COVERING

4

5388665402

COVERING

5

5388665013

HAND BRAKE LEVER

6

5388662047

WASHER 6X20

7

5388665403

SEAL

8

1007707353

BOLT

9

1008707552

BOLT

10

1290707033

WASHER 21X37X3

11

6452741653

COVER, LEFT

12

6452741654

COVER, RIGHT

13

6452741656

BRACKET

14

6452741659

FLAP

15

6452741658

FLAP

16

8452741665

BRACKET Was 6452741665 - A

17

1087311208

BOLT

18

5354244600

HOOK

19

1117707324

BOLT

20

6452741591

INSULATION, CANOPY

21

5354601850

SUN VISOR

22

5354601851

COVER

23

1115707838

BOLT

24

6452741552

CAP

25

6452741581

PLATE, ANGLE

26

6452741580

CAP

27

1008707018

BOLT M8X20

28

1343707057

WASHER 8,4

29

6452741650

CONSOLE

30

6452741648

CONSOLE

31

6452741650

CONSOLE

32

8452741649

COVER Was 6452741649 - A

33

1069707912

BOLT

34

5354640125

NEOPRENE STRIP

35

5050651343

CAP

36

5354600000

EDGE PROTECTION

37

6452741582

HOLDER

38

1290707018

WASHER

39

5558300004

GUARD CAP

40

5305661702

ARMREST, RIGHT

41

5305661749

BOLT

42

5653093572

BASE, RUBBER

43

5354620100

HINGE

44

1290707014

WASHER 6,4

45

5354576810

HANDLE

46

1008707912

BOLT M 6X16

47

1343707055

WASHER 6,4

48

1212251009

NUT M6

49

1212251011

NUT M 8

50

1045707906

SCREW

51

1290707010

WASHER 4,3

52

1212251006

NUT M 4

53

5526660008

NUT

54

1069907609

BOLT

55

5526660008

NUT

56

1087311208

BOLT

57

1045707909

BOLT M 5X16

58

1290707012

WASHER 5,3

59

0452741690

CARPET

60

0452741691

CARPET

61

0452741584

HOLDER

62

5653634770

MIRROR

63

5653634790

ROD, MIRROR RIGHT

64

5653634800

ROD, MIRROR LEFT

65

1008707513

BOLT M 6X25

66

5350661223

WORKING LIGHT
