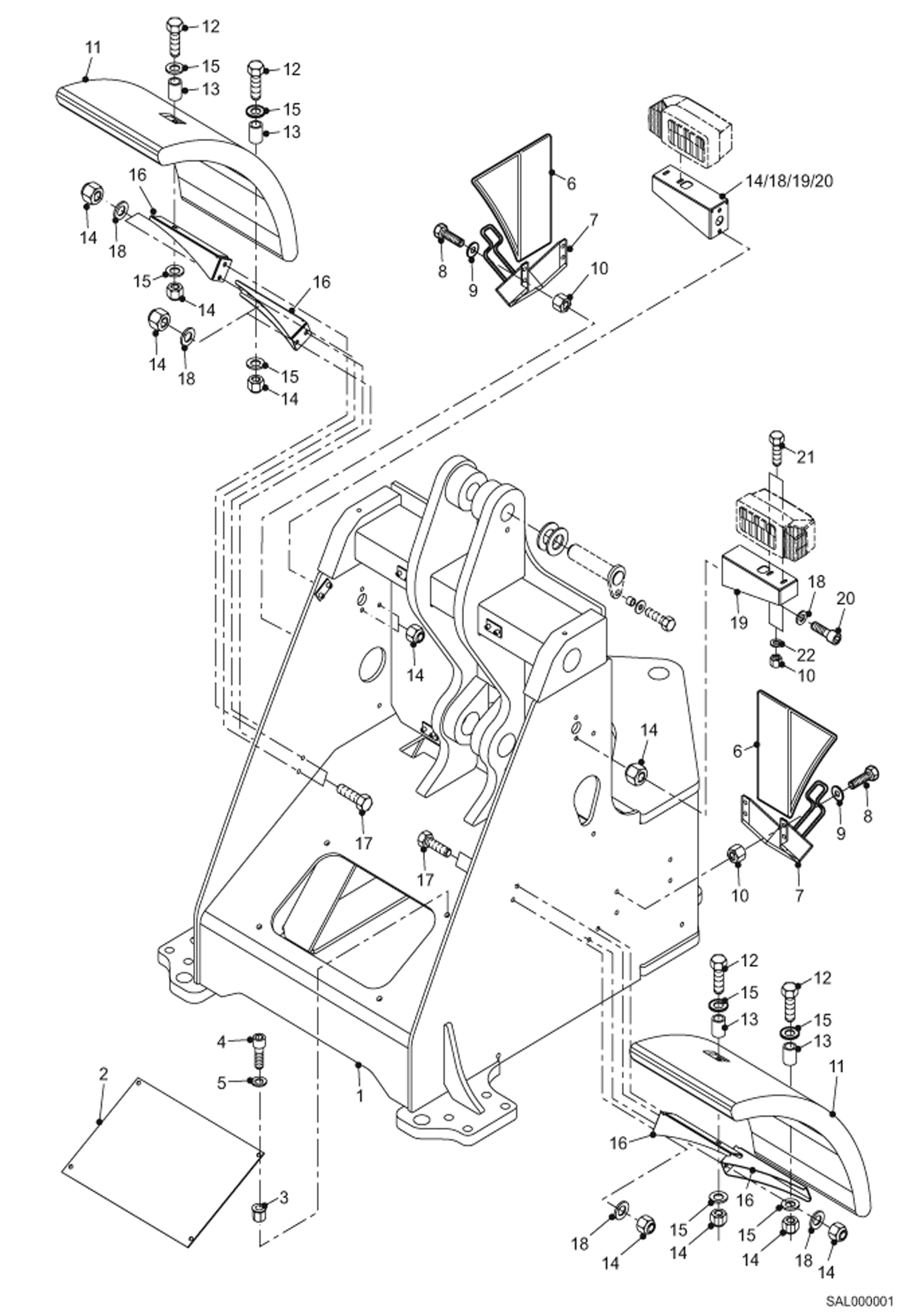

Запчасти Bobcat AL440 FRONT CHASSIS MAIN FRAME

1

6453001001

FRONT CHASSIS

2

6337502011

COVER

3

1945707009

NUT

4

1045707713

PAN HEAD SCREW

5

1307707014

WASHER

6

5816638195

CHOCK

7

5816638196

BRACKET

8

1008707318

BOLT

9

1290707018

WASHER

10

1212251011

NUT

11

5267010056

MUD GUARD

12

1008707424

BOLT

13

0188814218

SPACE BUSHING

14

1212251013

NUT

15

1307707020

WASHER

16

6451002031

BRACKET

17

1008707324

BOLT

18

1290707020

WASHER

19

6461403002

LIGHT HOLDER

20

1045707124

BOLT

21

1008707618

BOLT

22

1343707057

WASHER
