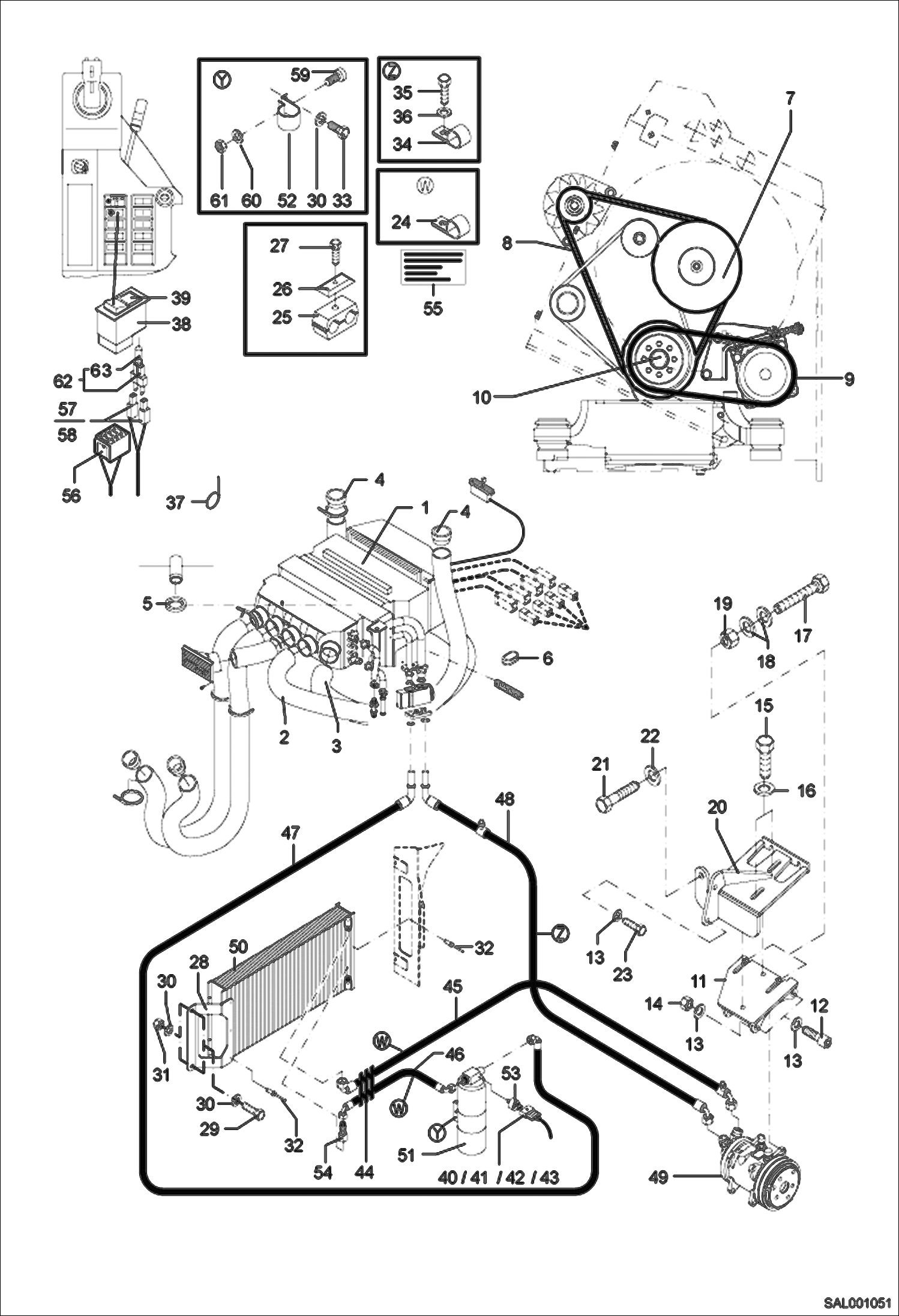

Запчасти Bobcat AL440 AIR CONDITIONER MAIN FRAME

1

5388665602

AIR, CONDITIONER

2

5388665542

HOSE 1240MM

3

5388665543

HOSE

4

5388665478

REDUCTION PIECE

5

5388665544

SEAL RING

6

5388665602

AIR, CONDITIONER

7

5411663441

V-BELT DRIVE

8

5411663940

V-BELT 10X1325

9

1490953795

V-BELT 12,5X932

10

5411657028

PULLEY

11

0452282010

BRACKET

12

1045707424

BOLT M 10X40

13

1290707020

WASHER 10,5

14

1212251013

NUT

15

1008707124

BOLT 10X30

16

1343707059

WASHER

17

1008707919

BOLT

18

1307707018

WASHER 8,4

19

1210707011

NUT M 8

20

0452282005

BRACKET

21

1008707036

BOLT

22

1290707025

WASHER B 15

23

1008707923

BOLT M 10X35

24

5000210400

HOSE CLIP

25

5660199783

CLIP

26

5660200230

COVER PLATE

27

1007707319

BOLT M 8x45

28

0454275212

BRACKET

29

1008707513

BOLT M 6X25

30

1343707055

WASHER 6,4

31

1212251009

NUT M6

32

1940000724

BLIND RIVET

33

1008707612

BOLT M 6X12

34

5000096800

HOSE CLAMP

35

1008707018

BOLT

36

1343707057

WASHER 8,4

37

5653093560

BINDER

38

5050651384

SWITCH INTERRUPTER

39

5358650383

DECAL SYMBOL

40

5350249681

HOUSING (MALE)

41

5350249346

GASKET

42

5350249345

GASKET

43

5350249673

CONTACT

44

5000068300

WIRING HARNESS

45

5388665601

HOSE

46

5388662932

HOSE FROM COND.TO FILTER

47

5388665400

HOSE

48

5388665600

HOSE

49

5169001018

COMPRESSOR

50

5169001017

CONDENSATOR

51

5388662731

FILTER

52

5388662855

FILTER SUPPORT

53

5388661135

PRESSURE SWITCH PRIMARY

54

5388665521

FITTING

55

5388661117

MARKING PLATE

56

5050650225

HOUSING

57

5350246805

TERMINAL FEMALE

58

5350249536

HOUSING 1-FACH

59

5388662856

BOLT M 5X40

60

5388662623

WASHER M 5

61

1210707007

NUT

62

5050650226

LAMP

63

1813000021

ROUND BULB 12V
