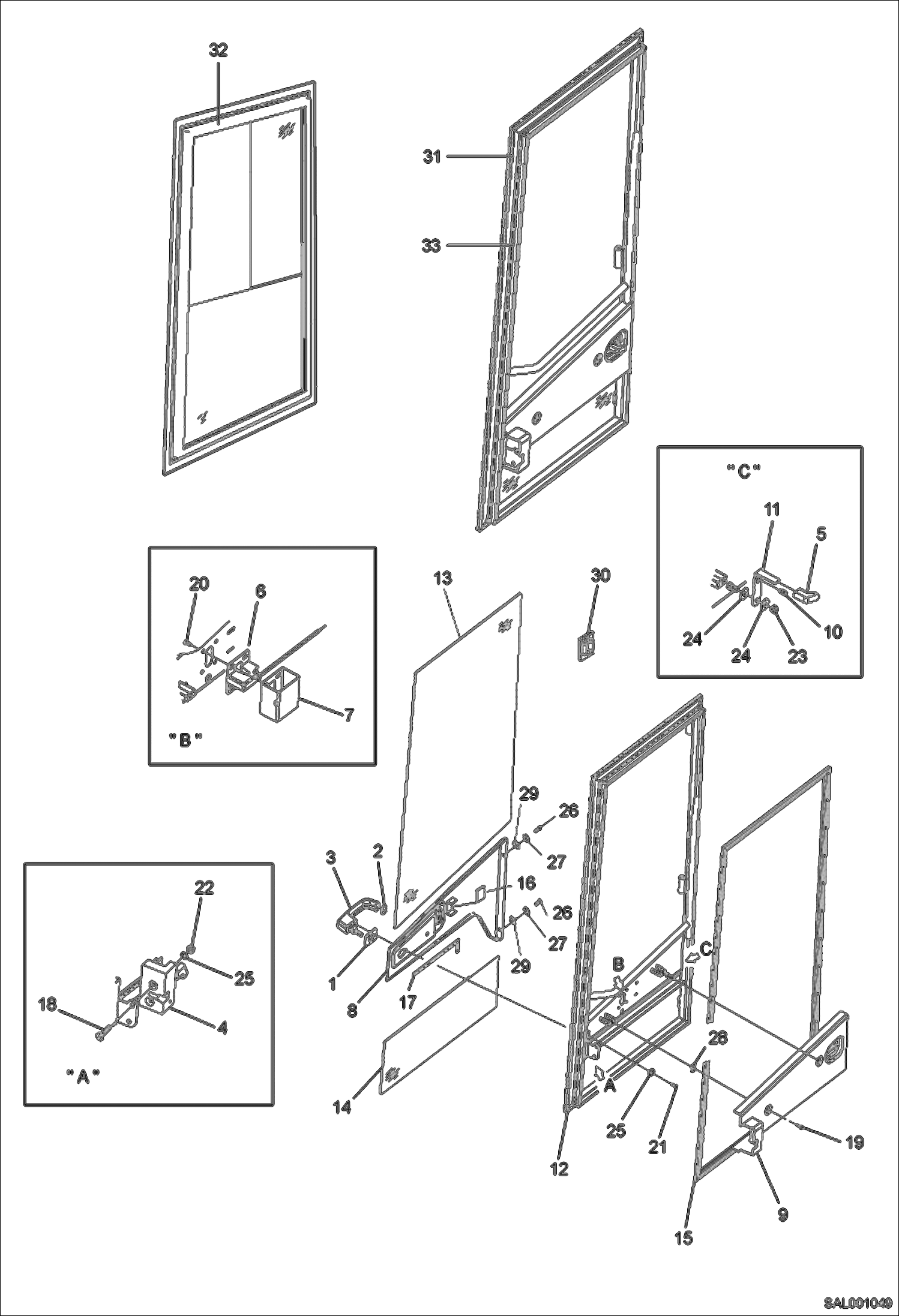

Запчасти Bobcat AL440 CAB-DOOR RIGHT MAIN FRAME

1

5388665139

SEAL

2

5388665140

SEAL

3

5388665443

DOOR HANDLE

4

5388661477

LOCK RIGHT

5

5388662587

BUTTON,PLASTIC

6

5388662143

DOOR LOCKING

7

5388662222

HOUSING

8

5388665531

LINING, BOBCAT AK 09-05-2008

9

5388665456

LINING

10

5388662163

CLIP

11

5388665142

LEVER

12

5388665457

DOOR FRAME RIGHT

13

5103661335

DOOR PANE

14

5103661361

PANE, DOOR Was 5388665459 - A

15

5388665146

SEAL DOOR

16

5388665453

SEAL

17

5388665137

SEAL

18

1008907019

BOLT M 8X40

19

1045707909

BOLT M 5X16

20

5388665145

BOLT M5X16

21

1066707513

BOLT, M6X25

22

1210707011

NUT M8

23

5388665440

NUT M 8

24

1307707018

WASHER 8,4

25

1327707018

TOOTHED LOCK WASHER

26

5388665096

BOLT M4,8X22

27

5388662047

WASHER 6X20

28

5388665102

CLIP M 5

29

5388665192

CLIP

30

MCS008042A

KIT, WINDOW GLUE

31

5388665525

DOOR, RIGHT CPL.

32

5388665533

WINDOW, SLIDING RIGHT CPL. Option

33

5388661159

DOOR, RIGHT CPL. W/SLIDING Option
