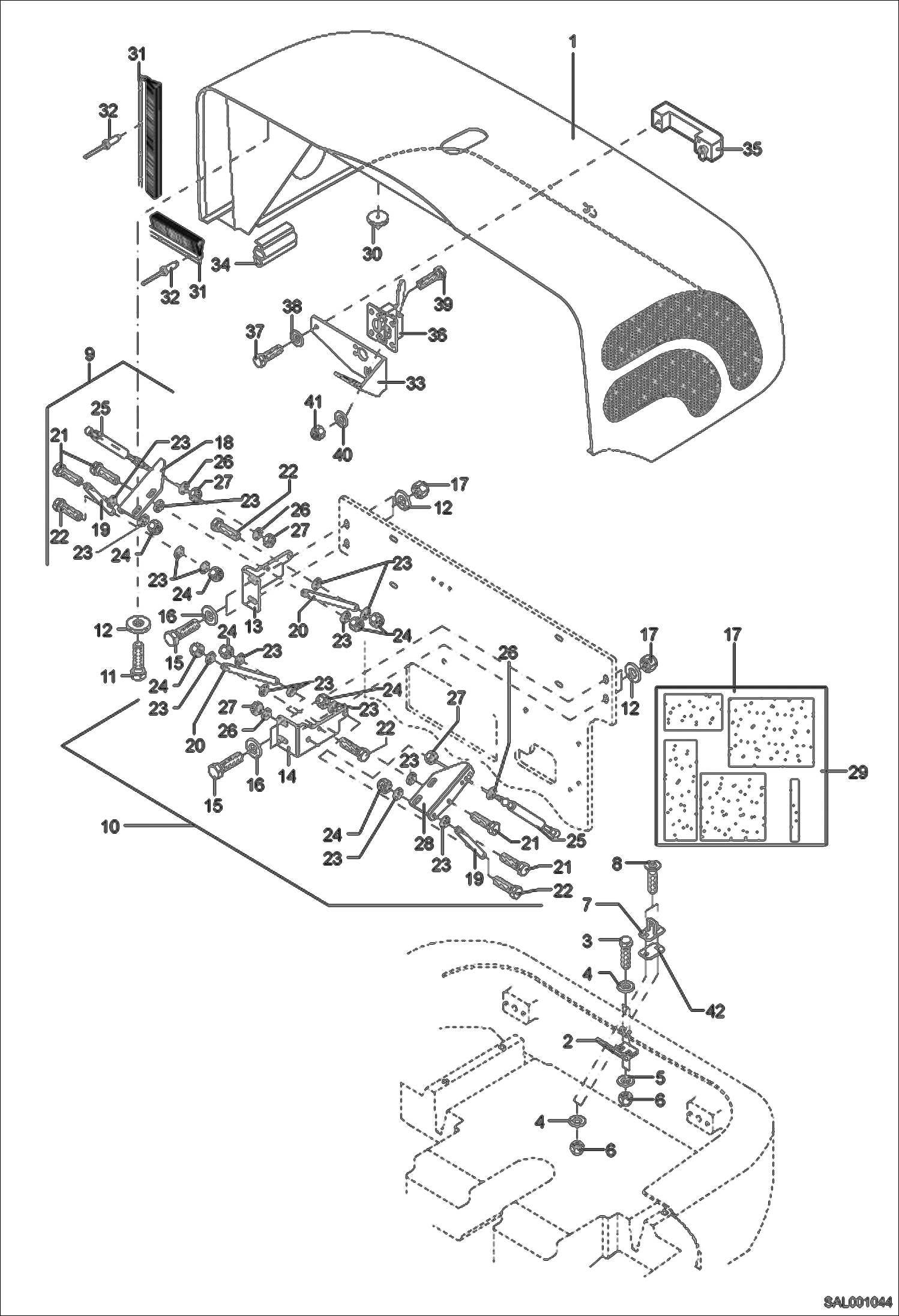

Запчасти Bobcat AL440 ENGINE COVER MAIN FRAME

1

5529050051

ENGINE COVER WHITE

2

0453819059

BRACKET

3

1069907019

BOLT M 8X40

4

1290707018

WASHER 8,4

5

1343707057

WASHER

6

1212251011

NUT M 8

7

5354604338

COTTER

8

1008707618

BOLT M 8X30

9

0453019030

JOINT CPL. RIGHT W/Ref. 13, 18-27

10

0453019031

JOINT CPL. LEFT W/Ref. 14, 18-28

11

1008707923

BOLT M 10X25

12

1343707059

WASHER 10,5

13

0453019038

ANGLE RIGHT

14

0453019039

ANGLE LEFT

15

1007707624

BOLT M10X50

16

1343707059

WASHER 10,5

17

1212251013

NUT M10

18

0453019036

ANGLE RIGHT

19

0451019033

FLAP

20

0451019034

FLAP

21

1019707718

BOLT M8X32

22

1019707818

BOLT M8X35

23

1290707020

WASHER 10,5

24

1212251011

NUT M 8

25

5696636571

GAS PRESSURE SPRY.

26

1290707020

WASHER 10,5

27

1210707013

NUT M10

28

0453019037

ANGLE LEFT

29

5529030003

KIT, LINING

30

5529050006

CLIP

31

5529050003

SEAL BRUSH

32

1940000939

RIVET

33

6451019048

BRACKET

34

7025098

SEAL, BULK/MTR - A

35

5354604442

PLASTIC HANDLE

36

5354604335

HOOD LATCH

37

1008707018

BOLT M8X20

38

1343707055

WASHER 6,4

39

1008707618

BOLT M 8X30

40

1290707018

WASHER 8,4

41

1212251011

NUT M 8

42

6176028067

FLAP
