Запчасти Bobcat AL440 4 IN 1 SHOVEL CYLINDER Навесное оборудование

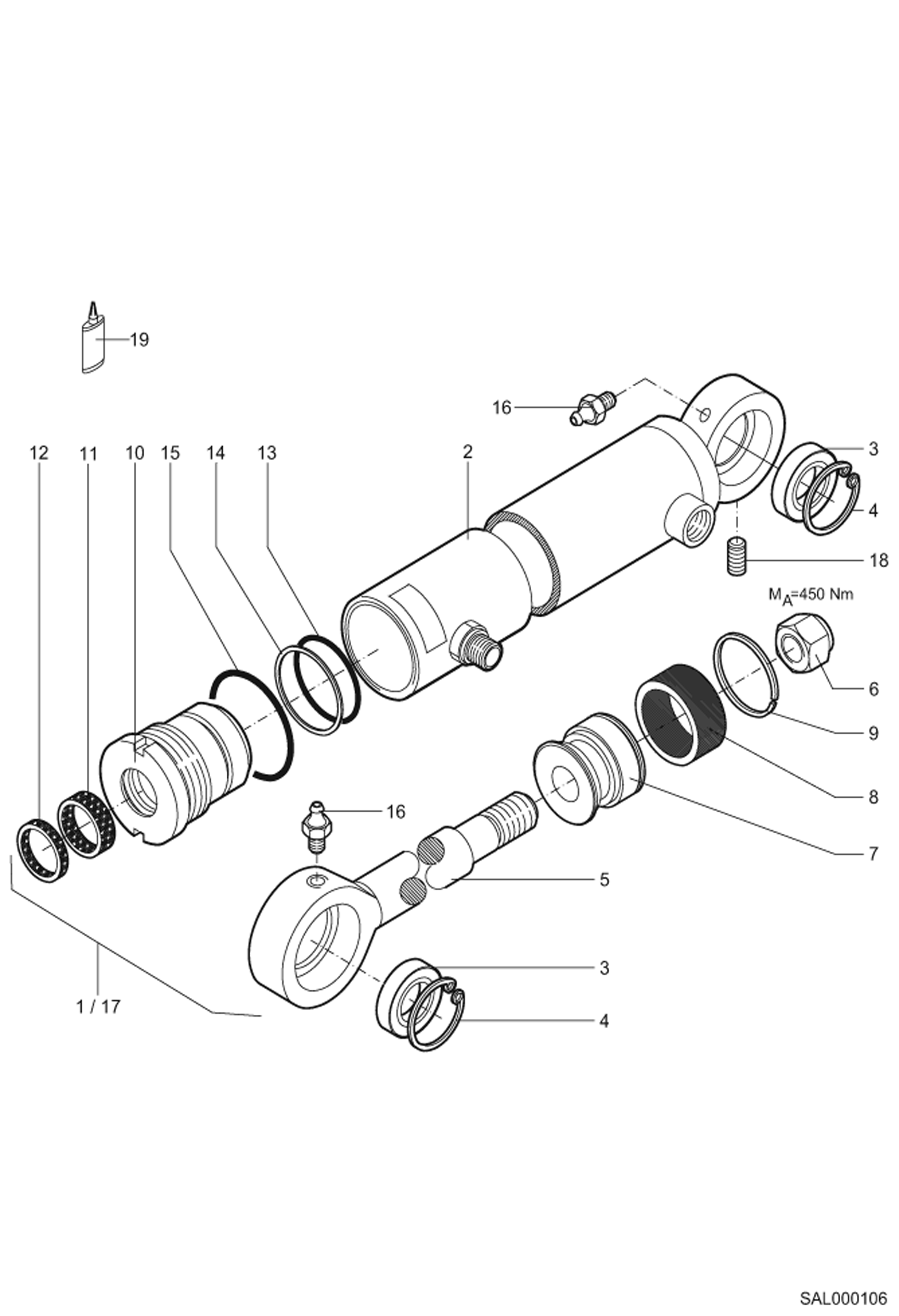

Схема запчастей Bobcat AL440 - 4 IN 1 SHOVEL CYLINDER Навесное оборудование

Артикул

Название

Примечание

Количество

1

6500535000

HYDRAULIC CYLINDER Includes Ref. 2 to 16

2

6500535003

PIPE

3

1950000410

LINKAGE BEARING

4

1456622453

CIRCLIP

5

6500535011

PISTON ROD

6

1212251821

NUT Secure with LOCKTITE 242

7

0500535015

PISTON

8

1634943660

PISTON SEAL

9

5074609215

SEGMENT

10

0500583517

PIERCING BUSHING

11

1956000351

ROD SEAL

12

1974955035

SCRAPER RING

13

1971956324

O-RING

14

1966960706

BACK UP RING

15

1971958039

O-RING

16

1607003006

GREASE NIPPLE

17

1976999341

SEAL KIT Includes Ref. 6 + 8 + 11 to 15

18

1133311612

GRUB SCREW

19

GLUE NLA - Was MCS001036A - A

Выбрано товаров: 19
