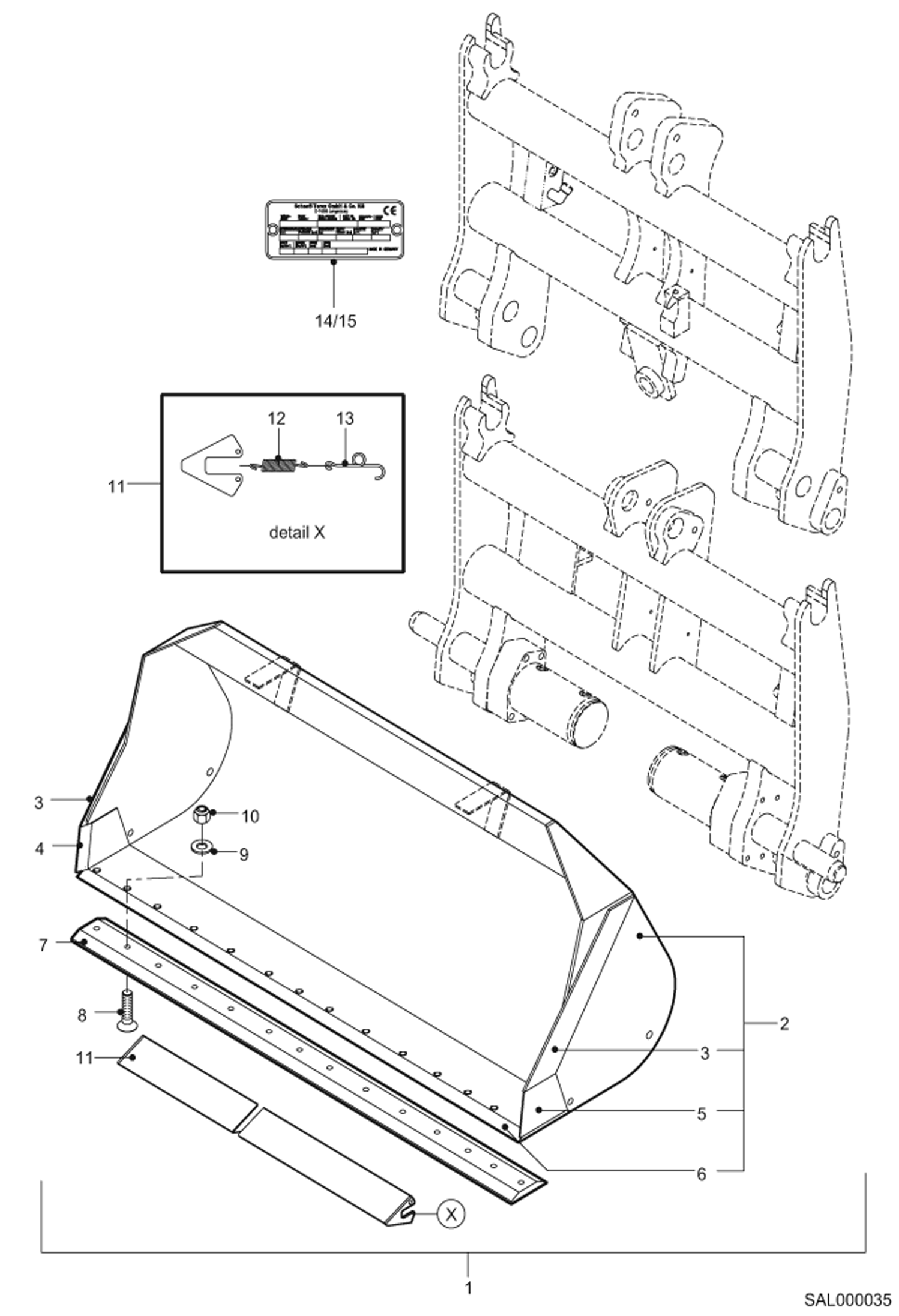

Запчасти Bobcat AL440 LIGHT MATERIAL BUCKET - 2200MM Навесное оборудование

1

6463709000

LIGHT WEIGHT SHOVEL CPL Includes Ref. 2 to 15

2

0463708001

LIGHT WEIGHT SHOVEL Includes Ref. 3 to 6

3

6397701104

SIDE-STRIP

4

0397201023

CUTTING EDGE RIGHT

5

0397201024

CUTTING EDGE LEFT

6

0390302003

CUTTING EDGE

7

0464702003

ADDITIONAL BLADE SCREWBALL.

8

1062707436

BOLT

9

1290707025

WASHER

10

1212251015

NUT

11

6338207020

BLADE PROTECTION CPL Includes Ref. 12 to 13

12

0271422004

SPRING

13

0273114008

HOOK

14

- -

NAME PLATE

15

1940000739

RIVET
