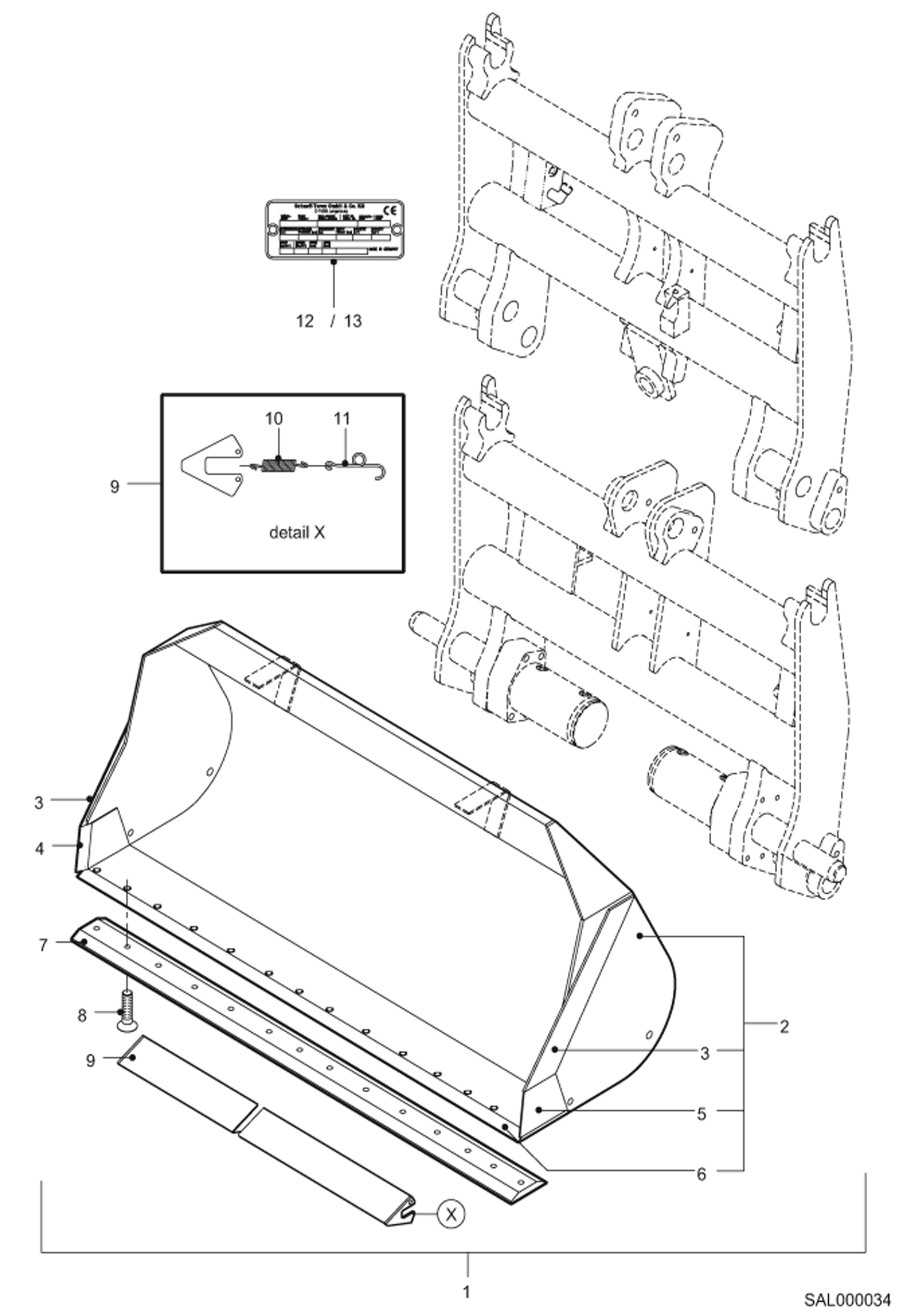

Запчасти Bobcat AL440 LIGHT MATERIAL BUCKET - 2050MM Навесное оборудование

1

6462709000

LIGHT WEIGHT SHOVEL CPL Includes Ref. 2 to 13

2

0462708001

LIGHT WEIGHT SHOVEL Includes Ref. 3 to 6

3

6397701104

SIDE-STRIP

4

0397201023

CUTTING EDGE RIGHT

5

0397201024

CUTTING EDGE LEFT

6

0337702203

CUTTING EDGE

7

0337702002

ADDITIONAL BLADE SCREWABLE.

8

1062707036

BOLT

9

6337705023

BLADE PROTECTION CPL Includes Ref. 10 to 11

10

0271422004

SPRING

11

0273114008

HOOK

12

- -

NAME PLATE

13

1940000739

RIVET
