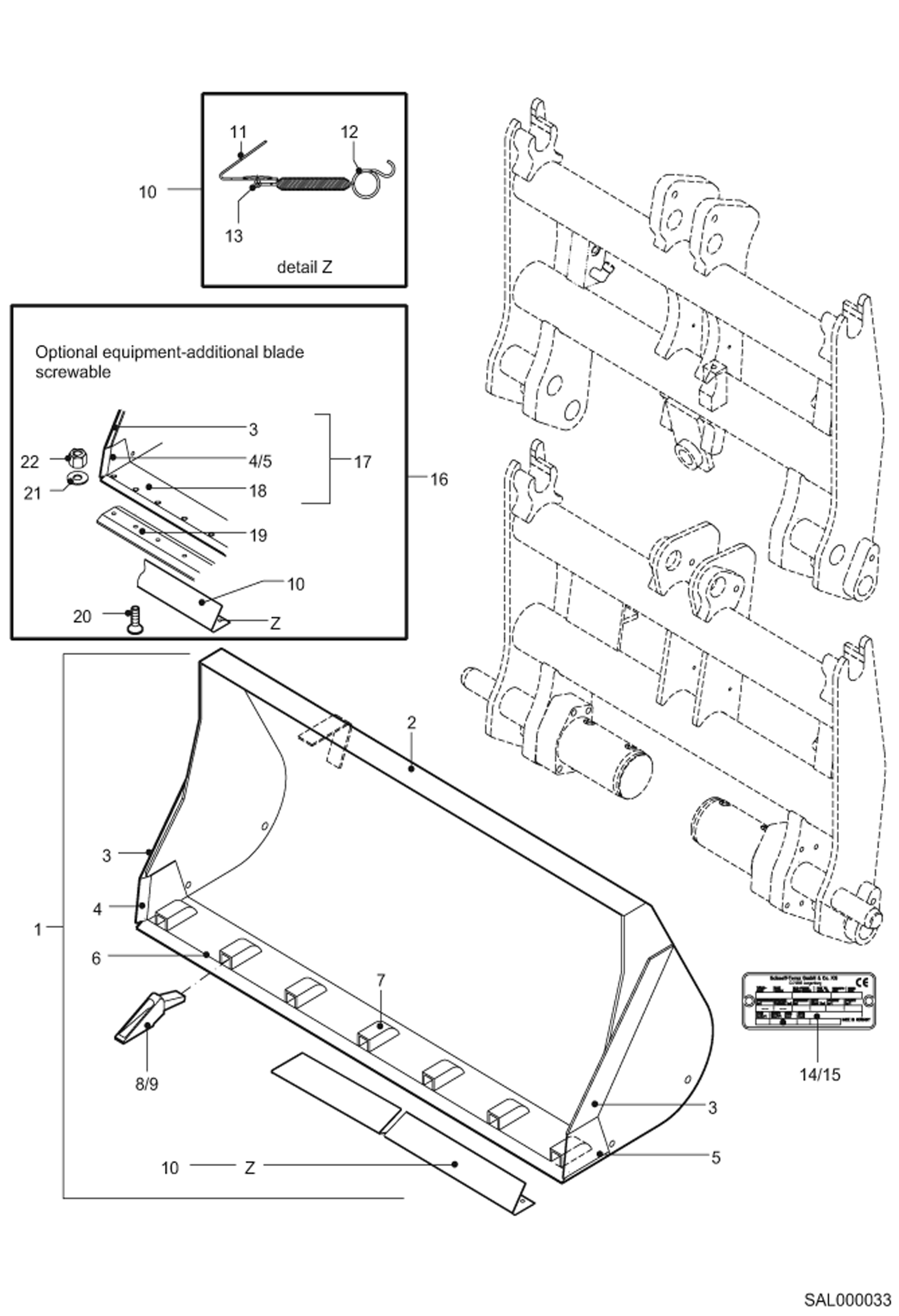

Запчасти Bobcat AL440 EARTH SHOVEL 1950mm 0.88CBM Навесное оборудование

1

6453203000

EARTH SHOVEL Includes Ref. 2 + 8 to 15

2

0453203001

EARTH SHOVEL Includes Ref. 3 to 7

3

6397201004

SIDE-STRIP

4

6453201023

CUTTING EDGE RIGHT

5

6453201024

CUTTING EDGE LEFT

6

6337201205

CUTTING EDGE Includes Ref. 7

7

5455204900

SLEEVE

8

5455204800

TOOTH

9

5455700096

TOOTH CUP Was 5455205000 - A

10

6453201030

TOOTH PROTECTION CPL. Includes Ref. 11 to 13

11

- -

NAME PLATE

12

5249001010

SPRING

13

1395707827

COTTER PIN Was 5249001011 - A

14

--

NAME PLATE

15

1940000739

RIVET

16

6453204000

LOADING SHOVEL Includes Ref. 17 + 19 to 22 + 14 + 15

17

0453204001

LOADING SHOVEL Includes Ref. 3 to 5 + 18

18

0453202003

CUTTING EDGE

19

0453202002

BOLT-ON CUTTING EDGE

20

1062707236

BOLT

21

1290707025

WASHER

22

1212251015

NUT
