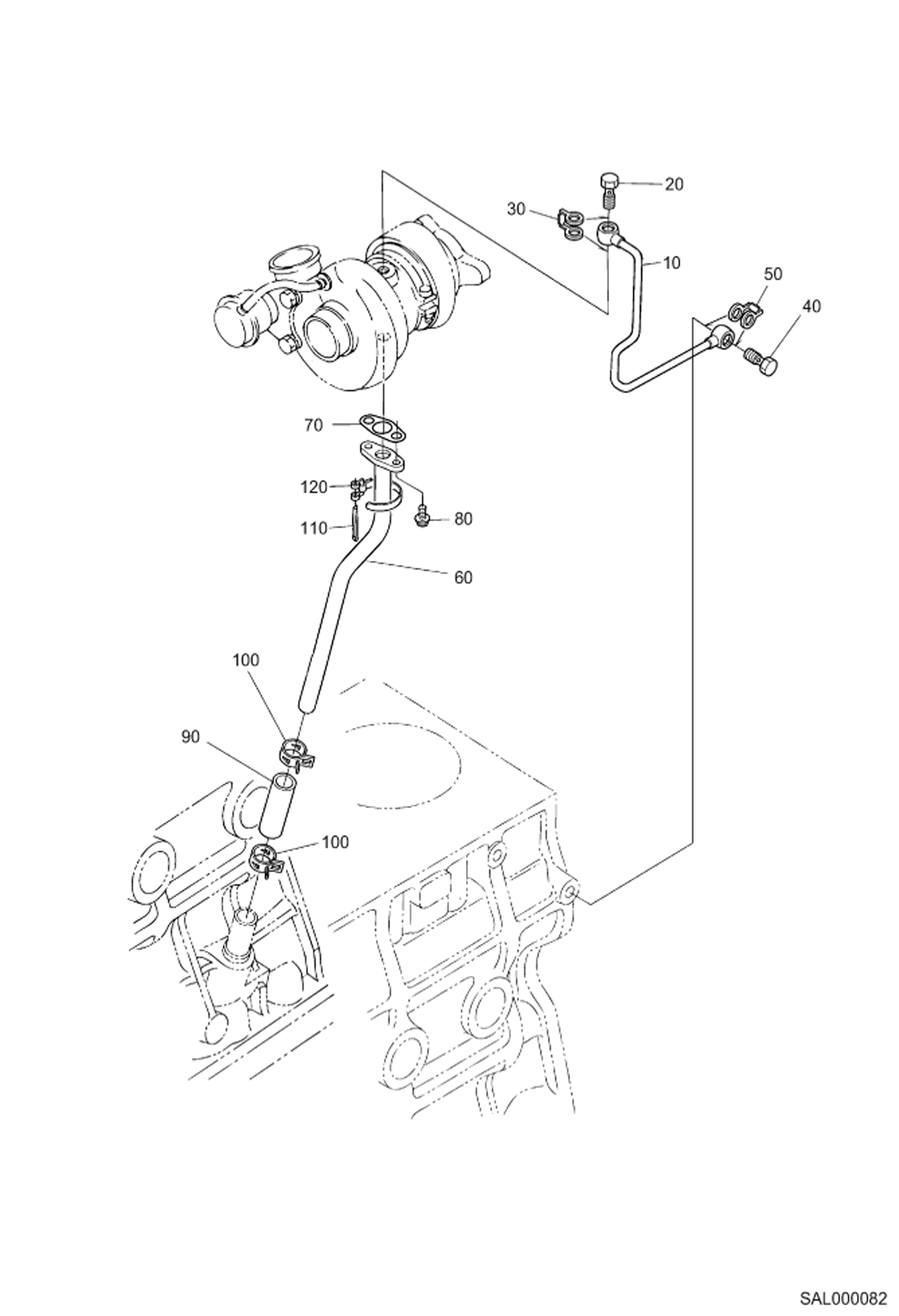

Запчасти Bobcat AL440 OIL PIPE (TURBOCHARGER) POWER UNIT

10

6689297

COMP. PIPE, OIL

20

6680900

BOLT Was 6680906 - A

30

7000642

WASHER, SEALING COPPER consists of 2 gaskets attached by a tab - Was 6685962 - B

40

7022765

BOLT, EYE Was 6680791 - A

50

6689331

GASKET

60

6689298

COMP. PIPE, OIL

70

6680570

GASKET Was 6685964 - A

80

29CM612

BOLT, FLANGED Was 6652762 - A

90

6689226

PIPE, OIL

100

6680903

CLAMP

110

PIN, BAND

120

6685601

CLAMP
