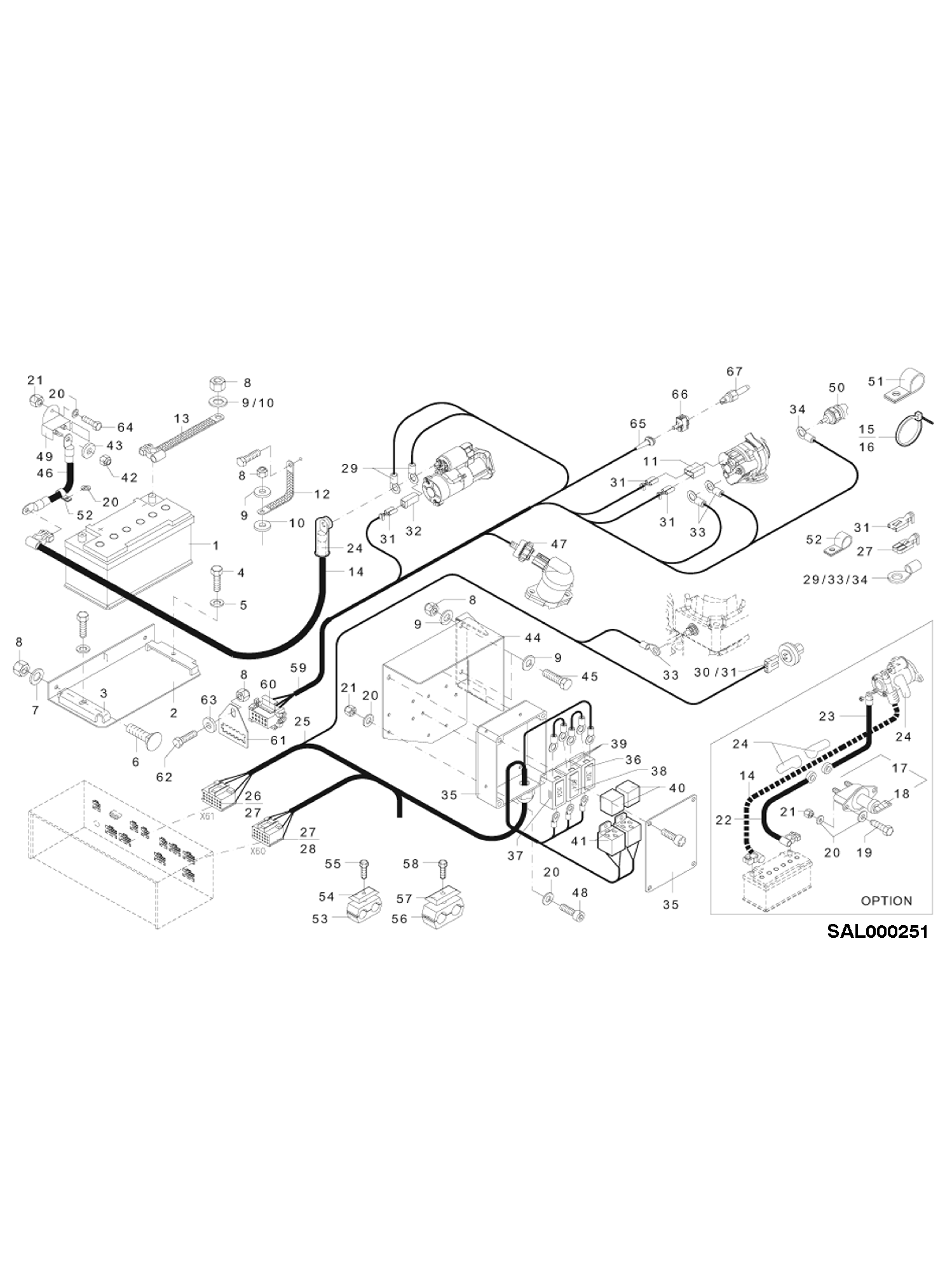

Запчасти Bobcat AL350 ENGINE ELECTRICITY AND BATTERY ELECTRIC INSTALLATION

1

5159650928

BATTERY

2

6451011002

BRACKET

3

6187505560

CLAMP STRAP

4

1008707019

BOLT

5

1343707057

WASHER

6

1027707124

BOLT

7

1290707020

WASHER

8

1212251013

NUT

9

1290707020

WASHER

10

1330620020

TOOTHED WASHER

11

5527661010

HOUSING (MALE)

12

5653246930

EARTH CABLE

13

5653246955

EARTH CABLE

14

0451040065

BATTERY CABLE

15

5653093560

BINDER

16

5350650280

BINDER

17

5522655660

SWITCH INTERRUPTER Includes Ref. 18

18

5522655651

KEY INTERRUPTER

19

1008707213

BOLT

20

1290707014

WASHER

21

1212251009

NUT

22

0410515066

BATTERY CABLE

23

0402262507

BATTERY CABLE - SWITCH

24

5050580450

RUBBER

25

0453840015

HARNESS, WIRE Was 6453840015 - A

26

5350249751

HOUSING (FEMALE)

27

5350249552

CONNECTOR

28

5350249753

CONNECTOR

29

5350249597

CABLE CONNECTOR

30

5350249576

HOUSING

31

5350249579

FEM TERMINAL

32

5350249507

HOUSING (MALE)

33

5350249600

CABLE CONNECTOR

34

5350241104

CABLE CONNECTOR

35

STARTER BOX Gewiss GW 44407

36

5050650421

FUSE 30 A

37

5050650452

FUSE 50 A

38

5050650489

FUSE 80 A

39

5050650450

HOLDER

40

5050247810

RELAY

41

5050247815

BRACKET RELAY

42

1210707011

NUT

43

1290707018

WASHER

44

6451007005

BRACKET

45

1008707124

BOLT

46

0451007010

BATTERY CABLE

47

5474010015

CONNECTOR MALE

47

5474010017

PIN

48

1045707213

BOLT

49

5050650420

CONTACT PLATE

50

OIL PRESSURE SWITCH

51

5000096800

HOSE CLAMP

52

5000136710

HOSE CLIP

53

5660199783

CLIP

54

5660200230

COVER PLATE

55

1007707319

BOLT

56

5660199766

HOSE CLIP

57

5660200220

COVER PLATE

58

1008707818

BOLT

59

6453840080

WIRE HARNESS

60

5350249691

CONNECTOR MALE

61

0457015075

BRACKET

62

1008707324

BOLT

63

1343707059

WASHER

64

1045707912

BOLT

65

5050650357

CAP

66

5050650355

HOUSING (MALE)

67

5411663474

TRANSMITTER, TEMP. Was 5411657101 - A
