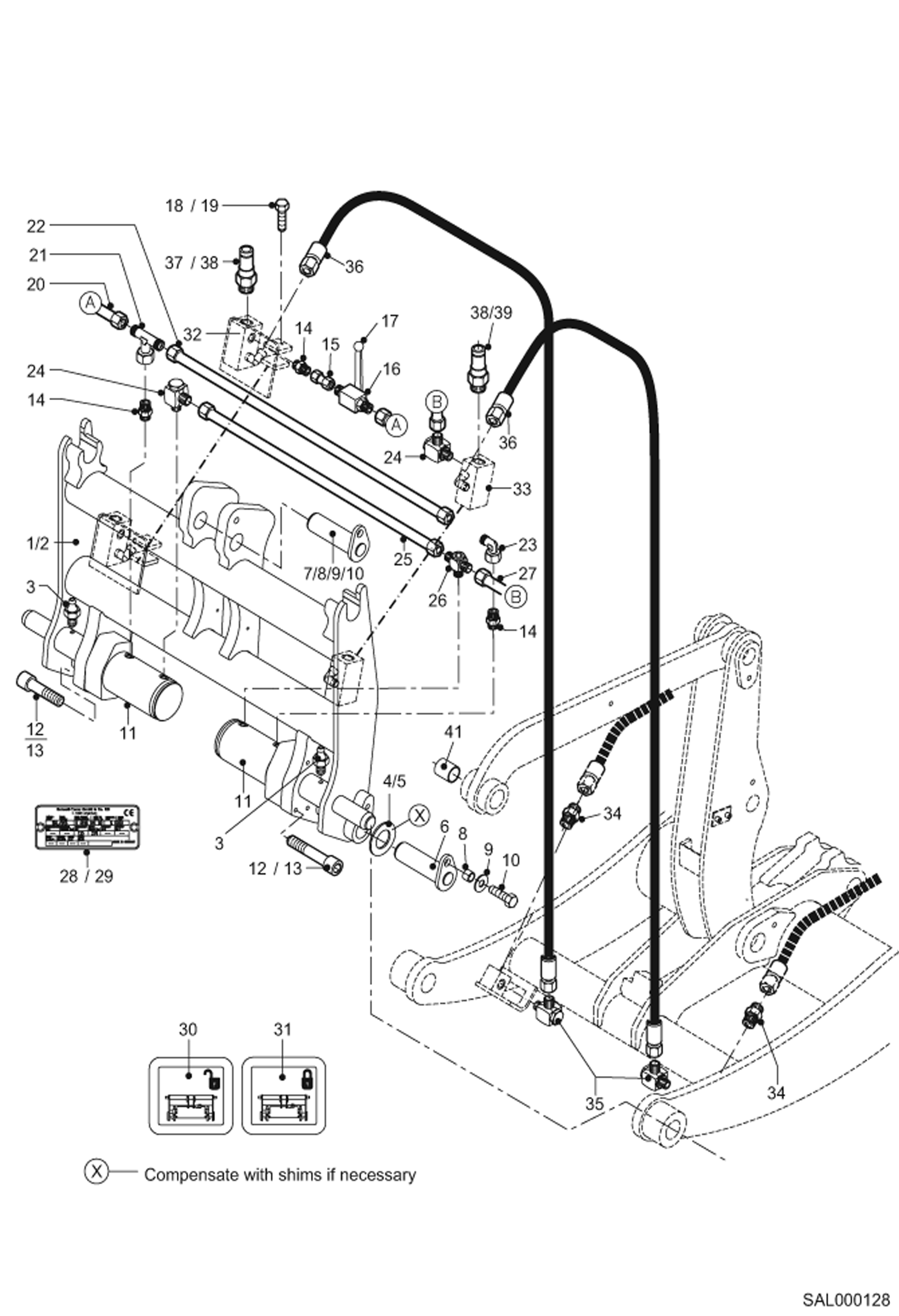

Запчасти Bobcat AL350 HYDRAULIC QUICK MOUNT HITCH HYDRAULIC INSTALLATION

1

6461604100

QUICK FIT DEVICE Includes Ref. 1 to 31

2

6461604103

QUICK M. HITCH FRAME Includes Ref. 32 + 33

3

1607003006

GREASE NIPPLE

4

1309412815

SHIM

5

1309412926

SHIM

6

6337103033

PIN

7

0145011120

PIN Was 6145011120 - A

8

0333023033

SPACER BUSHING

9

1343707061

WASHER

10

1008707529

BOLT

11

6502116100

HYDRAULIC CYLINDER See Illustration QUICK MOUNT HITCH CYLINDER/ SAL000175

12

1045707031

BOLT

13

1045707730

BOLT

14

1915000135

FITTING

15

0103723021

TUBING

16

5001609600

BALL TAP

17

5001207171

KEY

18

1008707213

BOLT

19

1210707009

NUT

20

0461604030

TUBING

21

1919000590

FITTING

22

0461604032

TUBING

23

1924000571

FITTING

24

1921000002

FITTING

25

0461604034

TUBING

26

1920000103

FITTING

27

0461604036

TUBING

28

- - -

NAME PLATE

29

1940000739

RIVET

30

5358609064

MARKING PLATE

31

5358609065

MARKING PLATE

32

6461604050

DISTRIBUTION RIGHT

33

6332806105

DISTRIBUTION LEFT

34

1915000759

FITTING

35

1926060157

FITTING

36

4460103359

HOSE

37

- - -

NAME PLATE

38

5000080001

COUPLING PLUG

39

5000080002

DUST CAP

41

0490607152

PROTECTION HOSE OPTION
