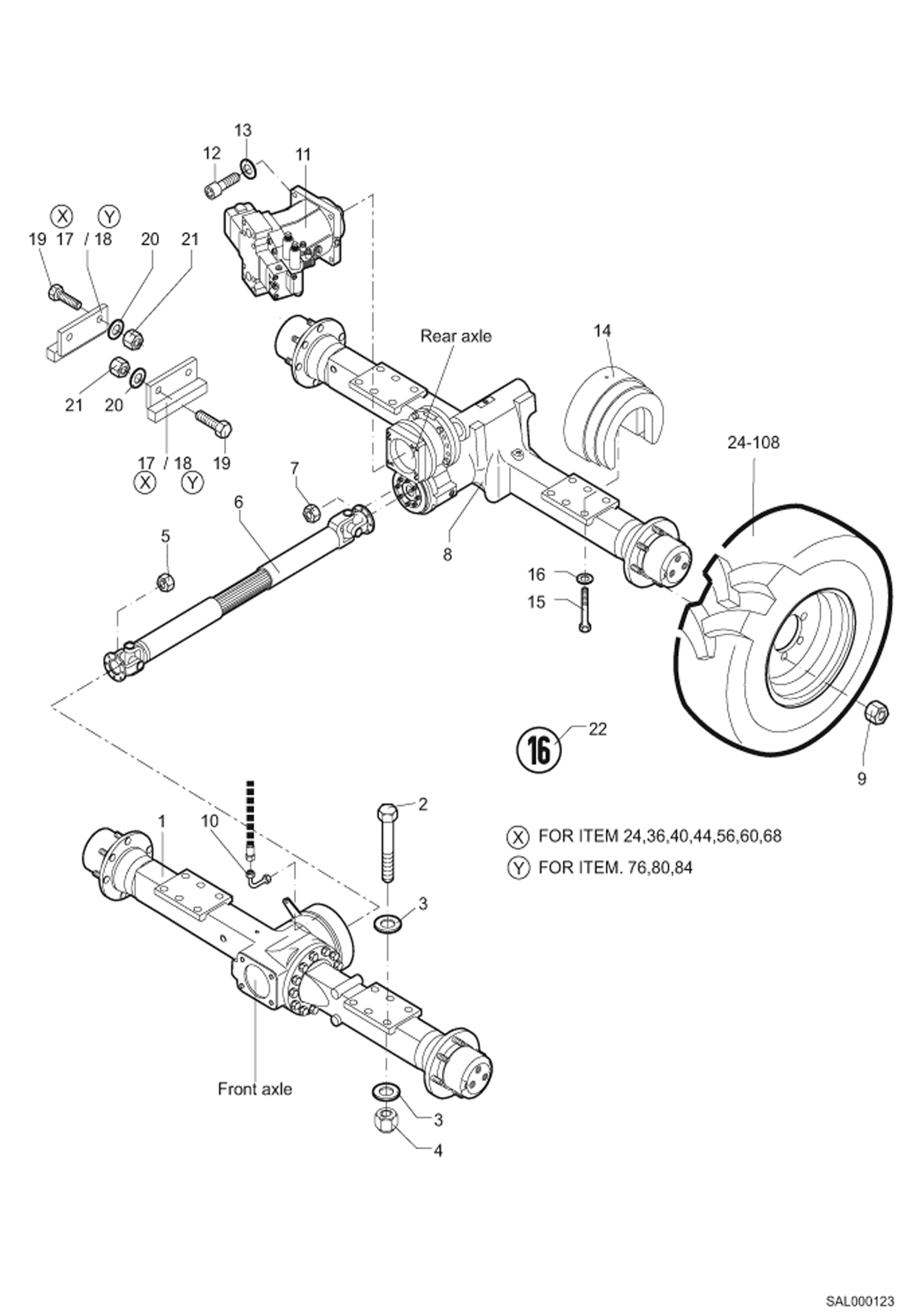

Запчасти Bobcat AL350 AXLE, TIRES DRIVE SYSTEM

1

5904661665

AXLE

2

1007707553

BOLT

3

1290707033

WASHER

4

1212251018

NUT

5

1214907013

NUT

6

5200661104

CARDAN SHAFT

7

1214907411

NUT

8

5904661670

AXLE

9

1270707618

NUT

10

5904660751

BRAKE LINE

11

5364664185

HYDR. MOTOR

12

1045707430

BOLT

13

1290707022

WASHER

14

6452219002

REAR AXLE WEIGHT

15

1008707241

BOLT

16

1343707065

WASHER

17

6460611002

OSCILLATING STOP

18

6461616002

OSCILLATING STOP

19

1007707830

BOLT

20

1343707061

WASHER

21

1212251014

NUT

22

0338616003

MARKING PLATE

24

6452290000

WHEEL 375/75 R20 XZSL; Includes Ref. 25 to 27

25

5153658416

TIRE 375/75 R20 XZSL

26

5307643528

RIM

27

5153632954

VALVE

28

6393793000

WHEEL CONTI 10PR 12,5-20MPT TL; Includes Ref. 29 to 31

29

5153660282

TIRE E=58 10PR 12,5-20MPT TL

30

5307656066

RIM

31

5153643505

VALVE

32

6393794500

WHEEL 10PR 12,5-20MPT TL; Includes Ref. 33 to 35

33

TIRE NLA - 12.5-20 TG32 MPT NYTL 10PR - Was 5153632150 - A

34

5307656066

RIM

35

5153643505

VALVE

36

6461795500

WHEEL 12.5 R20/16PRSPPG8MPT; Includes Ref. 37 to 39

37

5153661340

TIRE 12.5 R20/16PRSPPG8MPT

38

5307656066

RIM

39

5153643505

VALVE

40

6393795000

WHEEL R14.5-20 TL TG E58 10PR; Ref. 41 to 43

41

TIRE NLA - 14.5-20 TL TG10PR - Was 5153638700 - A

42

5307643528

RIM

43

5153643505

VALVE

44

6393795500

WHEEL DUNLOP14.5-20 TL 10TR TG32; Includes Ref. 45 to 47

45

TIRE NLA - 14.5-20 TL 10TR TG32 - Was 5153661127 - A

46

5307643528

RIM

47

5153643505

VALVE

48

6338994500

WHEEL MICHELIN 335/80 R18XM27 39BTL; Includes Ref. 49 to 51

49

5153658385

TIRE 335/80 R18XM27 139BTL

50

5307656032

RIM

51

5153643505

VALVE

52

6393793500

WHEEL MICHELIN 335/80 R20XM27141B TL; Includes Ref. 53 to 55

53

5153658387

TIRE 335/80 R20XM27 141B TL

54

5307656066

RIM

55

5153643505

VALVE

56

6461793000

WHEEL 335/80R20MPT70E; Includes Ref. 57 to 59

57

5153661310

TIRE 335/80R20MPT70E

58

5307656066

RIM

59

5153643505

VALVE

60

6393796000

WHEEL MICHELIN 375/75 R20XM27143B TL; Includes Ref. 61 to 63

61

5153644460

TIRE 375/75 R20XM27 143B TL

62

5307643528

RIM

63

5153643505

VALVE

64

6393794000

WHEEL DUNLOP 335/80 R20 EM SP T9 TL; Includes Ref. 65 to 67

65

5153660265

TIRE 335/80 R20 EM SP T9 TL

66

5307656066

RIM

67

5153643505

VALVE

68

WHEEL NLA - DUNLOP 365/80R20TL SPT9 - Ref. 69-71 - Was 6393796500 - A

69

5153661150

TIRE 335/80 R20 EM SP T9 TL

70

5307643528

RIM

71

5153643505

VALVE

72

6461793500

TIRE 133E CONTI 365/70 R18 MPT70; Includes Ref. 73 to 75

73

5153661300

RIM 133E CONTI 365/70 R18 MPT70

74

5307656032

RIM

75

5153643505

VALVE

76

6393797000

WHEEL DUNLOP 405/70 R20 SP T9 TL L; Includes Ref. 77 to 79

77

5153658393

TIRE 405/70 R20 SP T9 TL L

78

5307643515

RIM

79

5153643505

VALVE

80

6461794000

WHEEL 405/70R20MPT70E; Includes Ref. 77 to 79

81

5153661305

TIRE 405/70R20MPT70E

82

5307643515

RIM

83

5153643505

VALVE

84

6461794500

WHEEL MICHELIN 405/70 R20XM27 143B T; Includes Ref. 85 to 87

85

5153658391

TIRE MICHELIN 405/70 R20XM27 143B T

86

5307643528

RIM

87

5153643505

VALVE

88

WHEEL NLA - DUNLOP153 A2405/70R18EM TL - Ref. 89-97 - Order 5153660130 wheel, 5153643505 valve & 5307656041 rim - Was 6338996000 - A

89

5153660130

TIRE 153 A2 405/70R18EM TL

90

5307656041

RIM

91

5153643505

VALVE

92

6338993000

WHEEL 12.5-18 E91-2 MPT NYTL 8PR; Ref.93-95

93

5153632100

TIRE 12.5-18 E91-2 MPT NYTL 8PR

94

5307656032

RIM

95

5153643505

VALVE

96

6338997500

WHEEL DUNLOP 365/70R18TL SPT9; Includes Ref. 97 to 99

97

5153661145

TIRE 365/70R18TL SPT9

98

5307656032

RIM

99

5153643505

VALVE

100

6461795000

WHEEL D.16/70-20 EM E91/2 TL 10PR; Includes Ref. 101 to 103

101

5153643500

TIRE D.16/70-20 EM E91/2 TL 10PR

102

5307643515

RIM

103

5153643505

VALVE

104

5153661660

WHEEL

105

6338995000

WHEEL 15.5/55R18MPTPG7 134E 14PRTL; Includes Ref. 109 to 111

106

5153628250

TIRE 15.5/55r18mptpg7 134e 14prtl

107

5307656032

RIM

108

5153643505

VALVE
