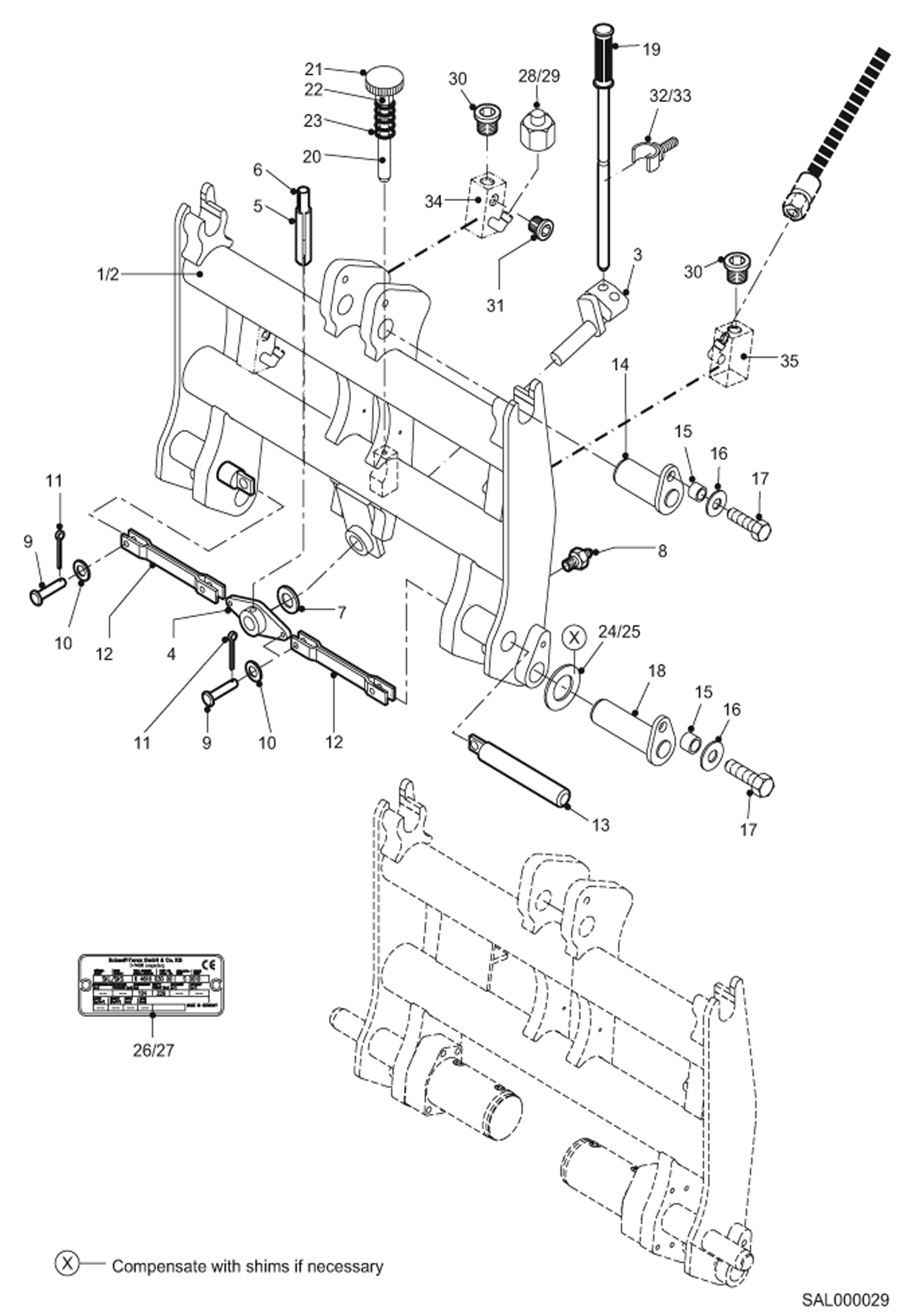

Запчасти Bobcat AL350 MECHANIC QUICK MOUNT HITCH MAIN FRAME

1

6461603000

QUICK FIT DEVICE CPL Includes Ref. 1 to 27

2

6461603003

QUICK M. HITCH FRAME Includes Ref. 34 + 35

3

6460603033

CONTROL LEVER

4

6337103040

LOCK

5

1380622242

PIN ROLL

6

1380622832

PIN ROLL

7

1309412125

WASHER

8

1607003006

GREASE NIPPLE

9

1360707030

PIN

10

1290707022

WASHER

11

1395707317

COTTER PIN

12

6337103036

FLAP

13

6337103030

PIN

14

0145011120

PIN Was 6145011120 - A

15

0333023033

SPACER BUSHING

16

1343707061

WASHER

17

1008707529

BOLT

18

6337103033

PIN

19

6333203016

LEVER

20

0336103050

THREADED ROD

21

1227707009

KNURLED NUT

22

1210707009

NUT

23

5064607200

SPRING

24

1309412815

SHIM

25

1309412926

SHIM

26

--

NAME PLATE

27

1940000739

RIVET

28

1911060156

UNION NUT

29

1912060356

PLUG

30

1912060105

PLUG

31

1912060102

PLUG

32

5660199782

PIPE CLIP OPTION

33

1103707324

BOLT OPTION

34

6332806104

DISTRIBUTION RIGHT WELDET

35

6332806105

DISTRIBUTION LEFT WELDET
