Запчасти Bobcat AL350 SEAT MAIN FRAME

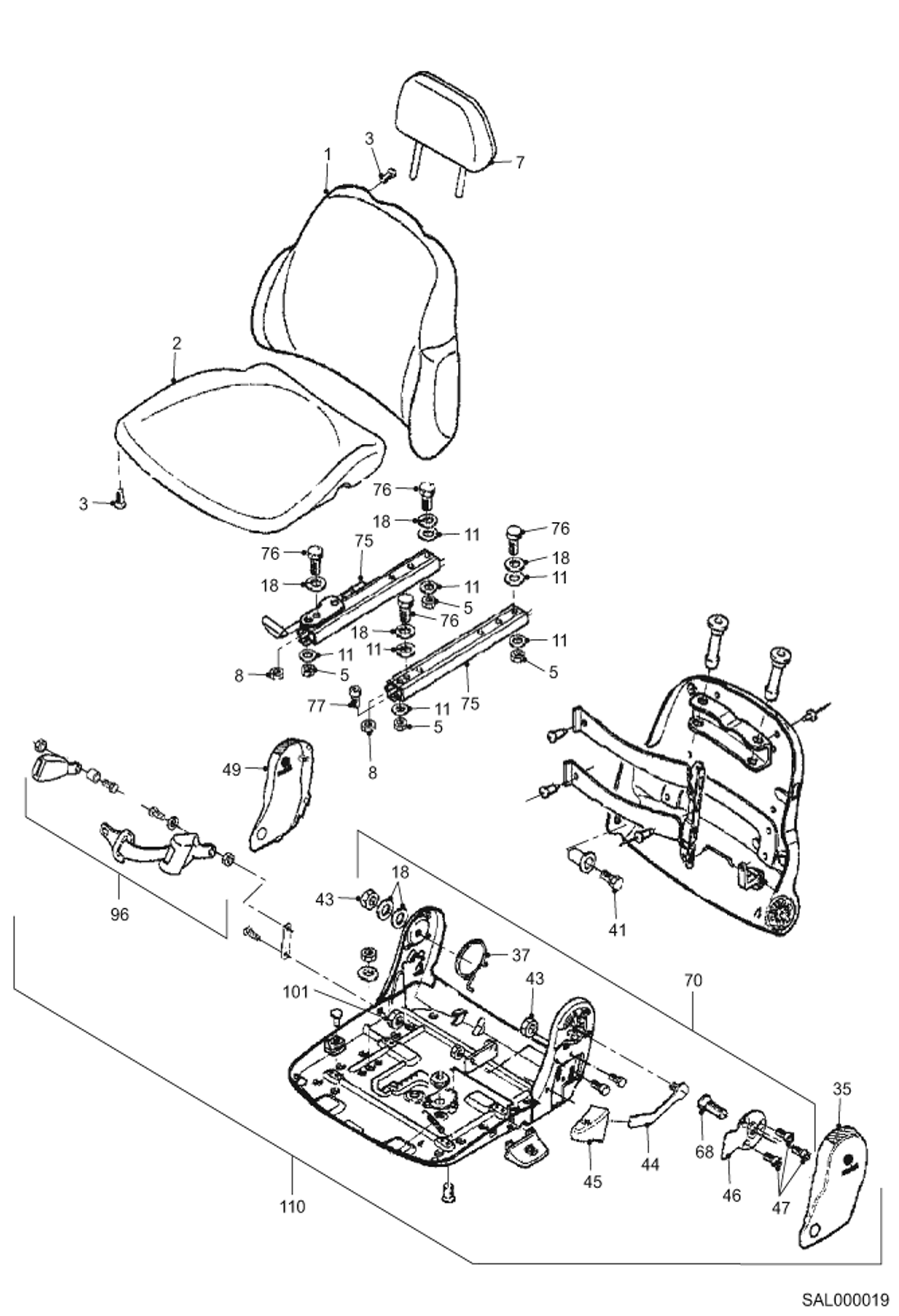

Схема запчастей Bobcat AL350 - SEAT MAIN FRAME

Артикул

Название

Примечание

Количество

1

5305670235

CUSHION, BACK OF SEAT

2

5305670236

CUSHION, SEAT

3

5305670026

BOLT

5

5305670106

NUT

7

5305670007

HEADREST

8

1210707011

NUT

11

5305670104

WASHER

18

5305670200

WASHER

35

5305670033

COVER Was 5305670033 - A

37

5305670244

SPRING

41

1008707019

BOLT

43

5305655472

NUT

44

5305670035

LEVER

45

5305670036

HANDLE

46

5305670037

ADAPTER PLATE

47

5305670038

BOLT

49

5305670282

COVER RIGHT Was 5305670039 - A

68

5305670152

BOLT

70

5305670247

ADJUSTING, BACK REST Includes Ref. 18 + 37 + 41 to 47 + 66 + 68

75

5305670241

ADJUST. RAIL

76

1008707817

BOLT

77

5305670234

BOLT

96

5305670217

LAP BELT

101

5305661676

NUT

110

5305661730

OPERATOR'S SEAT See Illustration SEAT - SUSPENSION/ SAL000020 Includes Ref. 1 to 93

Выбрано товаров: 25
