Запчасти Bobcat AL350 AIR CONDITIONER MAIN FRAME

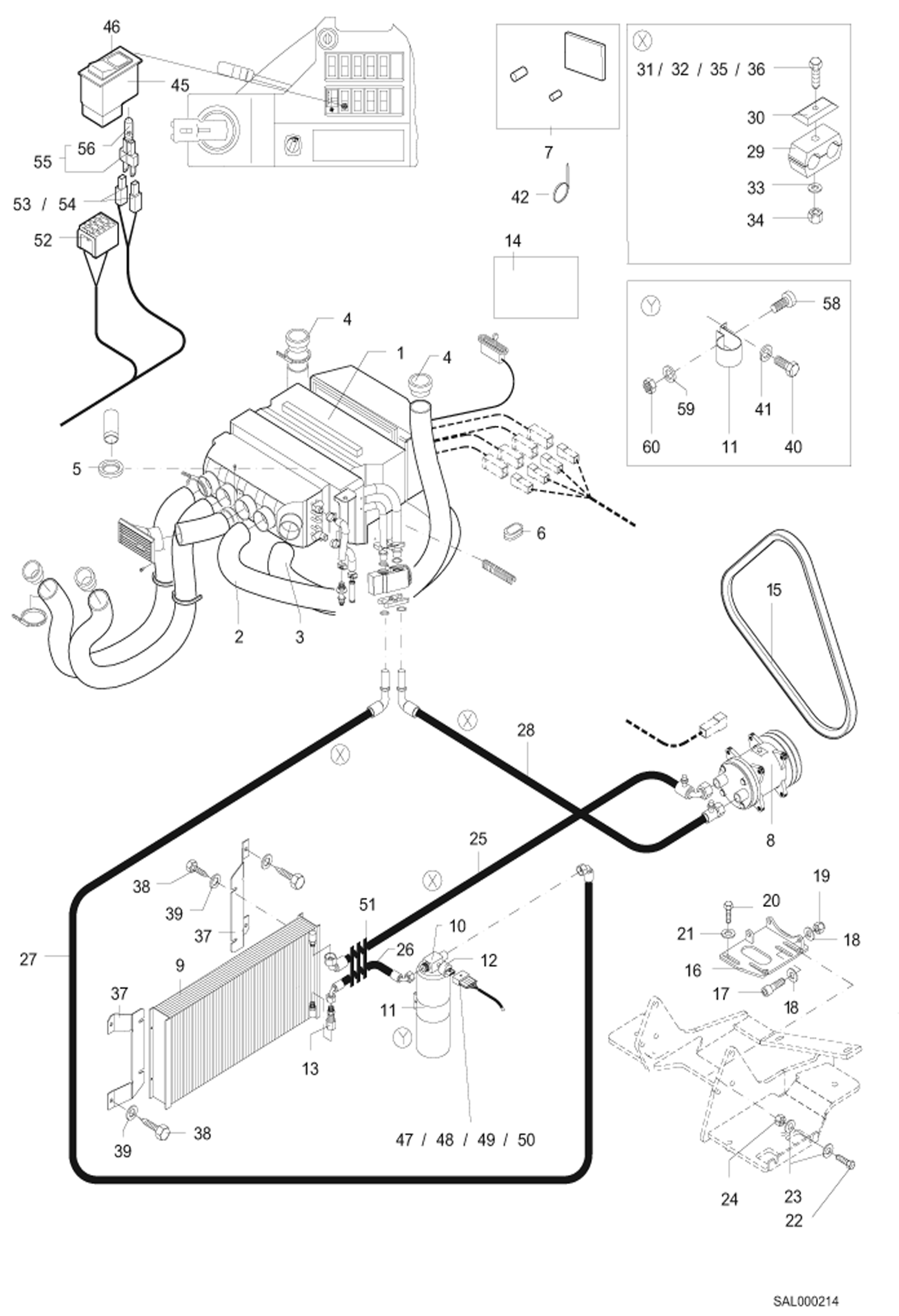

Схема запчастей Bobcat AL350 - AIR CONDITIONER MAIN FRAME

Артикул

Название

Примечание

Количество

1

5388665399

AIR CONDITIONER

2

5388665542

HOSE

3

5388665543

HOSE

4

5388665478

REDUCTION PIECE

5

5388665544

SEAL RING

6

5388665545

AIR STOP

7

5388665540

MOUNTING KIT

8

5169001018

COMPRESSOR

9

5169001017

CONDENSATOR

10

5388662731

FILTER

11

5388662855

FILTER SUPPORT

12

5388661135

PRESSURE SWITCH PRIMARY

13

5388665521

FITTING

14

5388661117

MARKING PLATE

15

1490953958

V-BELT

16

6453281004

BRACKET

17

1045707324

BOLT

18

1290707020

WASHER

19

1212251013

NUT

20

1008707124

BOLT

21

1343707059

WASHER

22

1008707919

BOLT

23

1307707018

WASHER

24

1210707011

NUT

25

5388661149

HOSE FROM COND. TO COMPR.

26

5388662932

HOSE FROM COND.TO FILTER

27

5388665398

HOSE FROM FILTER TO EVAPORATOR

28

5388665397

HOSE FROM EVAPORATOR TO COMP.

29

5660199783

CLIP

30

5660200230

COVER PLATE

31

1007707319

BOLT

32

1007707919

BOLT

33

1343707057

WASHER

34

1212251011

NUT

35

1007707620

BOLT

36

1007707120

BOLT

37

6453281012

BRACKET

38

1109707742

BOLT

39

1290707014

WASHER

40

1008707612

BOLT

41

1343707055

WASHER

42

5653093560

BINDER

45

5050651384

SWITCH INTERRUPTER

46

5358650383

DECAL SYMBOL

47

5350249681

HOUSING (MALE)

48

5350249346

GASKET

49

5350249345

GASKET

50

5350249673

CONTACT

51

5000068300

WIRING HARNESS

52

5050650225

HOUSING

53

5350246805

TERMINAL FEMALE

54

5350249536

HOUSING HOUSING (FEMALE)

55

5050650226

LAMP

56

1813000021

ROUND BULB

58

5388662856

BOLT

59

5388662623

WASHER

60

5388662787

NUT

Выбрано товаров: 57
