Запчасти Bobcat AL350 CAB-GLASSES MAIN FRAME

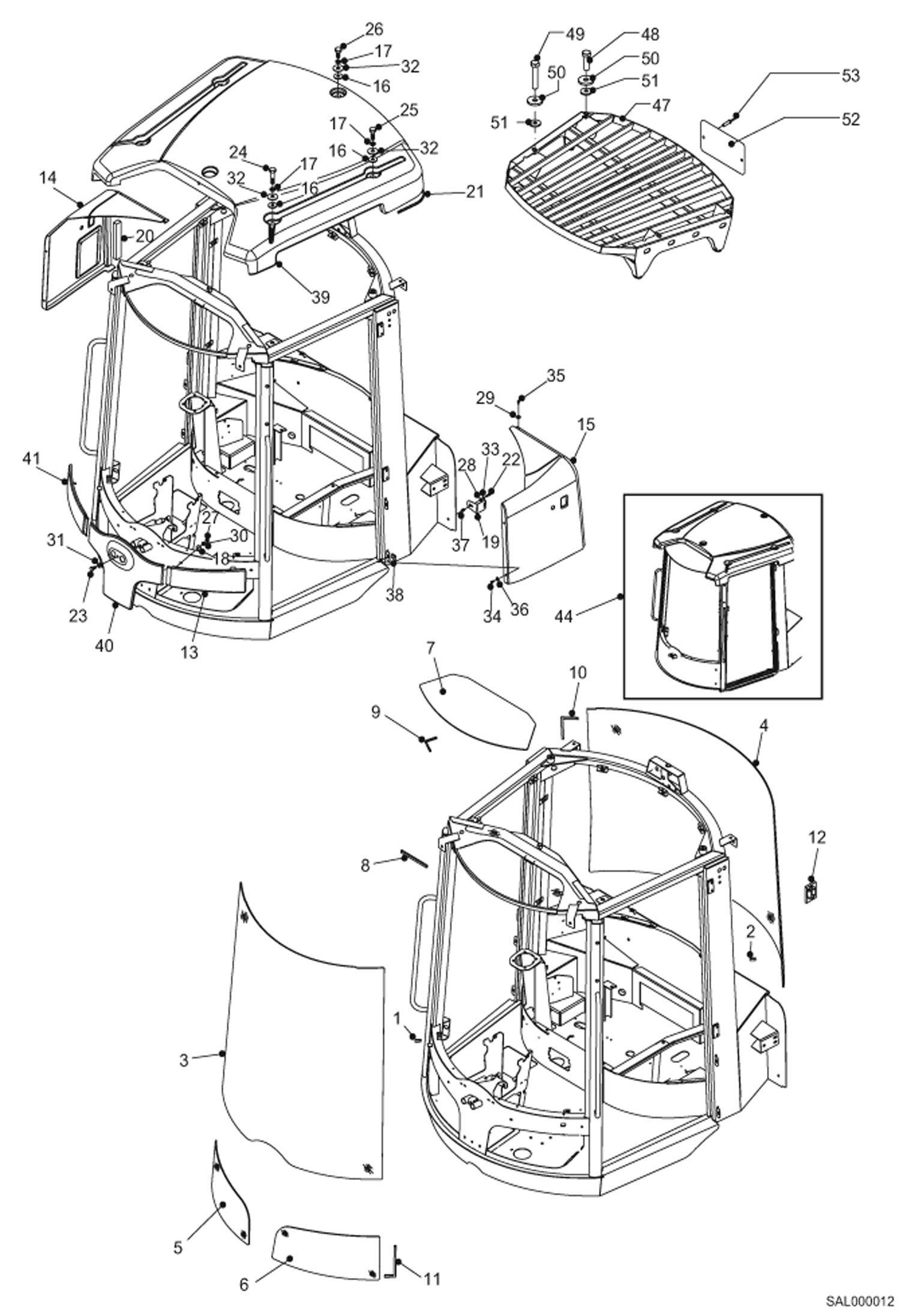

Схема запчастей Bobcat AL350 - CAB-GLASSES MAIN FRAME

Артикул

Название

Примечание

Количество

1

5388665506

DISTANCE SLEEVE

2

5388665507

DISTANCE SLEEVE

3

5388665003

PANE

4

5388662999

REAR WINDOW

5

5388665508

PANE

6

5103661359

WINDOW Was 5388665509 - A

7

5388665511

PANE

8

5388665512

SEAL

9

5388665513

SEAL

10

5388665514

SEAL

11

5388665515

SEAL

12

5388665392

GLUE KIT

13

5388665516

COVERING

14

5388665401

COVERING

15

5388665402

COVERING

16

5388665189

WASHER

17

5388665190

WASHER

18

5388665327

WASHER

19

5388665517

BRACKET

20

5388665518

SEAL

21

5388665186

SEAL

22

1062707213

BOLT

23

5388665173

BOLT

24

1123311041

STUD

25

5388665519

BOLT

26

5388665520

BOLT

27

5388665072

NUT

28

1290707014

WASHER

29

5388662053

WASHER

30

5388662925

WASHER

31

1307707018

WASHER

32

5388665084

WASHER

33

5388665266

WASHER

34

5388665426

BOLT

35

5388665410

BOLT

36

5388662047

WASHER

37

5388665211

NUT

38

5388662687

CLIP

39

5388665073

ROOF WHITE

40

5388665411

COVERING

41

5388665412

COVERING

44

5388661145

OPERATOR'S CAB CPL.

47

5388664057

TOP GUARD OPTION

48

BOLT

49

BOLT

50

5388662079

WASHER

51

WASHER

52

- -

NAME PLATE

53

1940000739

RIVET

Выбрано товаров: 49
