Запчасти Bobcat AL350 ENGINE COVER MAIN FRAME

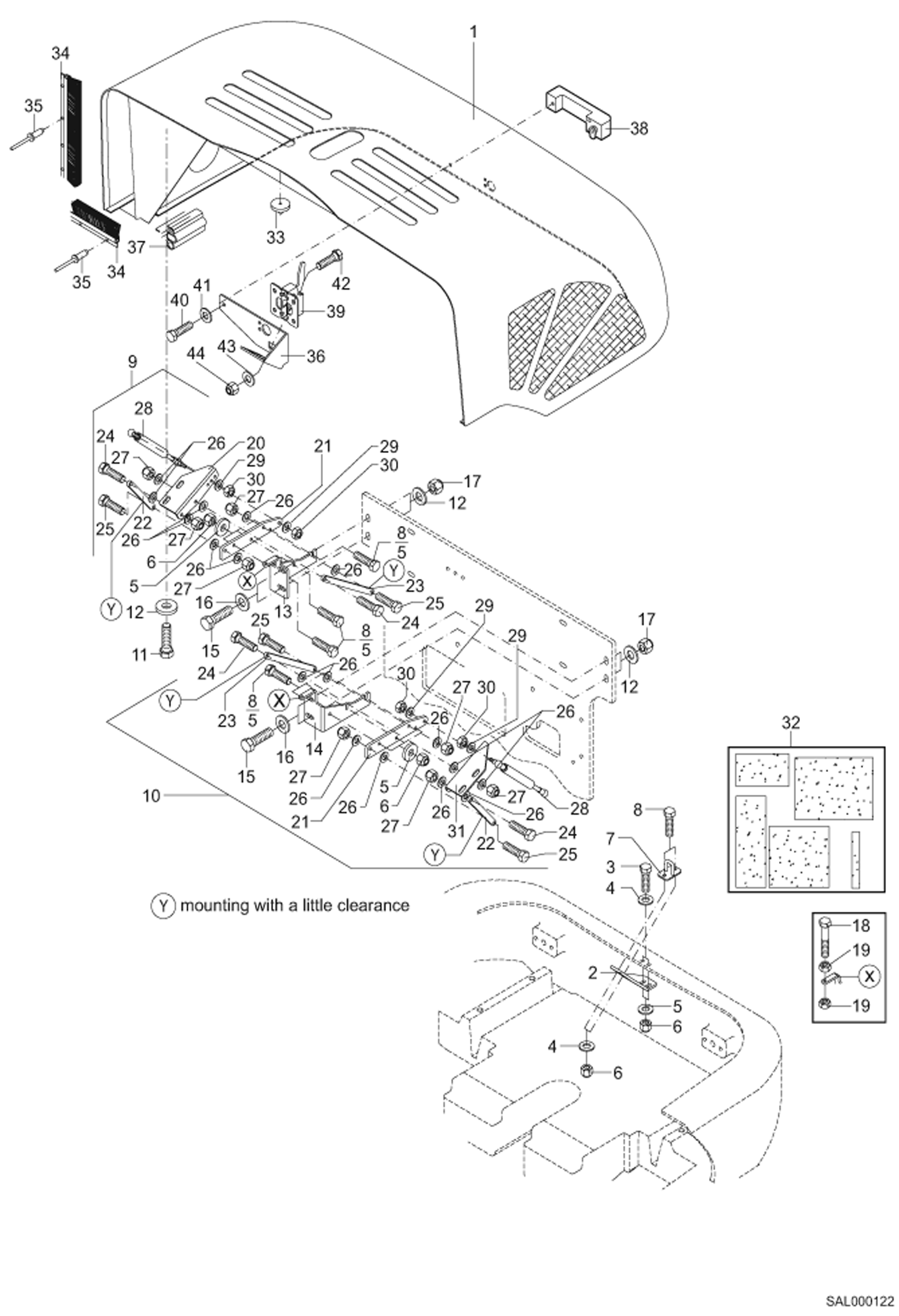

Схема запчастей Bobcat AL350 - ENGINE COVER MAIN FRAME

Артикул

Название

Примечание

Количество

1

5529020088

ENGINE COVER

2

0463519259

BRACKET

3

1069907019

BOLT

4

1290707018

WASHER

5

1343707057

WASHER

6

1212251011

NUT

7

5354604338

COTTER

8

1008707618

BOLT

9

0451019030

JOINT CPL. RIGHT Includes Ref. 20 to 30

10

0451019031

JOINT CPL. LEFT Includes Ref. 21 to 31

11

1008707923

BOLT

12

1343707059

WASHER

13

0451019038

ANGLE RIGHT

14

0451019039

ANGLE LEFT

15

1008707424

BOLT

16

1290707020

WASHER

17

1212251013

NUT

18

1007707014

BOLT

19

1210707009

NUT

20

0451019036

ANGLE RIGHT

21

0451019032

BRACKET

22

0451019033

FLAP

23

0451019034

FLAP

24

1019707718

BOLT

25

1019707818

BOLT

26

1290707020

WASHER

27

1212251011

NUT

28

5696636260

GAS PRESSURE SPR.

29

1290707018

WASHER

30

1210707011

NUT

31

0451019037

ANGLE LEFT

32

LINING SET

33

5529030002

CLIP

34

5354605600

SEAL BRUSH

35

1940000939

RIVET

36

6451019048

BRACKET

37

7025098

SEAL, BULK/MTR - A

38

5354604442

PLASTIC HANDLE

39

5354604335

HOOD LATCH

40

1008707018

BOLT

41

1343707055

WASHER

42

1008707618

BOLT

43

1290707018

WASHER

44

1212251011

NUT

Выбрано товаров: 44
