Запчасти Bobcat AL350 FUEL TANK MAIN FRAME

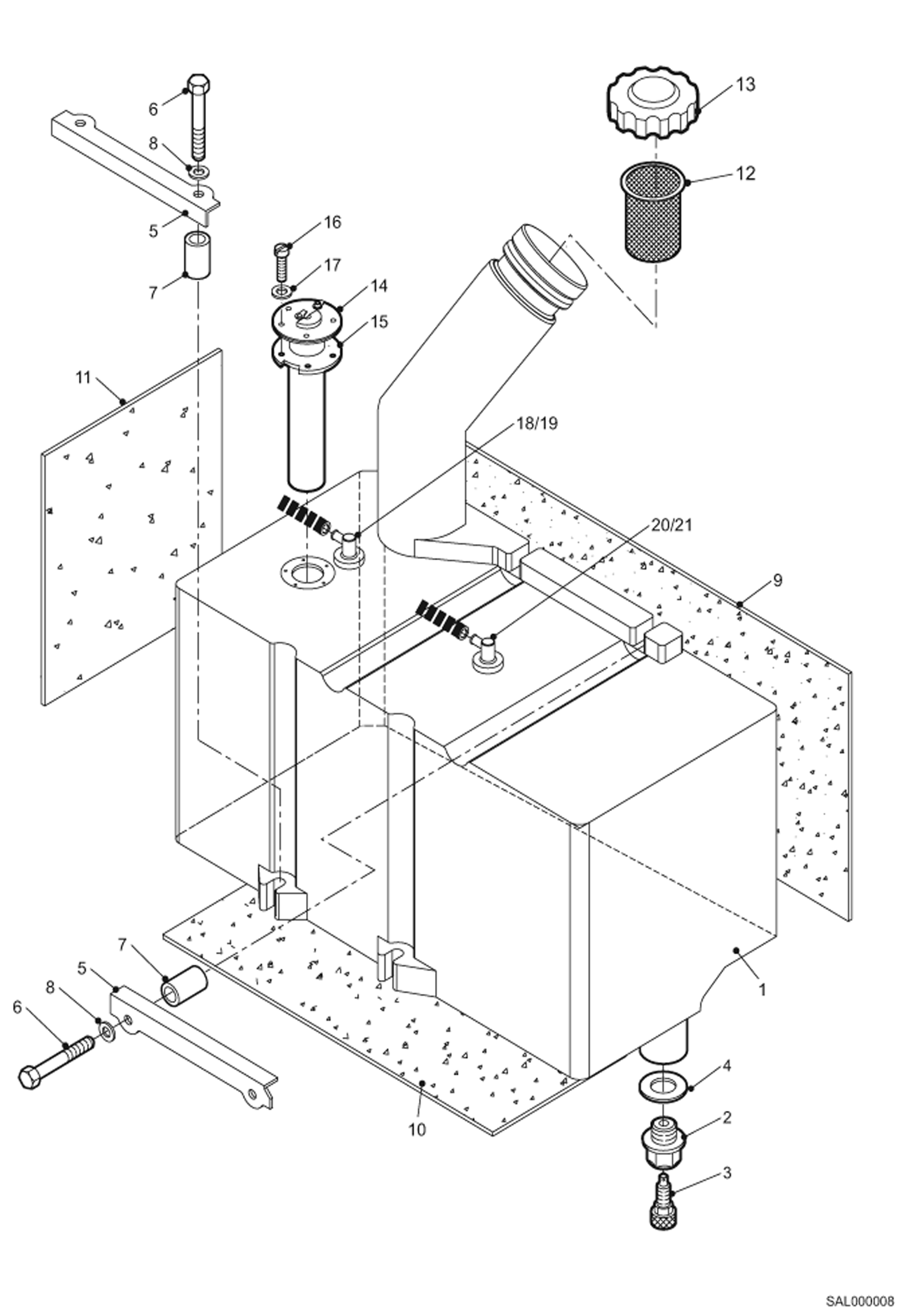

Схема запчастей Bobcat AL350 - FUEL TANK MAIN FRAME

Артикул

Название

Примечание

Количество

1

5267010034

FUEL TANK

2

0157514025

PLUG

3

5430583070

BLEEDING VALVE

4

5060508010

SEAL RING

5

6336414110

BRACKET

6

1007707824

BOLT

7

0336414112

DISTANCE SLEEVE

8

1307707020

WASHER

9

0451014002

MAT

10

0451014003

MAT

11

0461514004

MAT

12

5051252620

INLET STRAINER

13

5051252500

CAP

14

5755586625

TRANSMITTER

15

5755586619

SEAL

16

1041707909

PAN HEAD SCREW

17

1290707012

WASHER

18

5267010040

CONNECTION

19

5267010054

RUBBER

20

5267010011

FITTING WITH O-RING Includes Ref. 21

21

1970956673

O-RING

Выбрано товаров: 21
