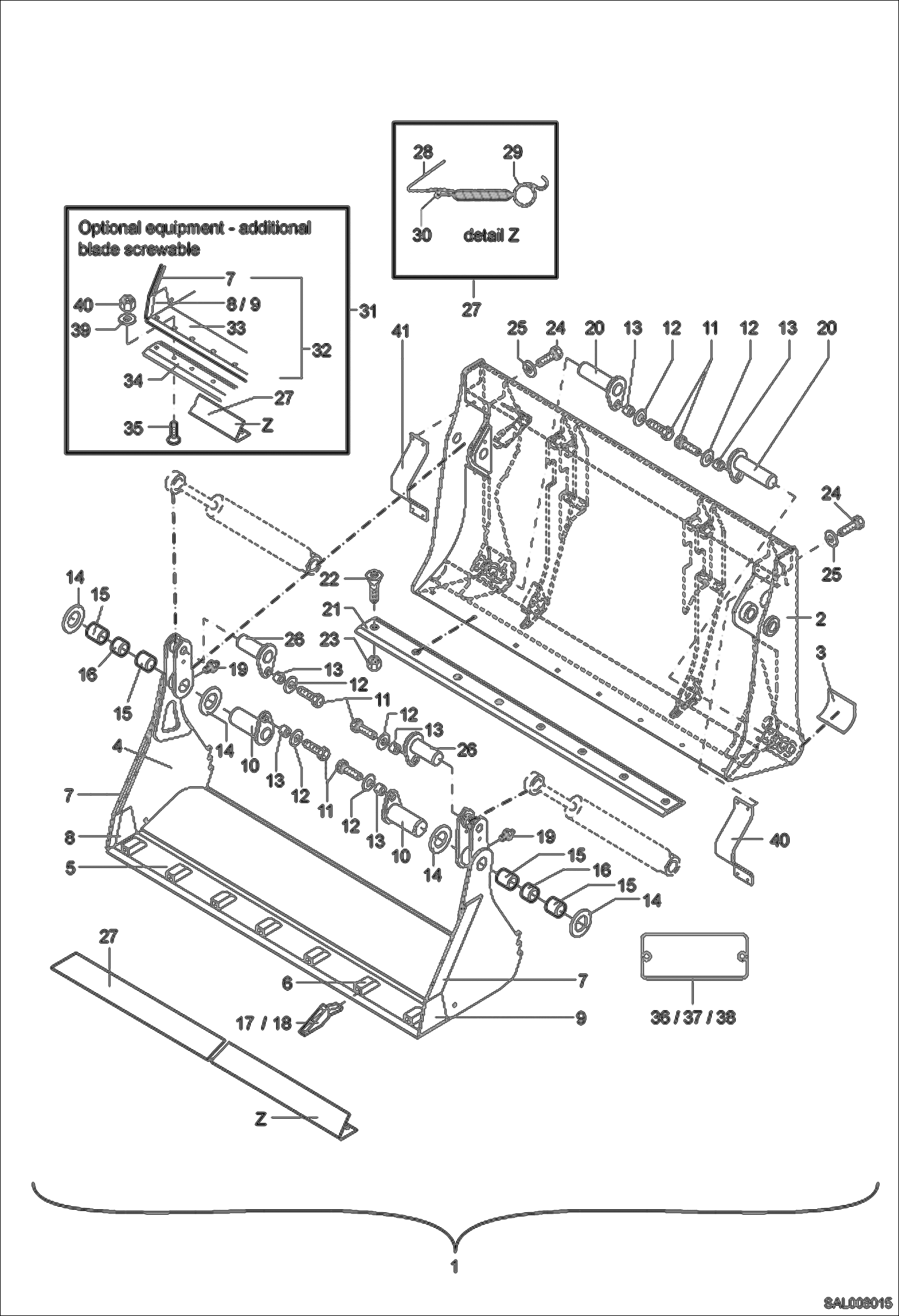

Запчасти Bobcat AL350 4 IN 1 SHOVEL Навесное оборудование

1

6323000000

UNI-SHOVEL CPL. W/Ref. 2-27

2

6323001001

REAR SHOVEL CPL. W/Ref. 3

3

0323001025

SHOE, SKID

4

0323002001

SHOVEL, FRONT CPL. W/Ref. 5-9

5

6338901105

CUTTING EDGE W/Ref. 6

6

5455204900

SLEEVE

7

6323002009

SIDE-STRIP

8

6323002010

CUTTING EDGE RIGHT

9

6323002013

CUTTING EDGE LEFT

10

0333023030

PIN

11

1008707529

BOLT M 12X25

12

1343707061

WASHER 13

13

0333023033

SPACER BUSHING

14

1309412725

SHIM

15

0159903056

BUSHING

16

6366203007

BUSHING

17

5455204800

TOOTH

18

5455700096

TOOTH CUP Was 5455205000 - A

19

1608003010

GREASE NIPPLE

20

0157709042

PIN

21

0323003010

CUTTING EDGE

22

1062707036

BOLT M14X40

23

1212251015

NUT M 14

24

1008707018

BOLT M 6X20

25

1343707057

WASHER

26

0366204110

PIN

27

6452201030

TOOTH PROTECTION CPL. W/Ref. 29-31

28

TOOTH PROTECTION

29

5249001010

SPRING

30

1395707827

COTTER PIN Was 5249001011 - A

31

6323190000

UNI-SHOVEL CPL. W/Ref. 2, 7-16, 19-30, 32-39

32

6323102101

FRONT SHOVEL CPL. W/Ref. 7-9, 33

33

0452202003

CUTTING EDGE

34

0452202002

BOLT-ON CUTTING EDGE

35

1062707236

BOLT M 14X50

36

NAME PLATE

37

1940000739

RIVET 4,8X10,2

38

1290707025

WASHER B 15

39

1212251015

NUT M 14

40

0323003015

BRACKET

41

0323003016

BRACKET
