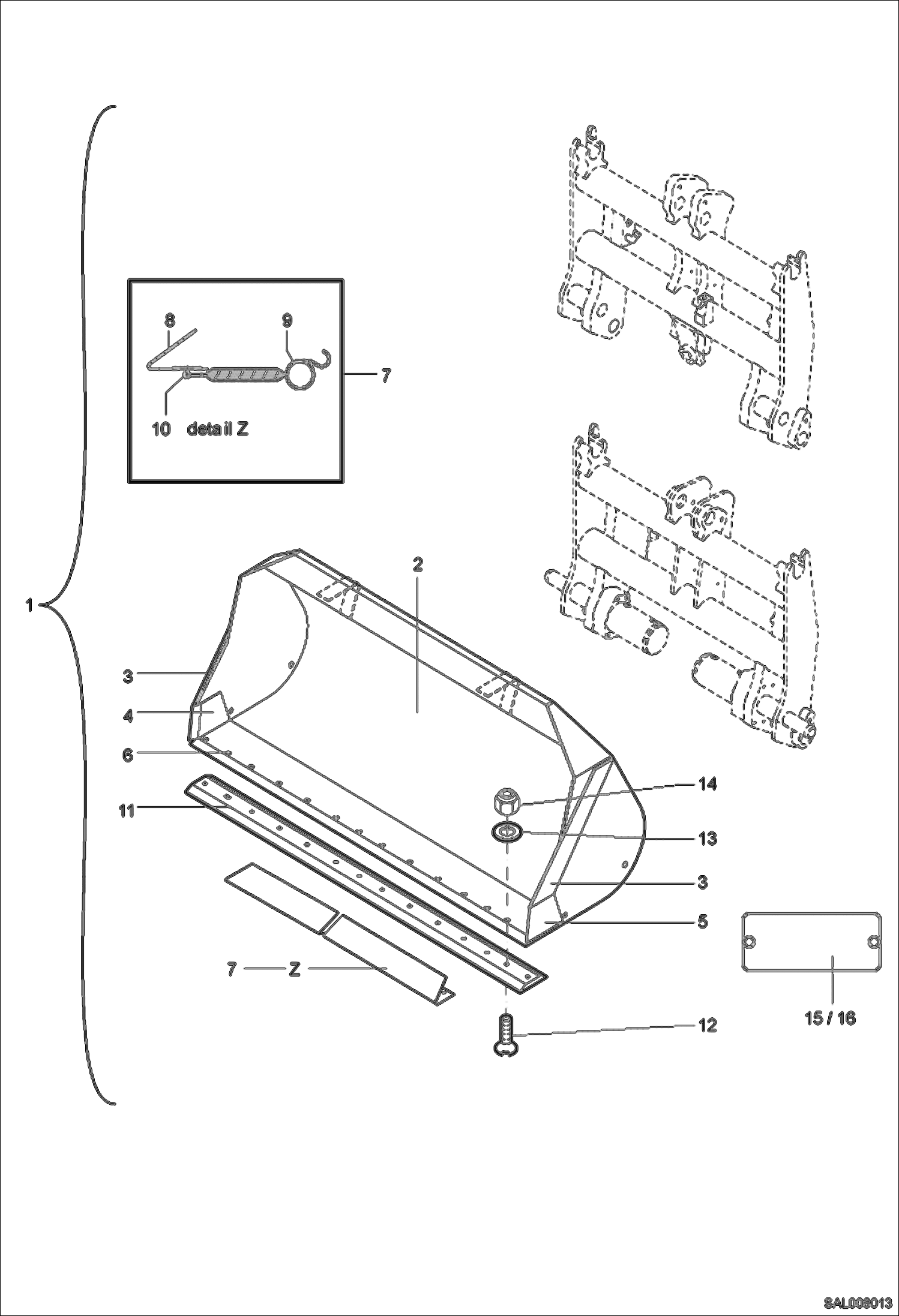

Запчасти Bobcat AL350 LIGHT MATERIAL BUCKET 1850mm Quickly Releasable Навесное оборудование

1

6452207000

LIGHT WEIGHT SHOVEL CPL W/Ref. 2-15

2

0452207001

SHOVEL, LIGHT WEIGHT W/Ref. 3-6

3

6397201004

SIDE-STRIP

4

0451201023

CUTTING EDGE RIGHT

5

0451201024

CUTTING EDGE LEFT

6

0452202003

CUTTING EDGE

7

6452201030

TOOTH PROTECTION CPL. W/Ref. 8-10

8

TOOTH PROTECTION

9

5249001010

SPRING

10

1395707827

COTTER PIN Was 5249001011 - A

11

0452202002

BOLT-ON CUTTING EDGE

12

1062707236

BOLT M 14X50

13

1290707025

WASHER B 15

14

1212251015

NUT M 14

15

NAME PLATE

16

1940000739

RIVET 4,8X10,2
