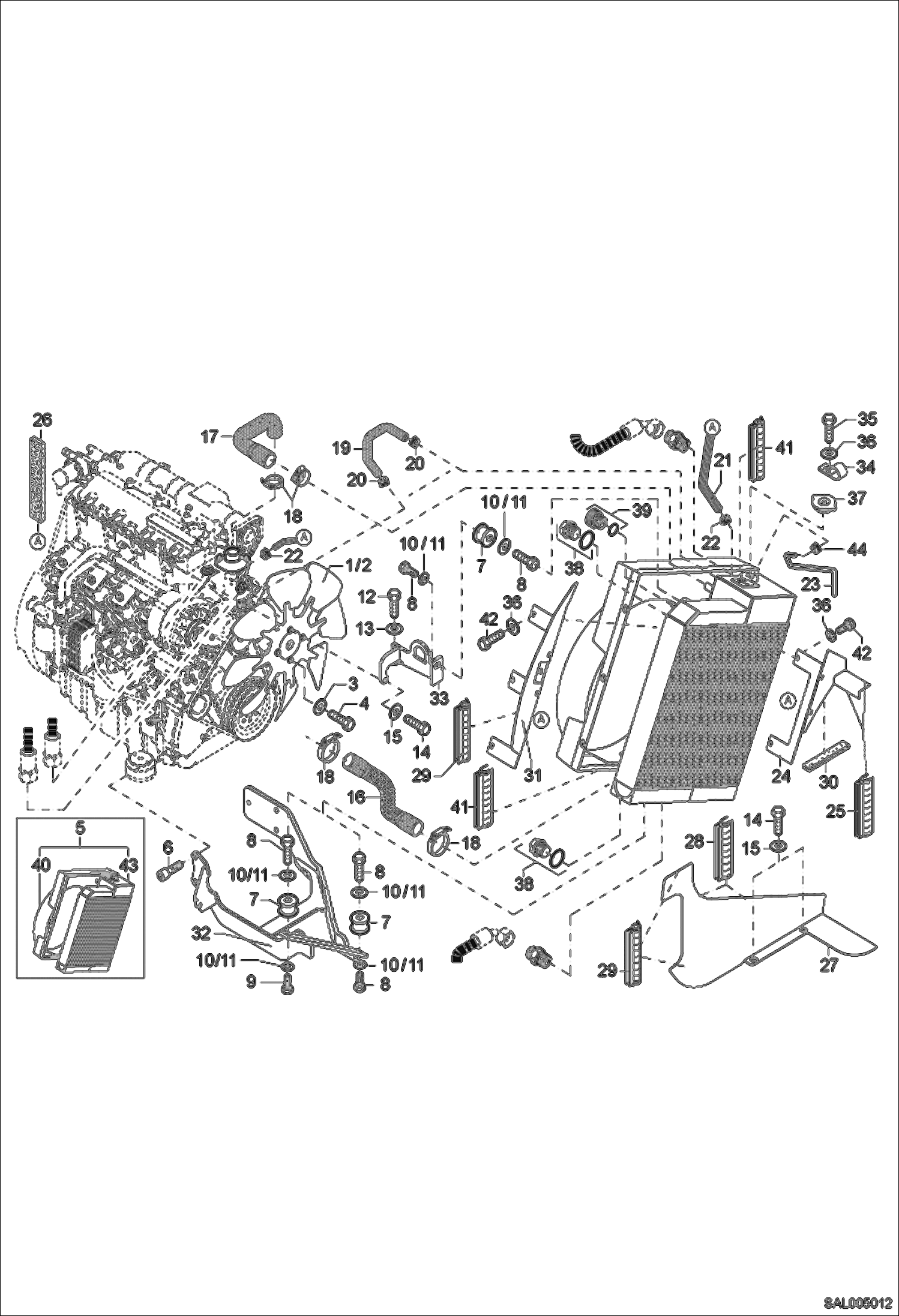

Запчасти Bobcat AL350 COMBINED COOLER POWER UNIT

1

0452015312

FLANGE

2

5081657511

FAN

3

1007707719

BOLT

4

1290707018

WASHER 8,4

5

5010661100

OIL WATER COOLER

6

1045977536

BOLT M 14X65

7

BEARING NLA - Was 5101290966 - A

8

1008707923

BOLT M10X25

9

1007707424

BOLT M 10X40

10

1343707059

WASHER

11

1307707020

WASHER 10,5

12

1007707231

BOLT M 12X80

13

1343707061

WASHER 13X30X6

14

1008707018

BOLT

15

1343707057

WASHER 8,4

16

5803655655

HOSE

17

5803655656

HOSE

18

5660095305

HOSE CLIP

19

0452015339

HOSE

20

5660199200

HOSE CLIP 20 - 32

21

5803277008

HOSE

22

5603320320

HOSE CLIP

23

4035107000

HOSE

24

0452015350

PLATE

25

5354600028

SEALING SECTION

26

5354640120

RUBBER

27

0452015352

PLATE

28

7023313

SEALING SECTION - A

29

5354600030

SEALING SECTION

30

5354640105

NEOPRENE STRIP

31

0452015353

PLATE

32

0452015361

COOLER BRACKET

33

0452015346

BRACKET

34

5000210455

HOSE CLIP

35

1008707018

BOLT

36

1290707018

WASHER

37

5010663195

COOLER CAP

38

1150201615

PLUG

39

5010663038

SIGHT GAUGE

40

5010663196

VENTILATION BOX

41

5010663197

SEALING SECTION

42

1008707018

BOLT M8X20

43

5010663198

COMBINED COOLER

44

5603320317

CLIP
