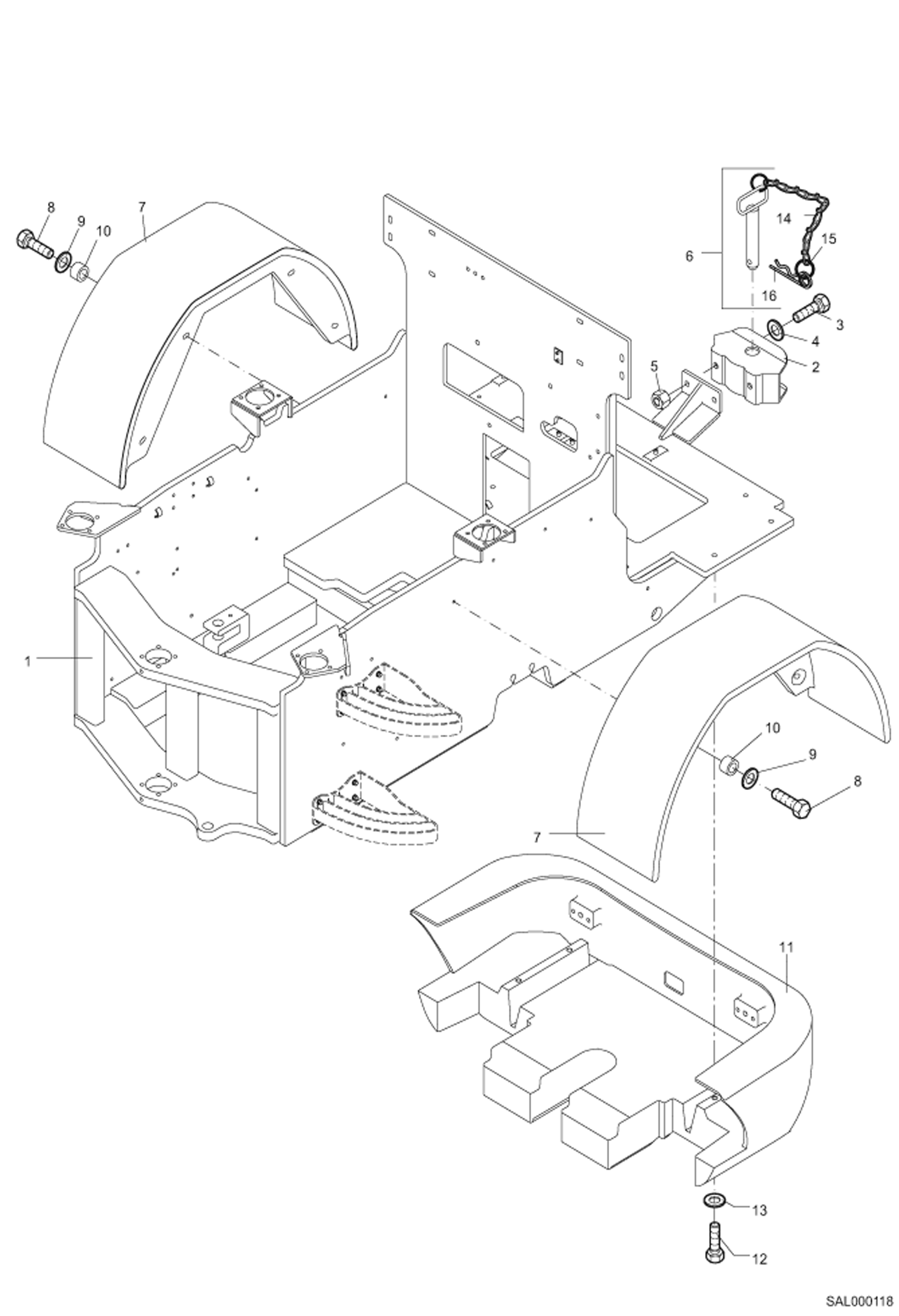

Запчасти Bobcat AL350 REAR CHASSIS, MUD GUARD MAIN FRAME

1

6452005001

REAR CHASSIS CPL.

2

0454006026

TRAILER COUPLING

3

1008707136

BOLT

4

1343707063

WASHER

5

1212251015

NUT

6

5603620631

PIN

7

5267010032

MUD GUARD

8

1008707424

BOLT

9

1307707020

WASHER

10

0188814218

SPACE BUSHING

11

6452006021

COUNTERWEIGHT

12

1007707042

BOLT

13

1343707065

WASHER

14

5361324500

CHAIN

15

1557909026

RING

16

5603620632

JACK LATCH
