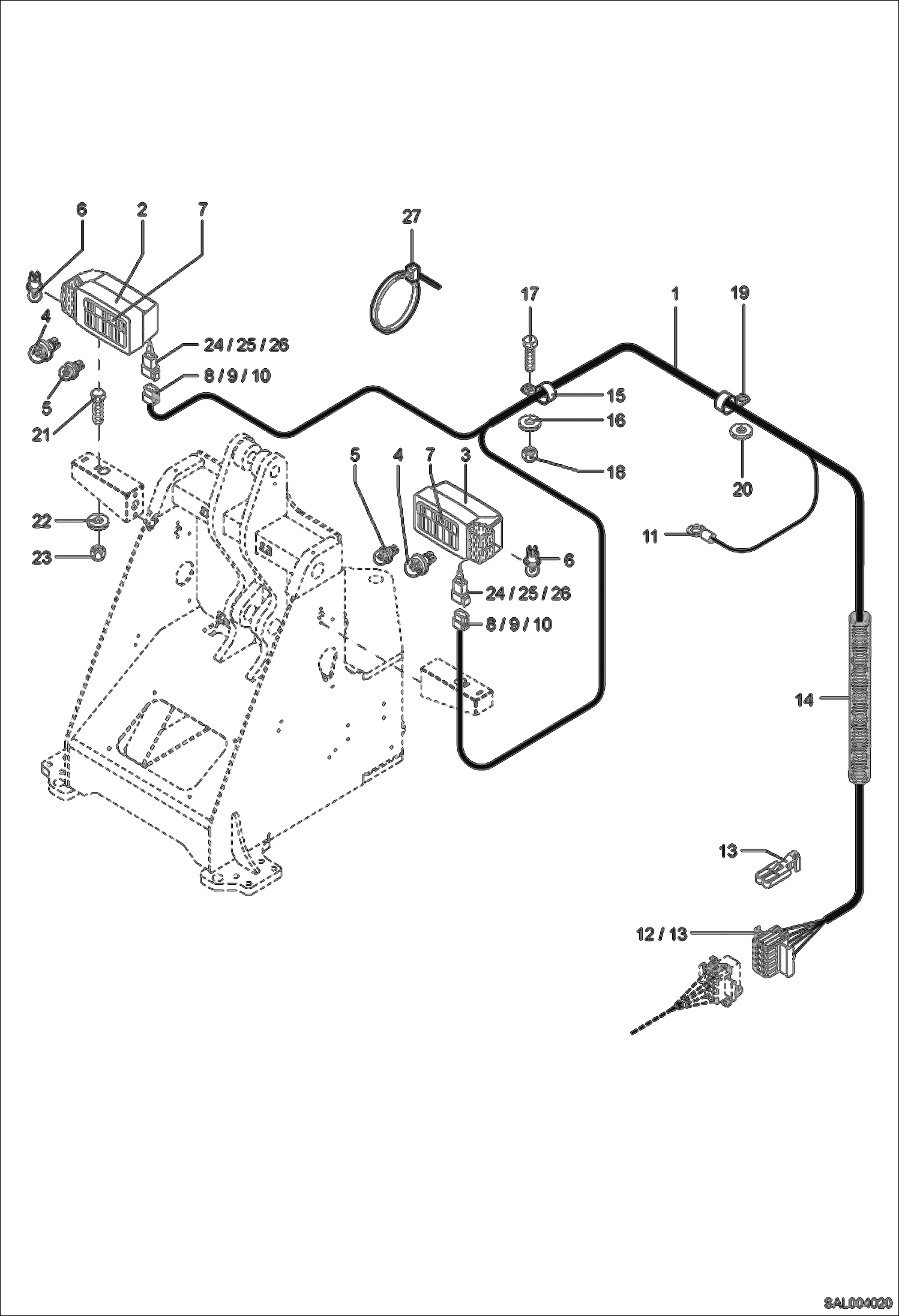

Запчасти Bobcat AL350 FRONT CHASSIS ELECTRICITY ELECTRIC INSTALLATION

1

5110662034

WIRE HARNESS FRONT CH. VORDERWAGEN

2

5110660147

HEAD LIGHT RIGHT RECHTS

3

5110660148

HEAD LIGHT LEFT LINKS

4

1813000022

HALOGEN BULB

5

1813000002

BULB SPHERICAL

6

1813000005

BULB (SIGNAL LIGHT)

7

5110660190

REFLECTOR

8

5350555327

HOUSING (FEMALE)

9

5350555328

LOCK

10

5350555325

FEMALE TERMINAL

11

5350246610

CABLE CONNECTOR M8

12

5350249554

HOUSING (FEMALE)

13

5350249552

CONNECTOR

14

5399000294

HOSE PART

15

5000136710

HOSE CLIP 10,7

16

1290707018

WASHER

17

1008707318

BOLT M8X25

18

1212251011

NUT M8

19

5000096800

HOSE CLAMP 25.4

20

1343707057

WASHER

21

1008707618

BOLT M 8x30

22

1343707057

WASHER

23

1212251011

NUT M8

24

5350555342

HOUSING (MALE)

25

5350555344

LOCK

26

5350555321

MALE TERMINAL

27

5653093560

BINDER 4,8X200
