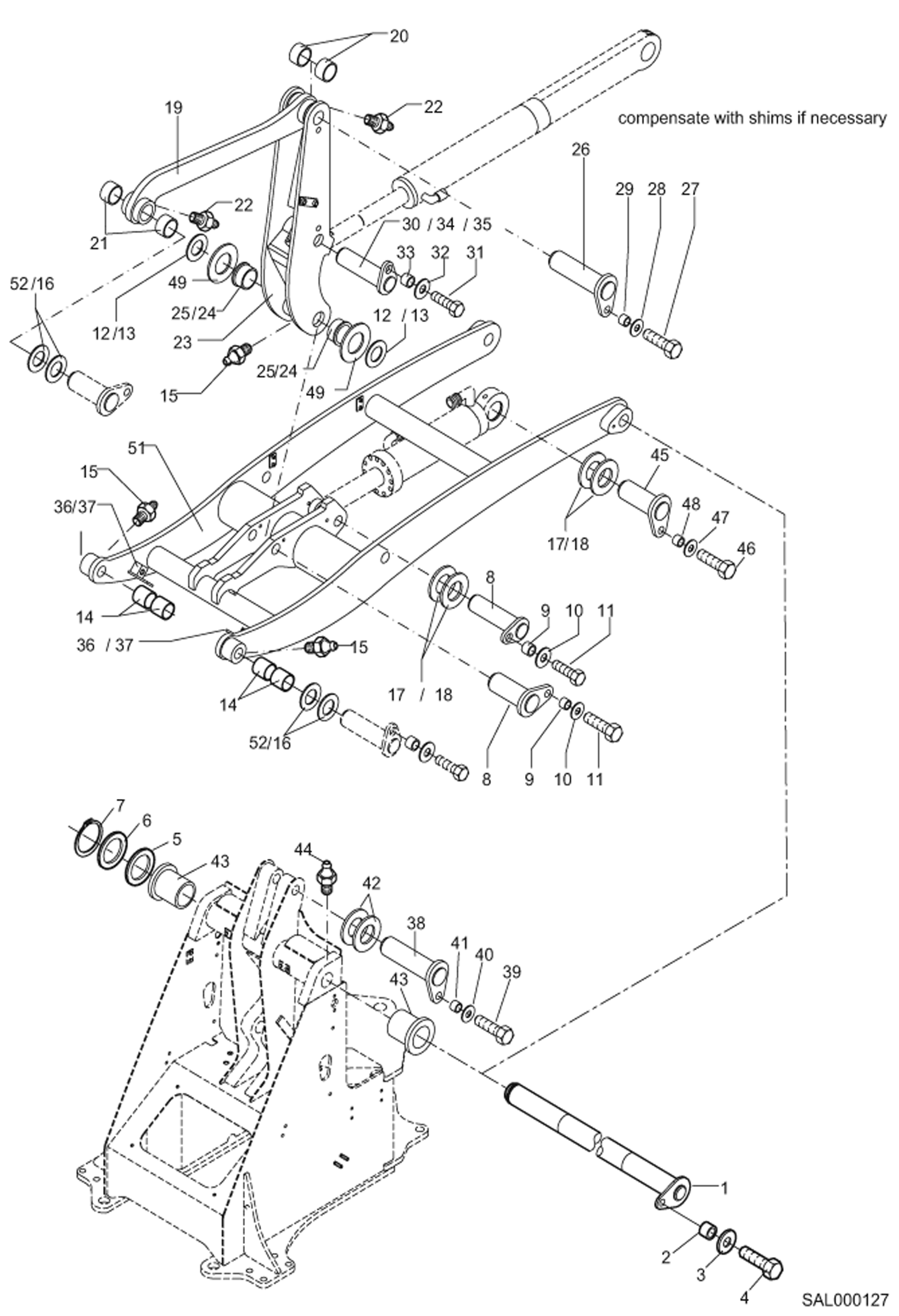

Запчасти Bobcat AL350 LOADING EQUIPMENT MAIN FRAME

1

6393521004

PIN

2

0156029033

SPACER

3

1343707061

WASHER

4

1008707829

BOLT

5

1309412425

SHIM

6

1309412412

SHIM

7

1455622750

SNAP RING

8

6393521015

PIN

9

0156029033

SPACER

10

1343707061

WASHER

11

1008707829

BOLT

12

0151524043

WASHER

13

0151524044

WASHER

14

5557313800

BUSHING

15

1607003010

GREASE NIPPLE

16

1309412815

SHIM

17

1309412224

SHIM

18

1309412012

SHIM

19

6393524001

LINKAGE

20

5557205202

BUSHING

21

5557200900

BUSHING

22

1607003006

GREASE NIPPLE

23

6462423001

TILTING LEVER

24

5809625681

BUSHING

25

6452021004

BUSHING

26

6393521012

PIN

27

1008707829

BOLT

28

1343707061

WASHER

29

0156029033

SPACER

30

0336002005

PIN CPL.FLAG

31

1008707829

BOLT

32

1343707061

WASHER

33

0333023033

SPACER BUSHING

34

1309412225

SHIM

35

1309412813

SHIM

36

0332806107

DISTRIBUTOR

37

6460520019

PROTECTION

38

0390102006

PIN

39

1008707829

BOLT

40

1343707061

WASHER

41

0333023033

SPACER BUSHING

42

1309412423

SHIM

43

0337002008

BUSHING

44

1607003010

GREASE NIPPLE

45

6332502010

PIN

46

1008707829

BOLT

47

1343707061

WASHER

48

0156029033

SPACER

49

0157624143

SHIM

51

6452020001

LIFTING FRAME

52

1309412926

SHIM
