Запчасти Bobcat AL350 DUMPING CYLINDER Z90/45 HYDRAULIC INSTALLATION

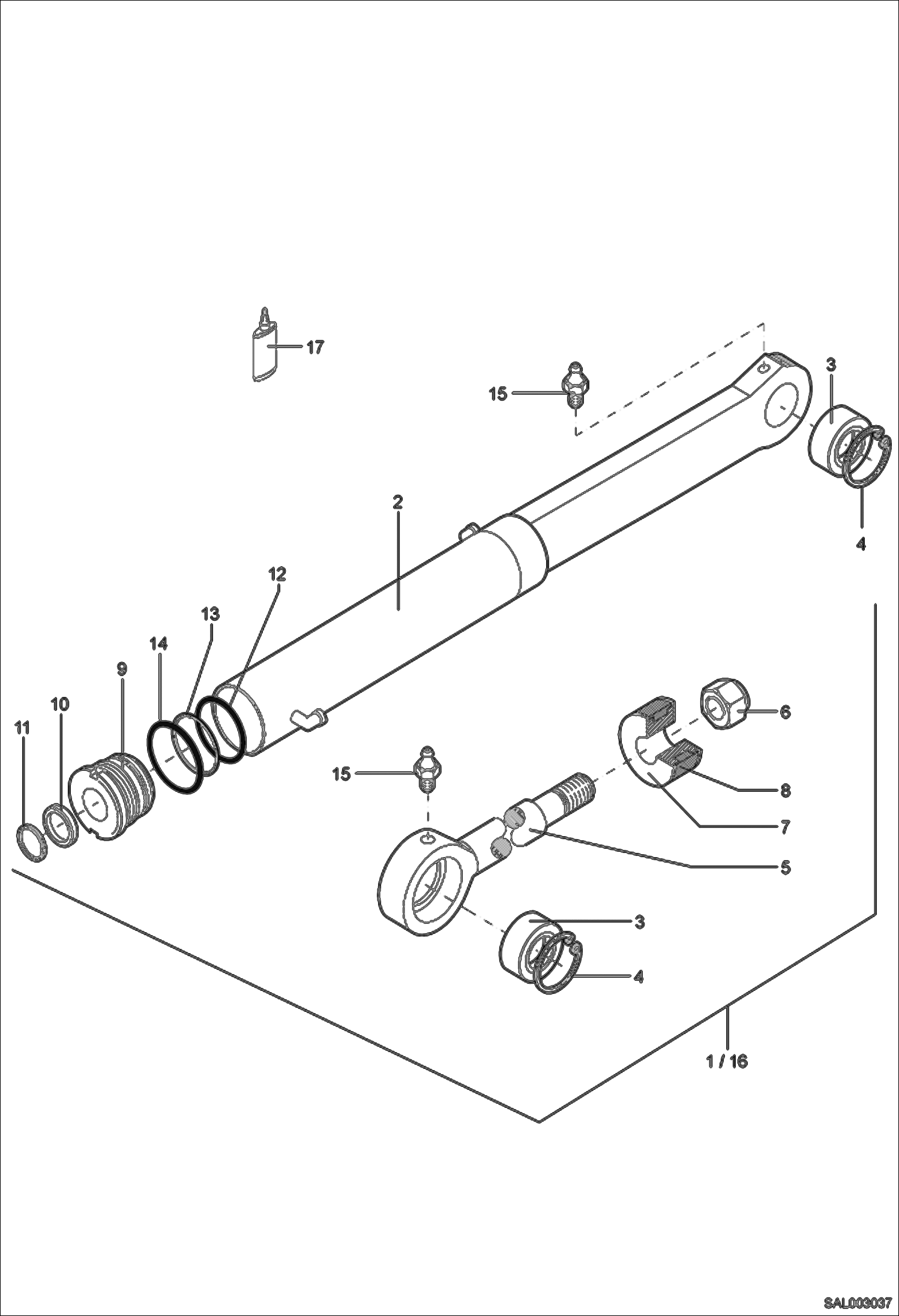

Схема запчастей Bobcat AL350 - DUMPING CYLINDER Z90/45 HYDRAULIC INSTALLATION

Артикул

Название

Примечание

Количество

1

6500757000

HYDRAULIC CYLINDER Z 90/45

2

6500757003

PIPE

3

1950000411

LINKAGE BEARING

4

1456622657

CIRCLIP

5

6500757011

PISTON ROD

6

1212251826

NUT M 30X2

7

0500744017

PISTON

8

1634935661

PISTON SEAL

9

0500755017

BUSHING, GUIDE

10

1965956458

ROD SEAL

11

1974955045

SCRAPER RING

12

1971958509

O-RING 94,2X5,7

13

1966960908

BACK UP RING 105X1,7

14

1971958919

O-RING

15

1607003006

GREASE NIPPLE M 6X1

16

1976999071

SEAL KIT W/Ref. 6, 8, 10-14

17

GLUE NLA - Was MCS001036A - A

Выбрано товаров: 17
