Запчасти Bobcat AL350 BREAKER CONNECTION HYDRAULIC INSTALLATION

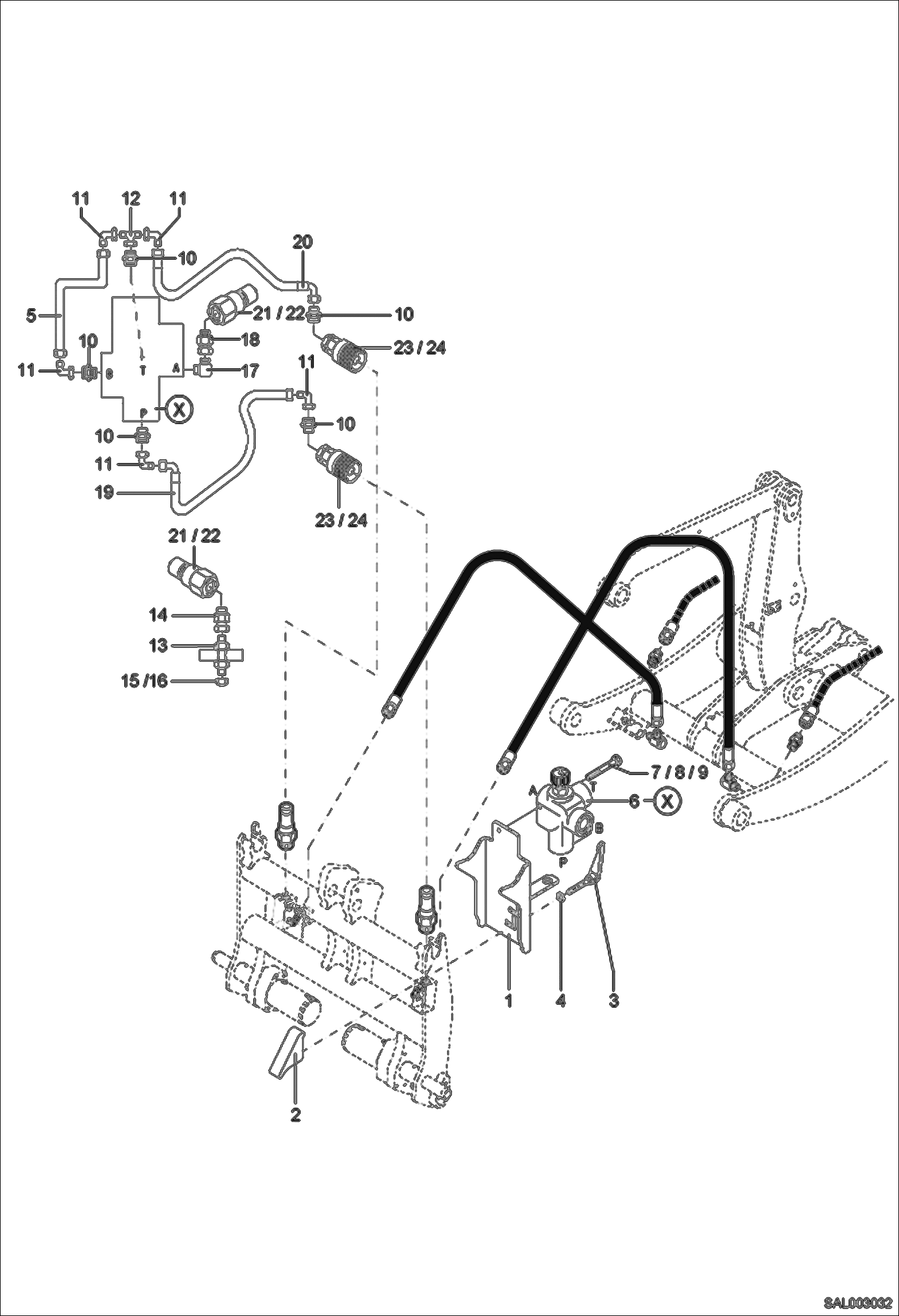

Схема запчастей Bobcat AL350 - BREAKER CONNECTION HYDRAULIC INSTALLATION

Артикул

Название

Примечание

Количество

1

6461746002

BRACKET

2

6461746006

CLAMPING DEVICE

3

5508318010

CLAMPING LEVER

4

1343707057

WASHER 8,4

5

0461746007

TUBING

6

5362656045

FLOW CONTROL VALVE

7

1007707214

BOLT M 6X45

8

1343707055

WASHER 6,4

9

1212251009

NUT M6

10

1915000887

FITTING

11

1924000573

FITTING

12

1915000887

FITTING

13

1913000039

FITTING

14

1938000905

SCREW NECK

15

1911060156

UNION NUT

16

1928000946

PLUG

17

1921000007

FITTING

18

1938000807

FITTING

19

4260045374

HOSE

20

4260077374

HOSE

21

5000253100

COUPLING PLUG

22

5000066800

DUST CAP

23

5000276100

COUPLING SOCKET

24

5000055900

DUST CAP

Выбрано товаров: 24
