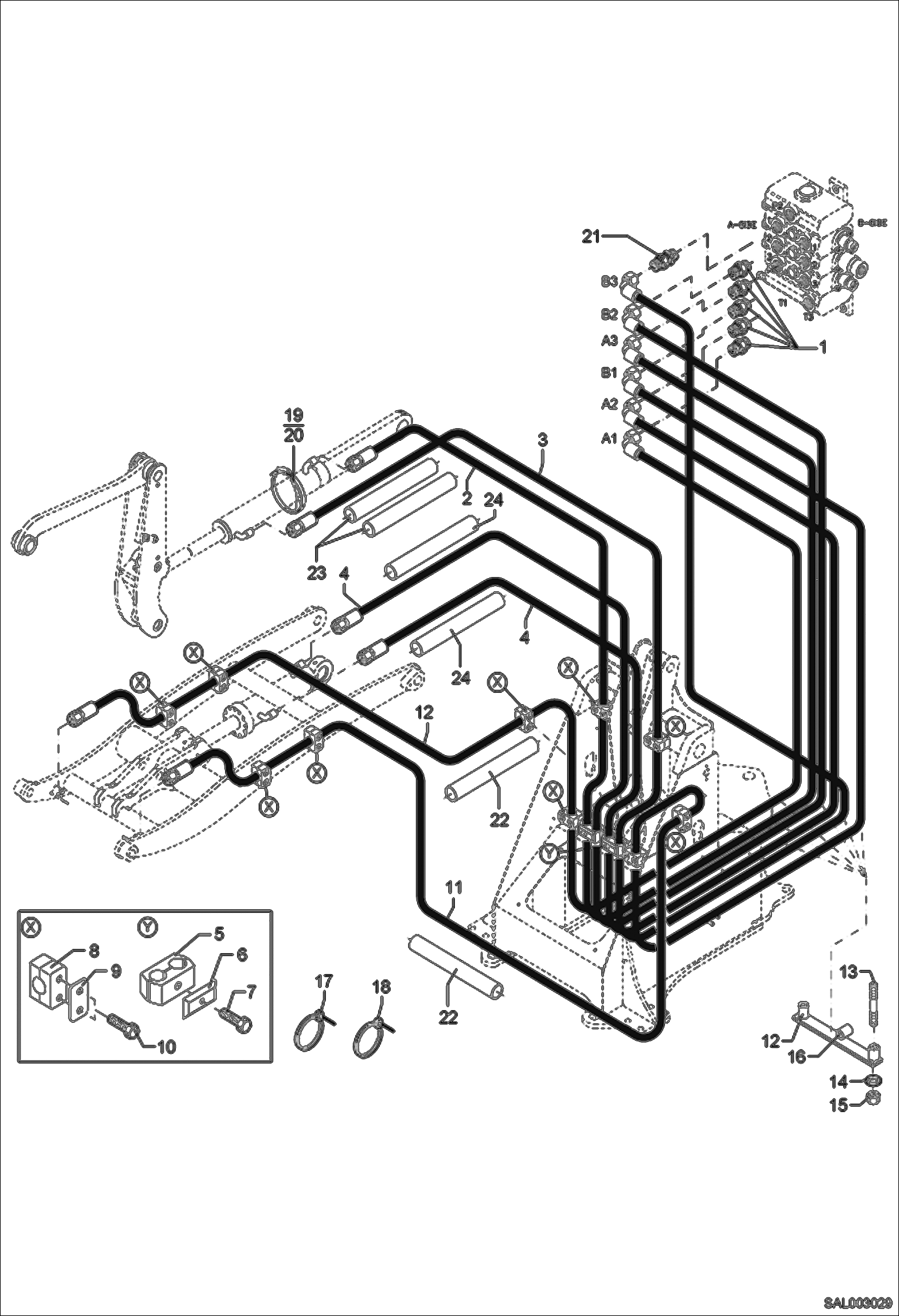

Запчасти Bobcat AL350 LOADING EQUIPMENT 1 HYDRAULIC INSTALLATION

1

1915060262

FITTING

2

4260305374

HOSE

3

4260360374

HOSE

4

4260265374

HOSE

5

5660199785

HOSE CLIP

6

5660200230

COVER PLATE

7

1007707319

BOLT M8X45

8

5660199784

HOSE CLIP

9

5660200130

COVER

10

1007707014

BOLT M 6X40

11

4260395374

HOSE

12

6336004001

HOSE CLIP

13

1123707019

STUD M 8X40

14

1343707057

WASHER

15

1212251011

NUT M 8

16

0157522026

HOSE Option

17

0157522026

HOSE

18

5350650280

BINDER

19

5660095400

HOSE CLIP

20

0110012050

RUBBER LAYER

21

0336012203

VALVE

22

0490607152

PROTECTION HOSE Option

23

0490607151

PROTECTION, HOSE Option

24

0452715091

PROTECTION, HOSE Option
