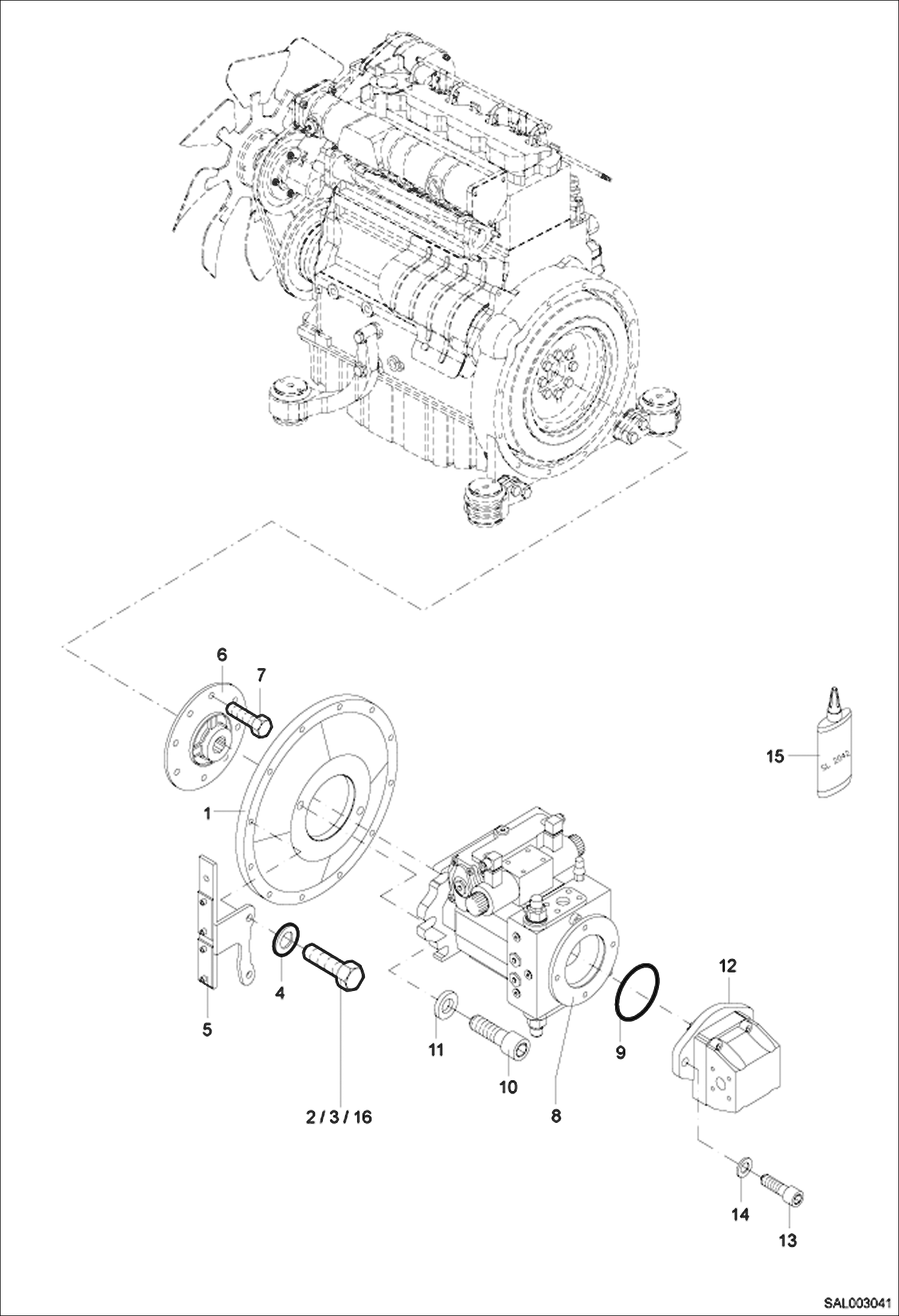

Запчасти Bobcat AL350 PUMPS MOUNTING HYDRAULIC INSTALLATION

1

5105660741

MOUNTED FLANGE

2

1008707324

BOLT M 10X35

3

1008707424

BOLT

4

1290707020

WASHER 10,5

5

0451017005

BRACKET

6

5105660739

COUPLING

7

1008707318

BOLT M8X25

8

5364662425

VARIABLE DISPLACEMENT PUMP

9

1971956233

O-RING Was 1971956116 - B,D

10

1045707141

BOLT M 16X45

11

0396017002

WASHER

12

5100620055

GEAR TYPE PUMP

13

1008707030

BOLT M 12X35

14

1290707022

WASHER 13

15

MCS001035A

GLUE SL 2042

16

1007707524

BOLT
