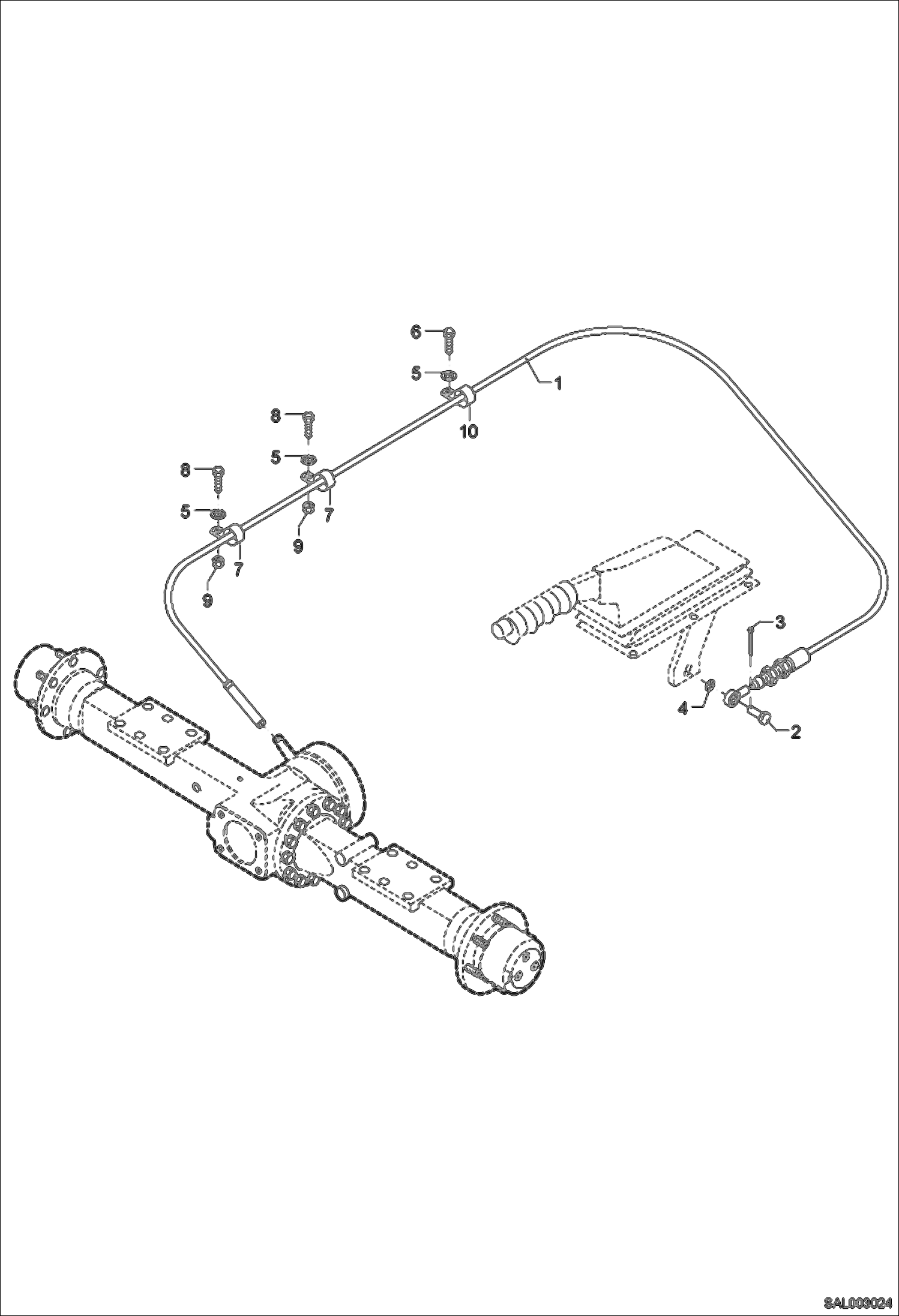

Запчасти Bobcat AL350 PARKING BRAKE HYDRAULIC INSTALLATION

1

5692657700

BOWDEN CABLE

2

1360707024

PIN

3

1290707018

WASHER

4

1395707017

COTTER PIN

5

1343707057

WASHER

6

1008707018

BOLT M 6X20

7

5000136710

HOSE CLIP 10,7

8

1008707618

BOLT M 8x30

9

1212251011

NUT

10

5000096800

HOSE CLAMP
