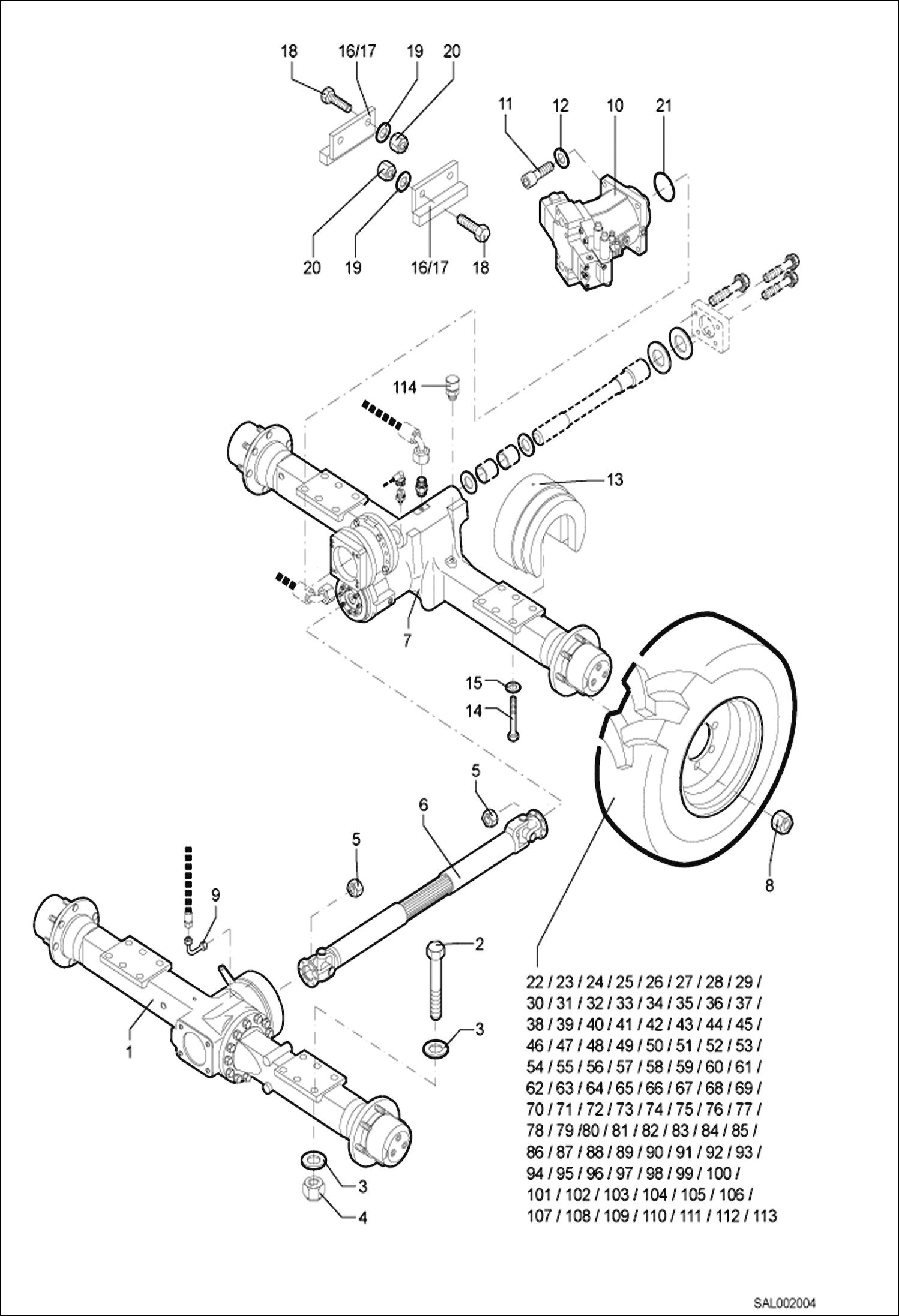

Запчасти Bobcat AL350 AXLE, TIRES 36 km/h Fast Travel Version DRIVE SYSTEM

1

5904661666

AXLE

2

1007707553

BOLT M 20X90

3

1290707033

WASHER 21X37X3

4

1212251018

NUT M 20

5

1214907013

NUT M 10

6

5200659226

CARDAN SHAFT

7

5904661681

AXLE

8

1270707618

NUT M 20X1,5

9

5904660751

BRAKE LINE

10

5904660751

BRAKE LINE

11

1045707230

BOLT M 12X40

12

1290707022

WASHER 13

13

0452219002

WEIGHT, REAR AXLE

14

1008707241

BOLT M 16X50

15

1343707065

WASHER 17X40X6

16

6460611002

OSCILLATING STOP

17

6461616002

OSCILLATING STOP

18

1007707830

BOLT M 12X60

19

1343707061

WASHER 13

20

1212251014

NUT M 12

21

1970956137

O-RING

22

6452290000

WHEEL W/Ref. 23-25

23

5153658416

TIRE

24

5307643528

RIM

25

5153632954

VALVE

26

WHEEL MITAS 12.5-20 MPT 10 PR MPT-04 W/Ref. 27-29

27

5153660282

TIRE

28

5307656066

RIM

29

5153643505

VALVE

30

6393794500

WHEEL W/Ref. 31-33

31

5153632150

TIRE

32

5307656066

RIM

33

5153643505

VALVE

34

6461795500

WHEEL W/Ref. 35-37

35

5153661340

TIRE

36

5307656066

RIM

37

5153643505

VALVE

38

6393795000

WHEEL W/Ref. 39-41

39

5153638700

TIRE

40

5307643528

RIM

41

5153643505

VALVE

42

6393795500

WHEEL W/Ref. 43-45

43

5153661127

TIRE

44

5307643528

RIM

45

5153643505

VALVE

46

6338994500

WHEEL W/Ref. 47-49

47

5153658385

TIRE 335/80 R18XM27 139BTL

48

5307656032

RIM

49

5153643505

VALVE

50

6393793500

WHEEL W/Ref. 51-53

51

5153658387

TIRE

52

5307656066

RIM

53

5153643505

VALVE

54

6461793000

WHEEL W/Ref. 55-57

55

5153661310

TIRE

56

5307656066

RIM

57

5153643505

VALVE

58

6393796000

WHEEL W/Ref. 59-61

59

5153644460

TIRE

60

5307643528

RIM

61

5153643505

VALVE

62

6393794000

WHEEL W/Ref. 63-65

63

5153660265

TIRE

64

5307656066

RIM

65

5153643505

VALVE

66

WHEEL NLA - w/Ref. 69-71 - Was 6393796500 - A

67

5153661150

TIRE

68

5307643528

RIM

69

5153643505

VALVE

70

6461793500

TIRE W/Ref. 71-73

71

5153661300

RIM

72

5307656032

RIM

73

5153643505

VALVE

74

6393797000

WHEEL W/Ref. 75-77

75

5153658393

TIRE

76

5307643515

RIM

77

5153643505

VALVE

78

6461794000

WHEEL W/Ref. 79-81

79

5153661305

TIRE

80

5307643515

RIM

81

5153643505

VALVE

82

6461794500

WHEEL W/Ref. 83-85

83

5153658391

TIRE

84

5307643528

RIM

85

5153643505

VALVE

86

WHEEL NLA - W/Ref. 89-97 - Was 6338996000

87

5153660130

TIRE

88

5307656041

RIM

89

5153643505

VALVE

90

6338993000

WHEEL W/Ref. 91-93

91

5153632100

TIRE

92

5307656032

RIM

93

5153643505

VALVE

94

6338997500

WHEEL W/Ref. 95-97

95

5153661145

TIRE

96

5307656032

RIM

97

5153643505

VALVE

98

6461795000

WHEEL W/Ref. 99-101

99

5153643500

TIRE

100

5307643515

RIM

101

5153643505

VALVE

102

6338995000

WHEEL W/Ref. 103-105

103

5153628250

TIRE 15.5/55R18MPTPG7 134E 14PRTL

104

5307656032

RIM

105

5153643505

VALVE

106

6452295600

WHEEL W/Ref. 107-109

107

5153661363

TIRE

108

5307643515

RIM

109

5153643505

VALVE

110

6452298500

WHEEL W/Ref. 111-113

111

5153665018

TIRE

112

5307656041

RIM

113

5153643505

VALVE

114

5904658832

VALVE, BLEEDING
