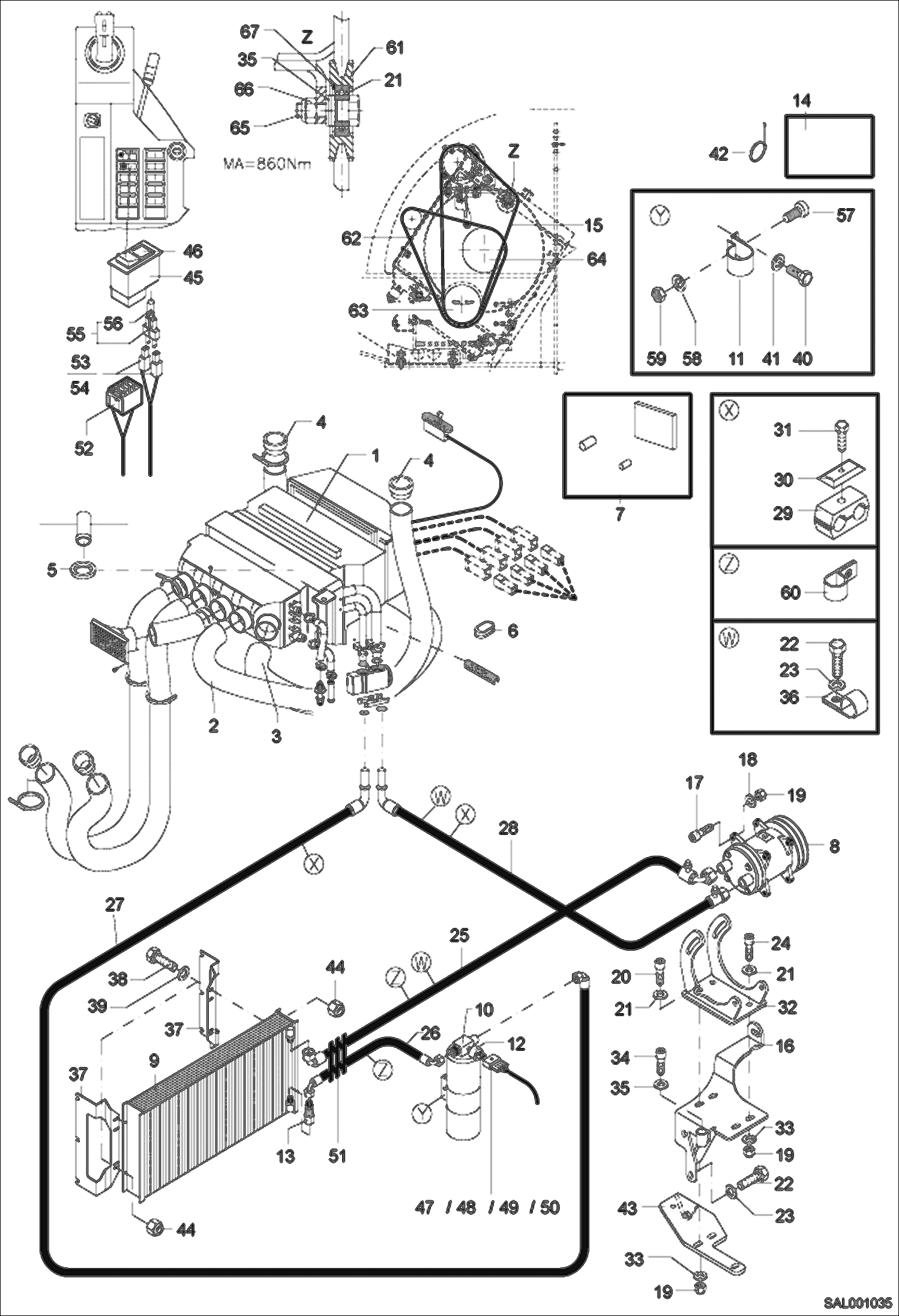

Запчасти Bobcat AL350 AIR CONDITIONER MAIN FRAME

1

5388665399

AIR CONDITIONER

2

5388665542

HOSE 1240MM

3

5388665543

HOSE 1440MM

4

5388665478

REDUCTION PIECE

5

5388665544

SEAL RING

6

5388665545

AIR STOP

7

0451275240

MOUNTING, KIT

8

5169001018

COMPRESSOR

9

5169001017

CONDENSATOR

10

5388662731

FILTER

11

5388662855

FILTER SUPPORT

12

5388661135

PRESSURE SWITCH PRIMARY

13

5388665521

FITTING

14

5388661117

MARKING PLATE

15

1490953975

BELT, COMPRESSOR A/C

16

6453275120

BRACKET

17

1045707324

BOLT M 10X35

18

1290707020

WASHER

19

1212251013

NUT M 10

20

1045707424

BOLT M 10X40

21

1503003404

BEARING

22

1008707018

BOLT

23

1343707057

WASHER

24

1045707124

BOLT M 10X30

25

5388662933

HOSE

26

5388662932

HOSE FROM COND.TO FILTER

27

5388665398

HOSE FROM FILTER TO EVAPORATOR

28

5388665397

HOSE FROM EVAPORATOR TO COMP.

29

5660199783

CLIP

30

5660200230

COVER PLATE

31

1007707319

BOLT M 8X45

32

6451275025

BRACKET

33

1343707059

WASHER 10,5

34

1045707630

BOLT M 12X50

35

1290707022

WASHER 13

36

5000096800

HOSE CLAMP 25.4

37

0451275012

BRACKET

38

1008707213

BOLT M 6X20

39

1307707014

WASHER 6,4

40

1008707612

BOLT M 6X12

41

1343707055

WASHER 6,4

42

5653093560

BINDER 4,8X200

43

0451378002

BRACKET

44

1212251009

NUT M 6

45

5050651384

SWITCH INTERRUPTER

46

5358650383

DECAL SYMBOL

47

5350249681

HOUSING (MALE)

48

5350249346

GASKET

49

5350249345

GASKET

50

5350249673

CONTACT

51

5000068300

WIRING HARNESS

52

5050650225

HOUSING

53

5350246805

TERMINAL FEMALE 6,3

54

5350249536

HOUSING

55

5050650226

LAMP

56

1813000021

ROUND BULB 12V 1,2W

57

5388662856

BOLT M 5X40

58

5388662623

WASHER 5,3

59

1210707007

NUT

60

5000210400

HOSE CLIP 23,0

61

0451378004

PULLEY

62

5411657027

V-BELT

63

5411657028

PULLEY

64

5411657026

PULLEY, DRIVE

65

0451378003

BOLT

66

1212251014

NUT

67

1456622143

CIR CLIP
