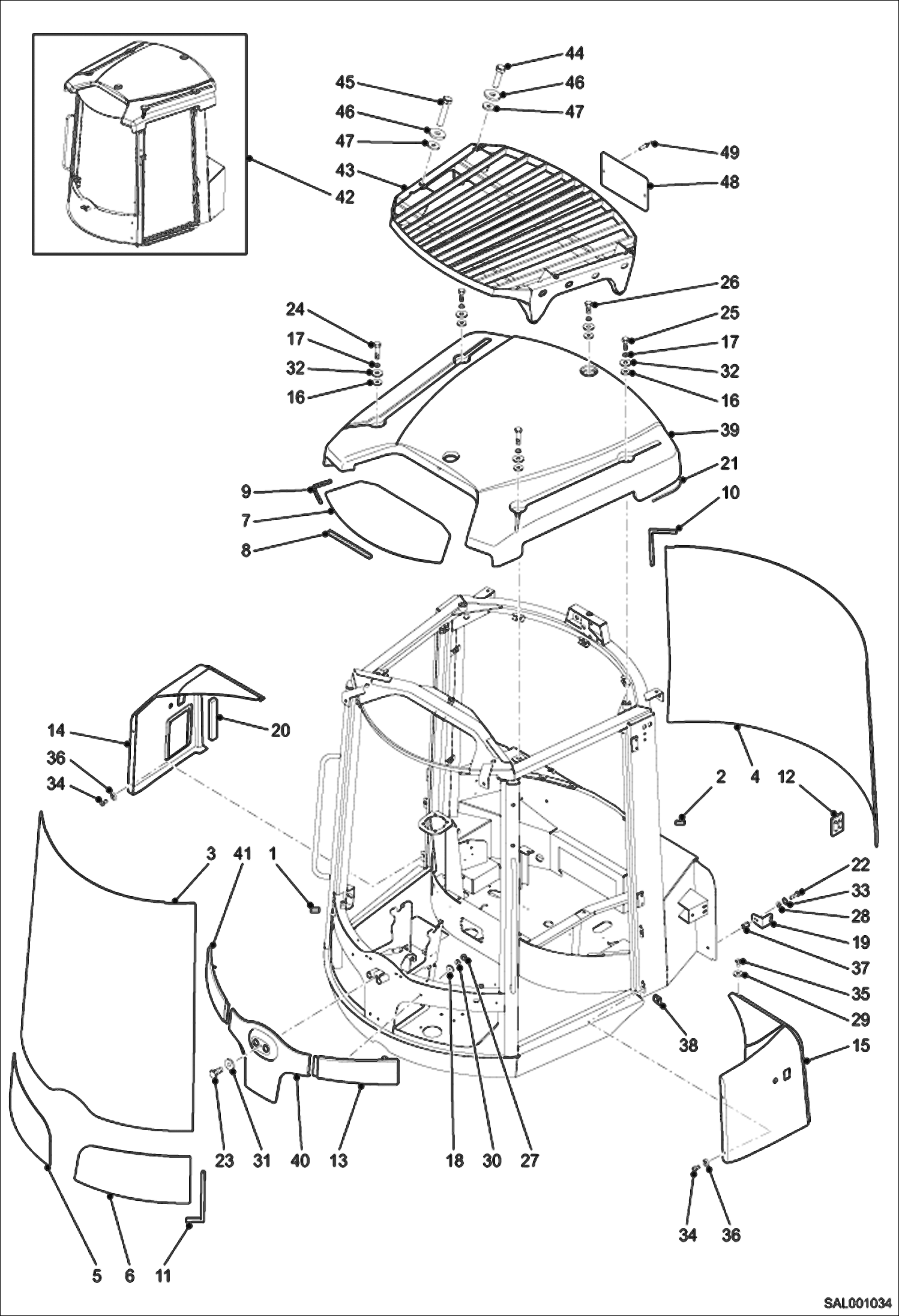

Запчасти Bobcat AL350 CAB-GLASSES MAIN FRAME

1

5388665506

DISTANCE SLEEVE

2

5388665507

DISTANCE SLEEVE

3

5388665003

PANE

4

5388662999

REAR WINDOW

5

5388665508

PANE

6

5103661359

WINDOW Was 5388665509 - A

7

5388665511

PANE

8

5388665512

SEAL 170MM

9

5388665513

SEAL 840MM

10

5388665514

SEAL 3900MM

11

5388665515

SEAL 2200MM

12

MCS008042A

KIT, WINDOW GLUE

13

5388665516

COVERING

14

5388665401

COVERING

15

5388665402

COVERING

16

5388665189

WASHER 40

17

5388665190

WASHER

18

5388665327

WASHER 22

19

5388665517

BRACKET

20

5388665518

SEAL 400MM

21

5388665186

SEAL

22

1062707213

BOLT M 6X20

23

1008707018

BOLT

24

1123311041

STUD M16X40

25

5388665519

BOLT M16X50

26

5388665520

BOLT M16X80

27

5388665072

NUT M 5

28

1290707014

WASHER 6,4

29

1307707014

WASHER 6,4

30

1307707012

WASHER

31

1307707018

WASHER 8,4

32

5388665084

WASHER 17

33

5388665266

WASHER 8,4

34

5388665096

BOLT M4,8X22

35

5388665410

BOLT 4,8X13

36

5388662047

WASHER

37

5388665211

NUT M 6

38

5388662687

CLIP

39

5388665073

ROOF WHITE

40

5388665411

COVERING

41

5388665412

COVERING

42

0451041100

CAB, CPL

43

5388664057

TOP GUARD Option

44

BOLT M 3.5X12

45

BOLT M 3.5X12

46

1290707028

WASHER 17

47

WASHER

48

NAME PLATE

49

1940000739

RIVET 4,8X10,2
