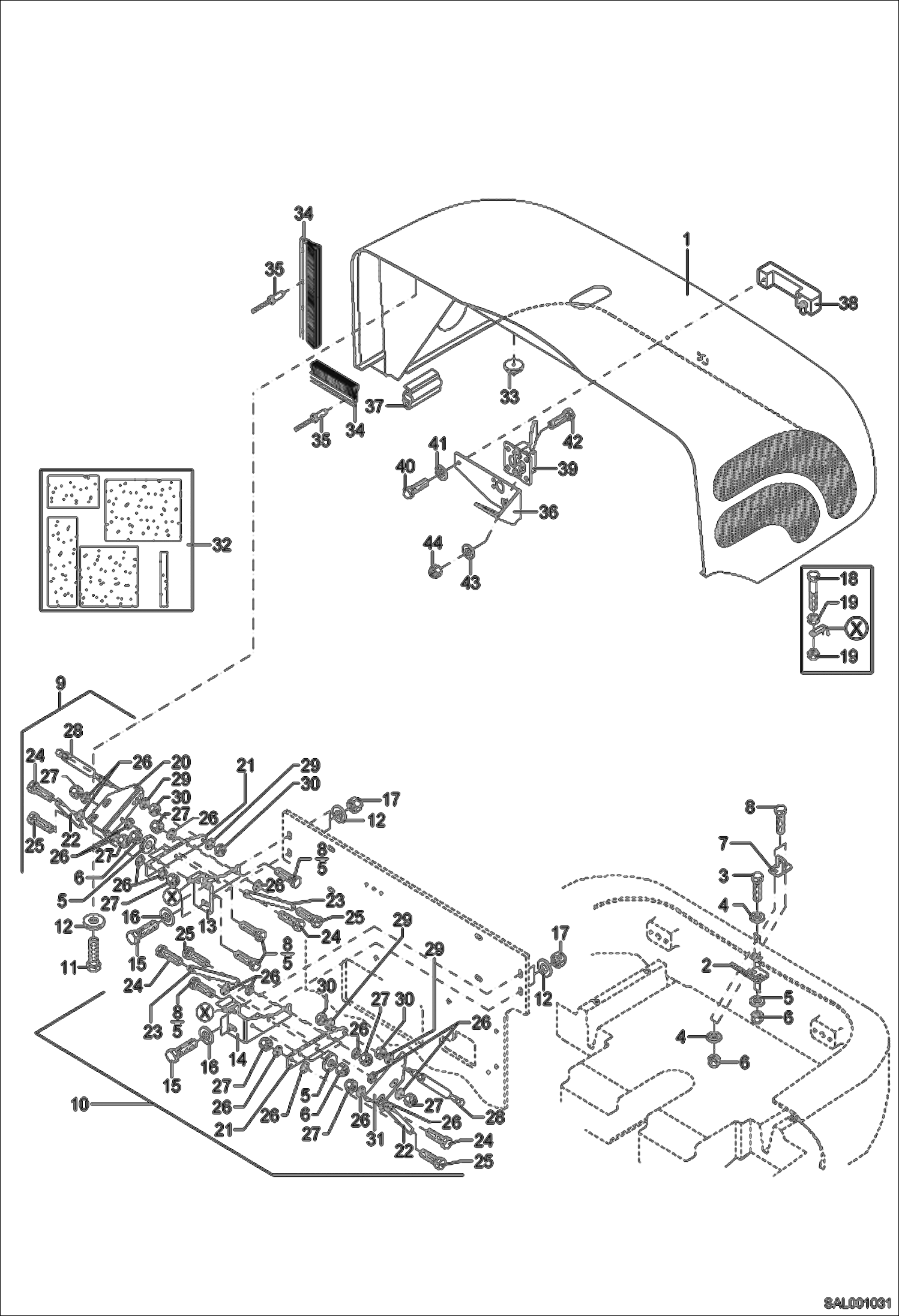

Запчасти Bobcat AL350 ENGINE COVER MAIN FRAME

1

5529020XXX

ENGINE COVER BOBCAT

2

0453819059

BRACKET

3

1069907019

BOLT M 8X40

4

1290707018

WASHER 8,4

5

1343707057

WASHER

6

1212251011

NUT M8

7

5354604338

COTTER

8

1008707618

BOLT M 8X30

9

0451019030

JOINT CPL. RIGHT W/Ref. 20-30

10

0451019031

JOINT CPL. LEFT W/Ref. 21-31

11

1008707923

BOLT M 10X35

12

1343707059

WASHER 10,5

13

0451019038

ANGLE RIGHT

14

0451019039

ANGLE LEFT

15

1008707424

BOLT

16

1290707020

WASHER 10,5

17

1212251013

NUT M 10

18

1007707014

BOLT M6X40

19

1210707009

NUT M 6

20

0451019036

ANGLE RIGHT

21

0451019032

BRACKET

22

0451019033

FLAP

23

0451019034

FLAP

24

1019707718

BOLT M8X32

25

1019707818

BOLT M8X35

26

1290707020

WASHER 10,5

27

1212251011

NUT M8

28

5696636573

GAS SPRING

29

1290707018

WASHER 8,4

30

1210707011

NUT M 8

31

0451019037

ANGLE LEFT

32

5691606460

LINING SET

33

5529030002

CLIP

34

5354605600

SEAL BRUSH

35

1940000939

RIVET

36

6451019048

BRACKET

37

7025098

SEAL, BULK/MTR - A

38

5354604442

PLASTIC HANDLE

39

5354604335

HOOD LATCH

40

1008707018

BOLT M 8X20

41

1343707055

WASHER 6,4

42

1008707618

BOLT M 8x30

43

1290707018

WASHER 8,4

44

1212251011

NUT M 8
