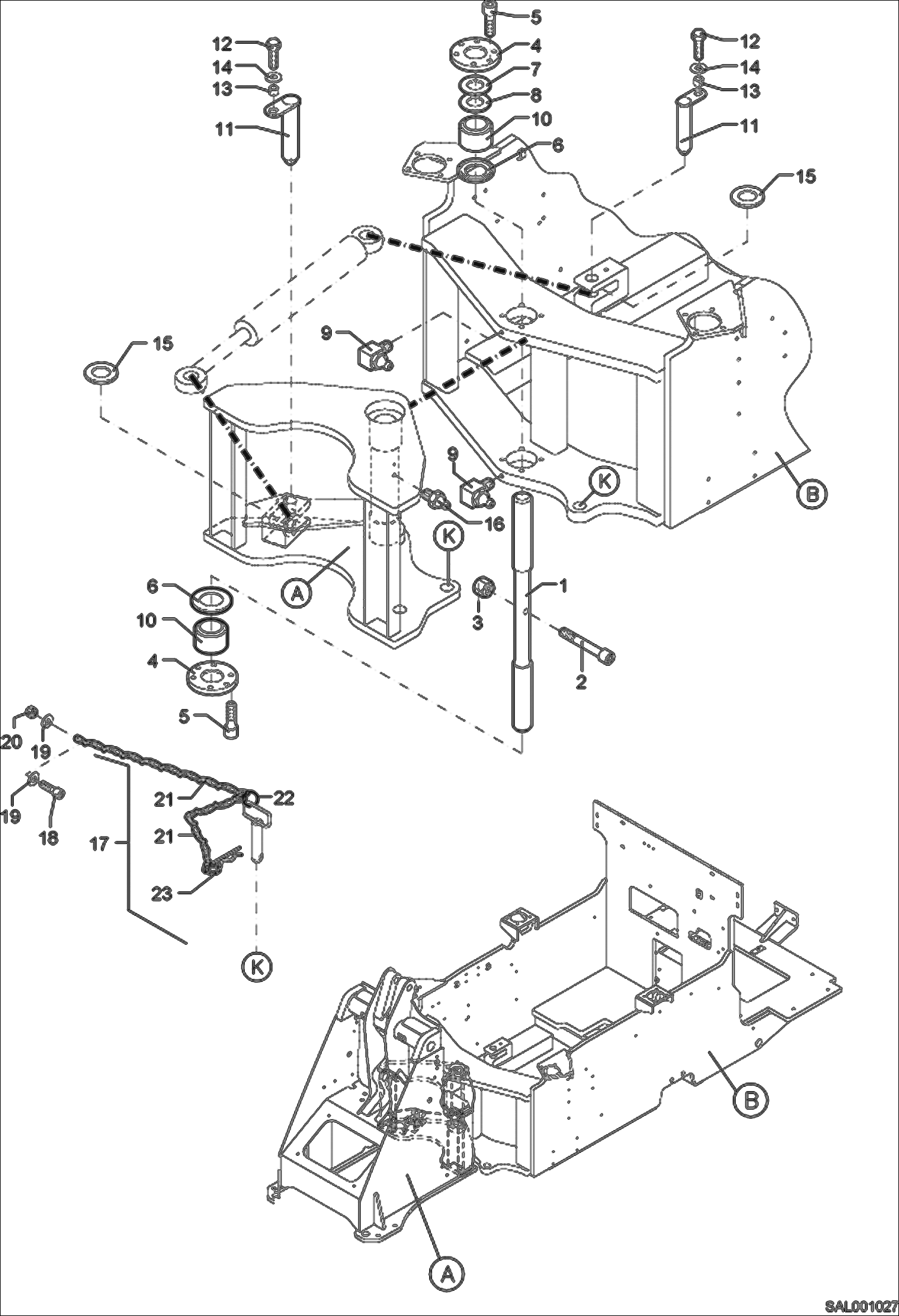

Запчасти Bobcat AL350 ARTICULATION MAIN FRAME

1

0393506002

PIN

2

1045707425

BOLT M 10X90

3

1212251013

NUT

4

0393506003

COVER Was 6393506003 - A

5

1045907324

BOLT M 10X35

6

0393506005

RING 75X56X9

7

1309412316

SHIM

8

1309412407

SHIM

9

1608003006

GREASE NIPPLE

10

1950010413

LINKAGE BEARING

11

0185023010

PIN

12

1008707829

BOLT M 12X30

13

0333023033

SPACER BUSHING

14

1343707061

WASHER

15

1309412911

SHIM

16

1607003010

GREASE NIPPLE M10X1

17

5603620631

PIN

18

1008707318

BOLT M 8x25

19

1290707018

WASHER

20

1212251011

NUT M8

21

5361324500

CHAIN

22

1557909026

RING

23

5603620632

JACK LATCH
