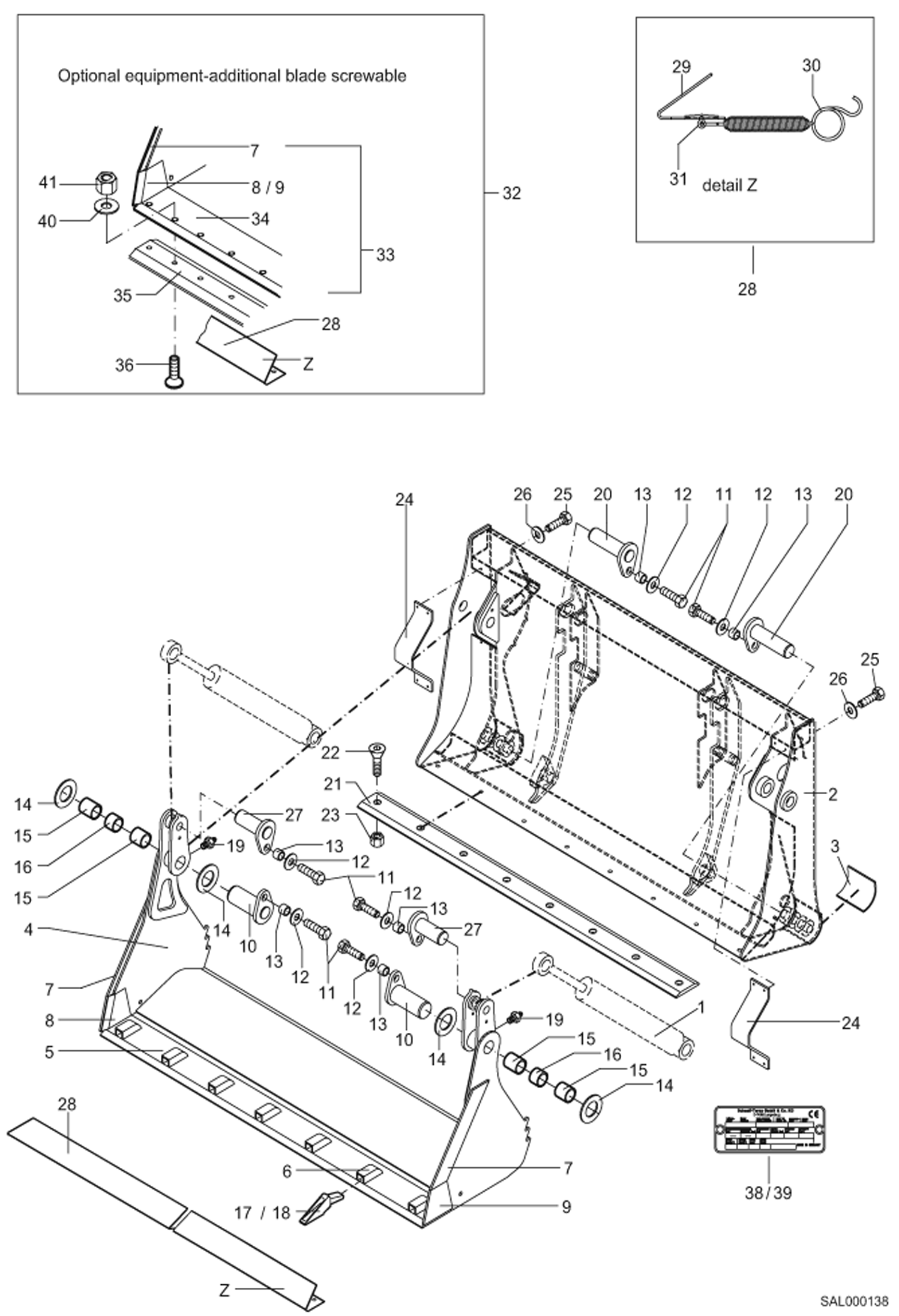

Запчасти Bobcat AL350 4 IN 1 SHOVEL Навесное оборудование

1

6323000000

UNI-SHOVEL CPL. See Illustration 4 IN 1 SHOVEL HYDRAULIC INSTALLATION/ SAL000169 Includes Ref. 2 to 28

1

See Illustration 4 IN 1 SHOVEL CYLINDER/ SAL000176

2

6323001001

REAR SHOVEL CPL. Includes Ref. 3

3

6323001025

SKID SHOE

4

6323002001

FRONT SHOVEL CPL. Includes Ref. 5 to 9

5

6338901105

CUTTING EDGE Includes Ref. 6

6

5455204900

SLEEVE

7

6323002009

SIDE-STRIP

8

6323002010

CUTTING EDGE RIGHT

9

6323002013

CUTTING EDGE LEFT

10

0333023030

PIN

11

1008707529

BOLT

12

1343707061

WASHER

13

0333023033

SPACER BUSHING

14

1309412725

SHIM

15

0159903056

BUSHING

16

6366203007

BUSHING

17

5455204800

TOOTH

18

5455700096

TOOTH CUP Was 5455205000 - A

19

1608003010

GREASE NIPPLE

20

6157709042

PIN

21

0323003010

CUTTING EDGE

22

1062707036

BOLT

23

1212251015

NUT

24

6323003014

BRACKET

25

1008707018

BOLT

26

1343707057

WASHER

27

0366204110

PIN

28

6452201030

TOOTH PROTECTION CPL. Includes Ref. 29 to 31

29

--

NAME PLATE

30

5249001010

SPRING

31

1395707827

COTTER PIN Was 5249001011 - A

32

6323190000

UNI-SHOVEL CPL. See Illustration 4 IN 1 SHOVEL HYDRAULIC INSTALLATION/ SAL000169 Includes Ref. 2 + 7 to 16 + 19 to 31 + 33 to 40 7.021,8.021

32

See Illustration 4 IN 1 SHOVEL CYLINDER/ SAL000176 +

33

6323102101

FRONT SHOVEL CPL. Includes Ref. 34 + 7 to 9

34

0452202003

CUTTING EDGE

35

0452202002

BOLT-ON CUTTING EDGE

36

1062707236

BOLT

38

- -

NAME PLATE

39

1940000739

RIVET

40

1290707025

WASHER

41

1212251015

NUT
