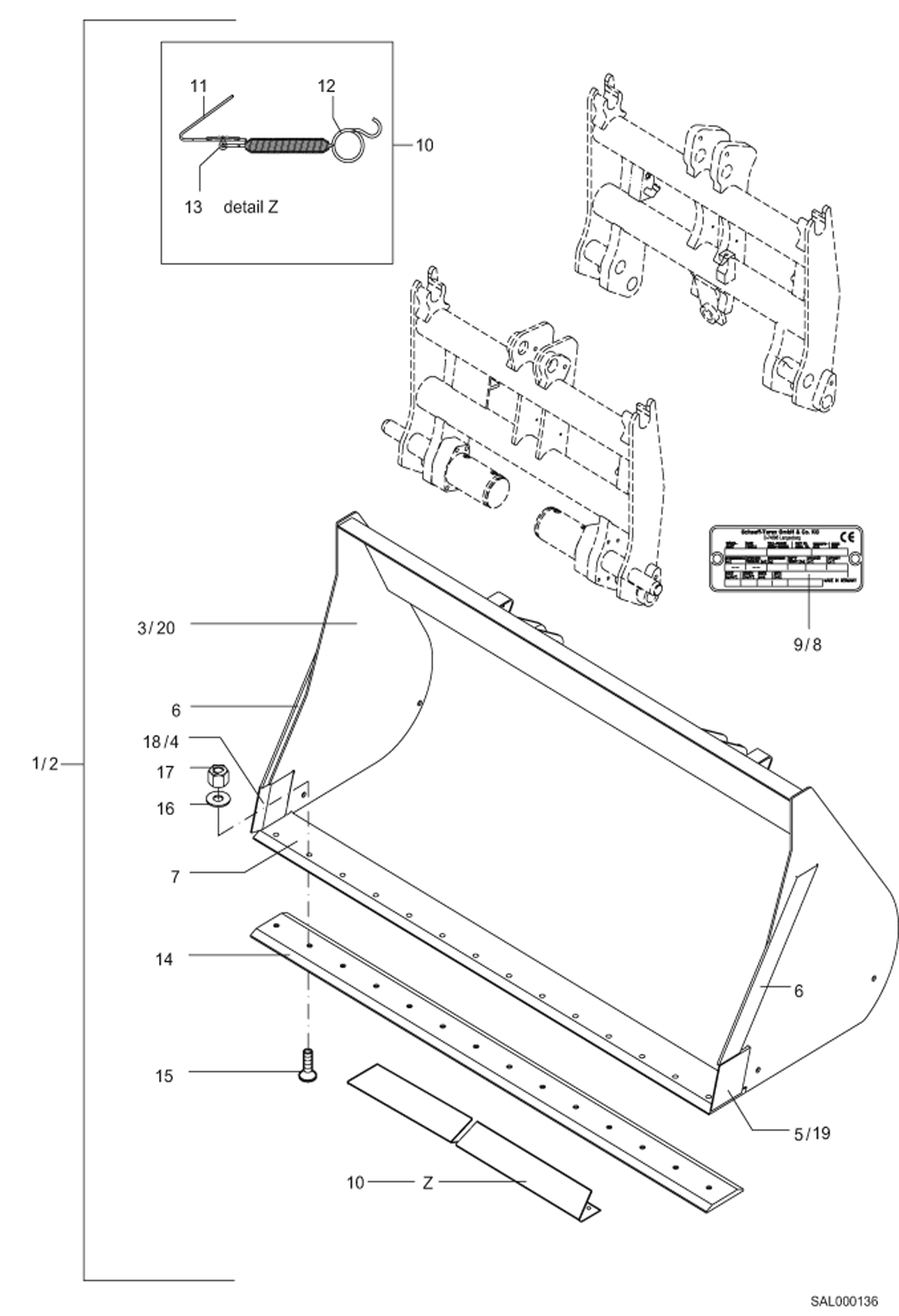

Запчасти Bobcat AL350 LIGHT MATERIAL BUCKET 1950MM1,20CBM + 1,35CBM Навесное оборудование

1

6452208000

LIGHT MATERIAL BUCKET CPL: Includes Ref. 3 to 17

2

6453207000

LIGHT MATERIAL BUCKET CPL: Includes Ref. 6 to 20

3

6452208001

LIGHT MATERIAL BUCKET Includes Ref. 4 to 7

4

6397201023

CUTTING EDGE RIGHT

5

6397201024

CUTTING EDGE LEFT

6

6397201004

SIDE-STRIP

7

6453202003

CUTTING EDGE

8

--

NAME PLATE

9

1940000739

RIVET

10

6453201030

TOOTH PROTECTION CPL. Includes Ref. 10 to 13

11

--

NAME PLATE

12

5249001010

SPRING

13

1395707827

COTTER PIN Was 5249001011 - A

14

6453202002

BOLT-ON CUTTING EDGE

15

1062707236

BOLT

16

1290707025

WASHER

17

1212251015

NUT

18

6453201023

CUTTING EDGE RIGHT

19

6453201024

CUTTING EDGE LEFT

20

6453207001

LIGHT MATERIAL BUCKET Includes Ref. 6 + 7 + 18 + 19
