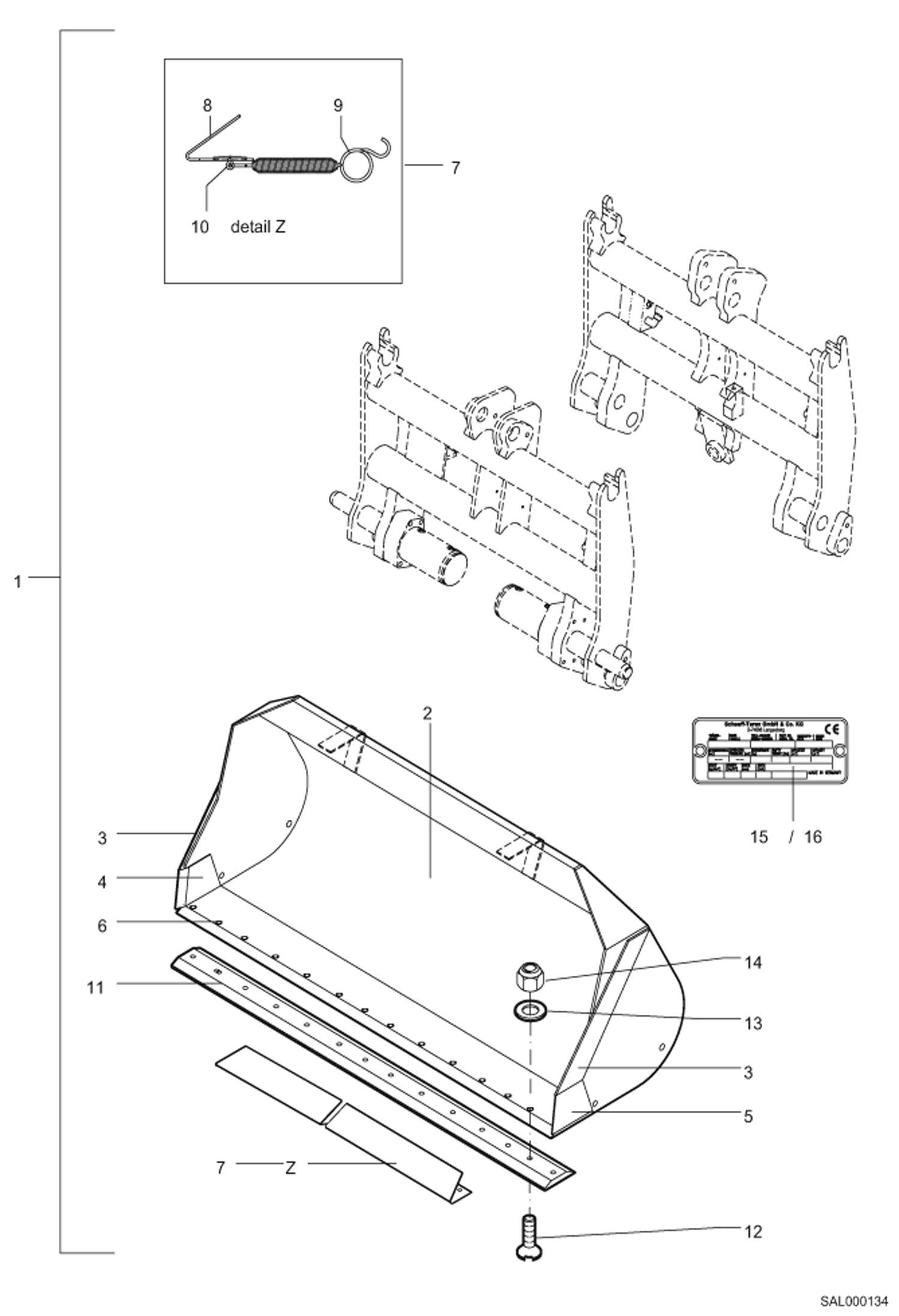

Запчасти Bobcat AL350 LIGHT MATERIAL BUCKET 1850MM, QUICKLY RELEASABLE Навесное оборудование

1

6452207000

LIGHT WEIGHT SHOVEL CPL Includes Ref. 2 to 15

2

6452207001

LIGHT WEIGHT SHOVEL Includes Ref. 3 + 4 + 5 + 6

3

6397201004

SIDE-STRIP

4

0451201023

CUTTING EDGE RIGHT

5

0451201024

CUTTING EDGE LEFT

6

6452202003

CUTTING EDGE

7

6452201030

TOOTH PROTECTION CPL. Includes Ref. 8 to 10

8

--

NAME PLATE

9

5249001010

SPRING

10

1395707827

COTTER PIN Was 5249001011 - A

11

0452202002

BOLT-ON CUTTING EDGE

12

1290707025

WASHER

13

1062707236

BOLT

14

1212251015

NUT

15

- -

NAME PLATE

16

1940000739

RIVET
