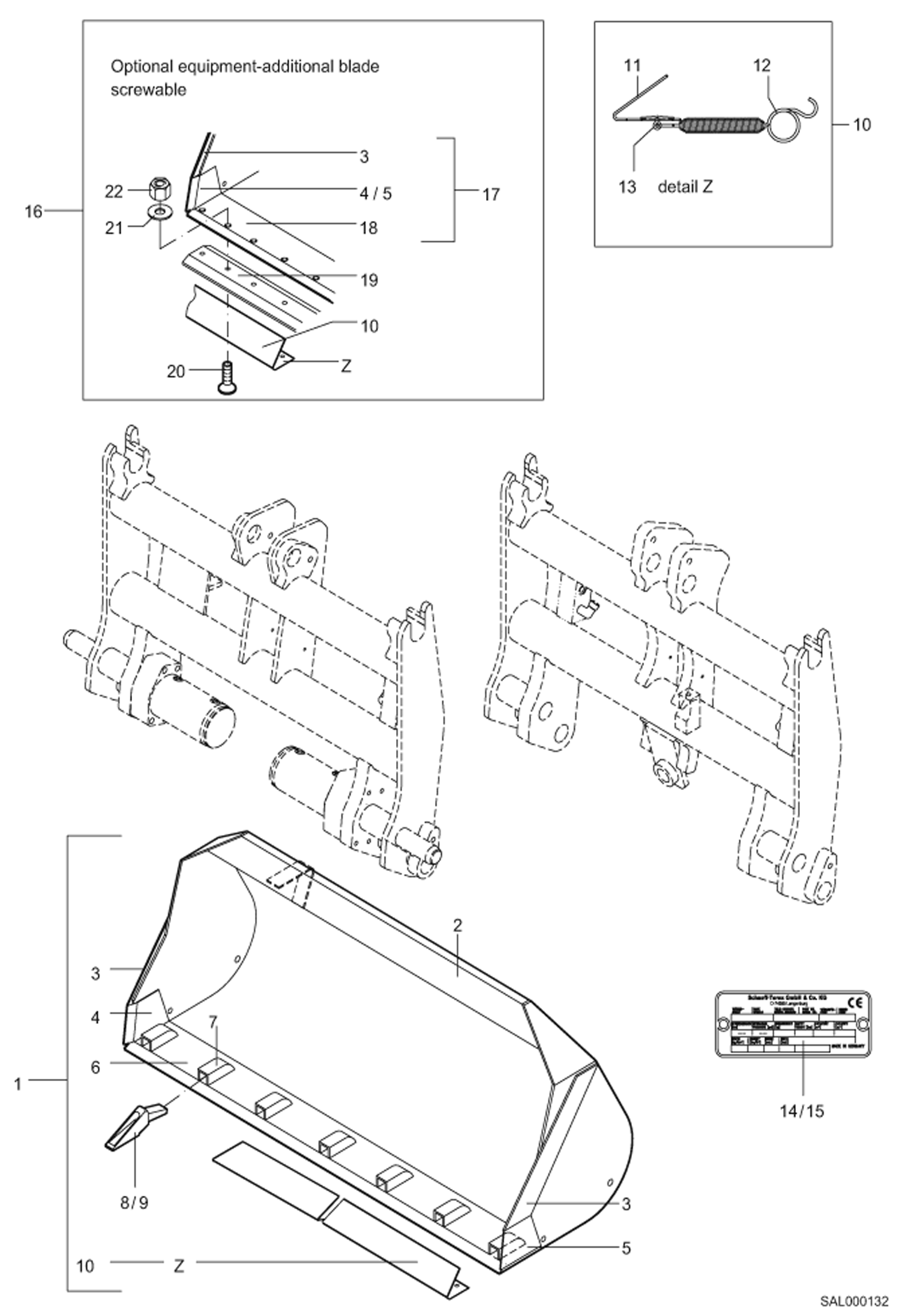

Запчасти Bobcat AL350 EARTH SHOVEL Навесное оборудование

1

6452203000

EARTH SHOVEL 1850MM Includes Ref. 2 + 8 to 15

2

6452203001

EARTH SHOVEL 1850MM Includes Ref. 3 to 7

3

6393701004

SIDE-STRIP

4

0451201023

CUTTING EDGE RIGHT

5

0451201024

CUTTING EDGE LEFT

6

6338901105

CUTTING EDGE Includes Ref. 7

7

5455204900

SLEEVE

8

5455204800

TOOTH

9

5455700096

TOOTH CUP Was 5455205000 - A

10

6452201030

TOOTH PROTECTION CPL. Includes Ref. 11 to 13

11

--

NAME PLATE

12

5249001010

SPRING

13

1395707827

COTTER PIN Was 5249001011 - A

14

--

NAME PLATE

15

1940000739

RIVET

16

6452204000

EARTH SHOVEL SHOVEL Includes Ref. 17 + 19 to 23 + 10 to 15

17

0452204001

EARTH SHOVEL 1850MM Includes Ref. 3 to 5 + 18

18

0452202003

CUTTING EDGE

19

0452202002

BOLT-ON CUTTING EDGE

20

1062707236

BOLT

21

1290707025

WASHER

22

1212251015

NUT
