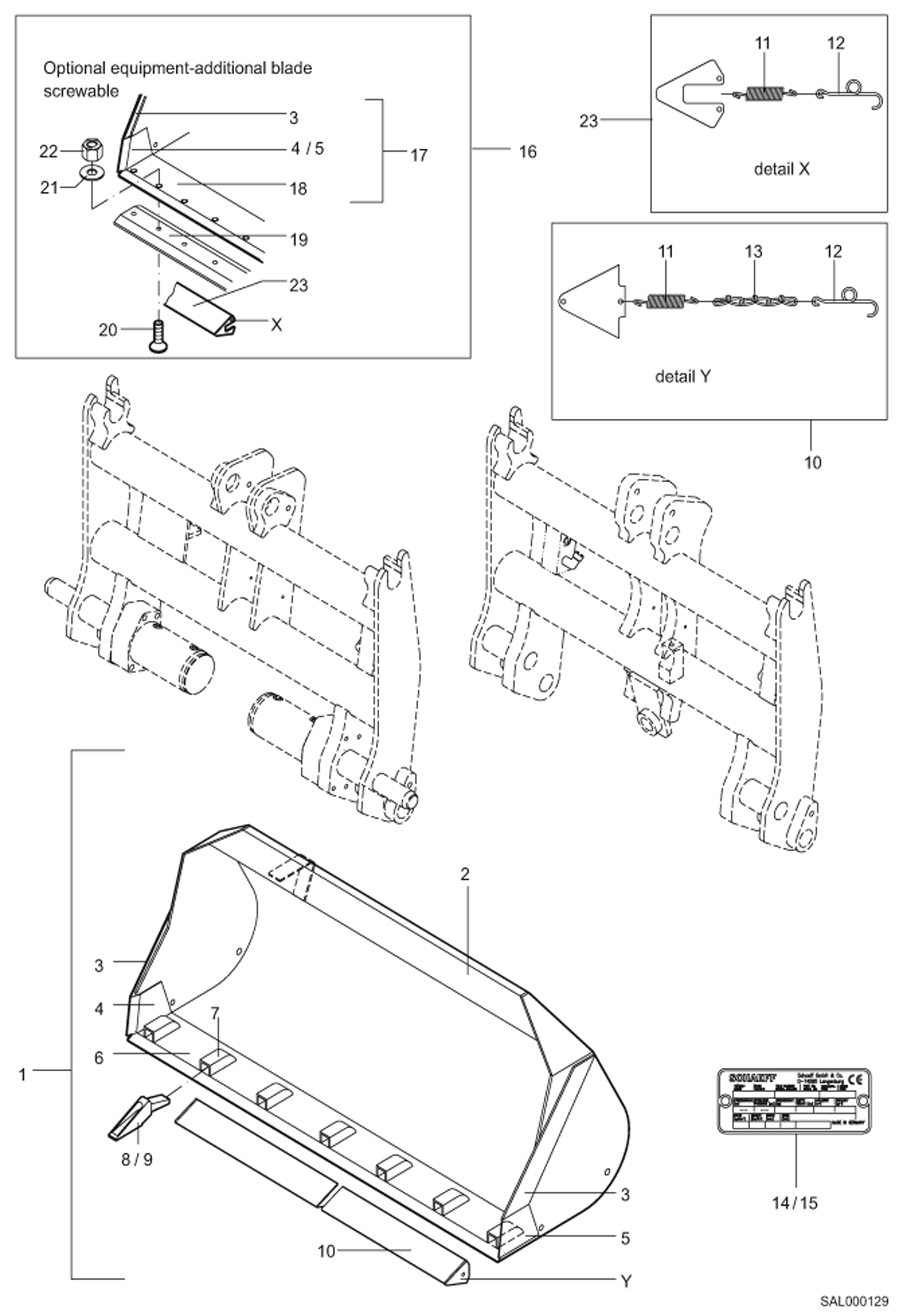

Запчасти Bobcat AL350 LOADING SHOVEL Навесное оборудование

1

6452201000

LOADING SHOVEL 1850MM Includes Ref. 2 + 8 to 15

2

0452201001

LOADING SHOVEL 1850MM Include Ref. 3 to 7

3

6393701004

SIDE-STRIP

4

0451201023

CUTTING EDGE RIGHT

5

0451201024

CUTTING EDGE LEFT

6

6338901105

CUTTING EDGE Includes Ref. 7

7

5455204900

SLEEVE

8

5455204800

TOOTH

9

5455700096

TOOTH CUP Was 5455205000 - A

10

6333201033

TOOTH PROTECTION Includes Ref. 11 to 13

11

0271422004

SPRING

12

0273114008

HOOK

13

5361324500

CHAIN

14

--

NAME PLATE

15

1940000739

RIVET

16

6452202000

LOADING SHOVEL Includes Ref. 17 + 19 to 23 + 14 + 15

17

0452202001

LOADING SHOVEL Includes Ref. 3 to 5 + 18

18

0452202003

CUTTING EDGE

19

0452202002

BOLT-ON CUTTING EDGE

20

1062707236

BOLT

21

1290707025

WASHER

22

1212251015

NUT

23

6336705023

GUARD FOR CUTTING EDGE Includes Ref. 11 + 12
