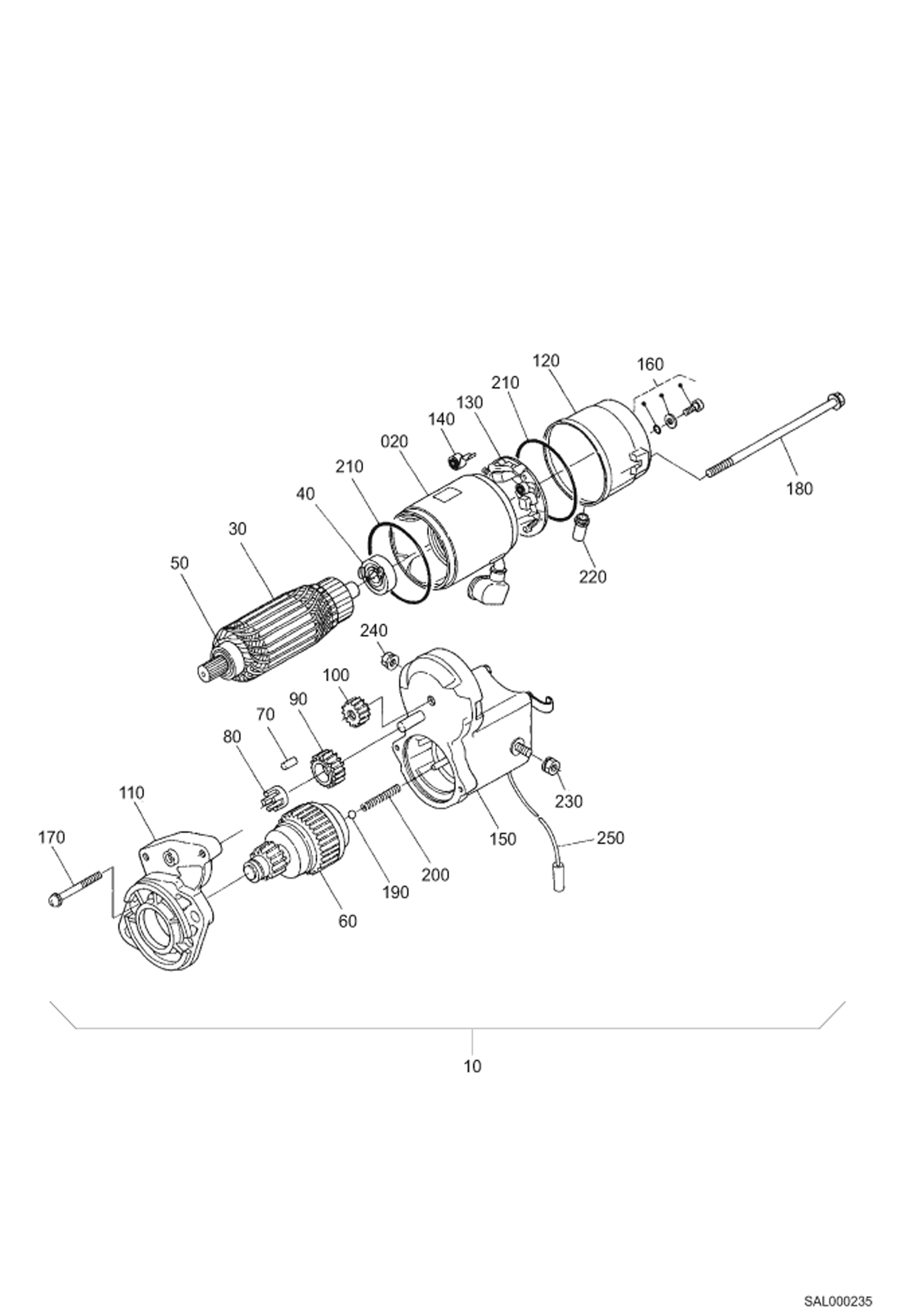

Запчасти Bobcat AL275 STARTER (COMPONENT PARTS) POWER UNIT

10

6689462

ASSY STARTER Includes Ref. 20 to 250

20

6689468

YOKE

30

6689467

ARMATURE Includes Ref. 40 + 50

40

6689473

BEARING

50

6662327

BEARING Was 6683289 - A

60

6689452

CLUTCH, OVER RUNNING

70

3390091

ROLLER Was 6689498 - A

80

6662334

RETAINER

90

6662333

GEAR

100

6689470

GEAR

110

6689466

BEARING, BALL

120

6689464

FRAME, END

130

6689472

HOLDER, BRUSH Includes Ref. 140

140

6689469

SPRING

150

6689463

ASSY SWITCH, MAGNETIC

160

6689474

SCREW

170

6689475

SCREW

180

6689471

BOLT, THROUGH

190

3390093

BALL Was 6689499 - A

200

6662335

SPRING

210

3390007

O-RING Was 6689443 - A

220

6689453

PIPE, DRAIN

230

3390097

NUT Was 6689417 - A

240

6683153

NUT

250

6689465

ASSY WIRE, CONNECTING
