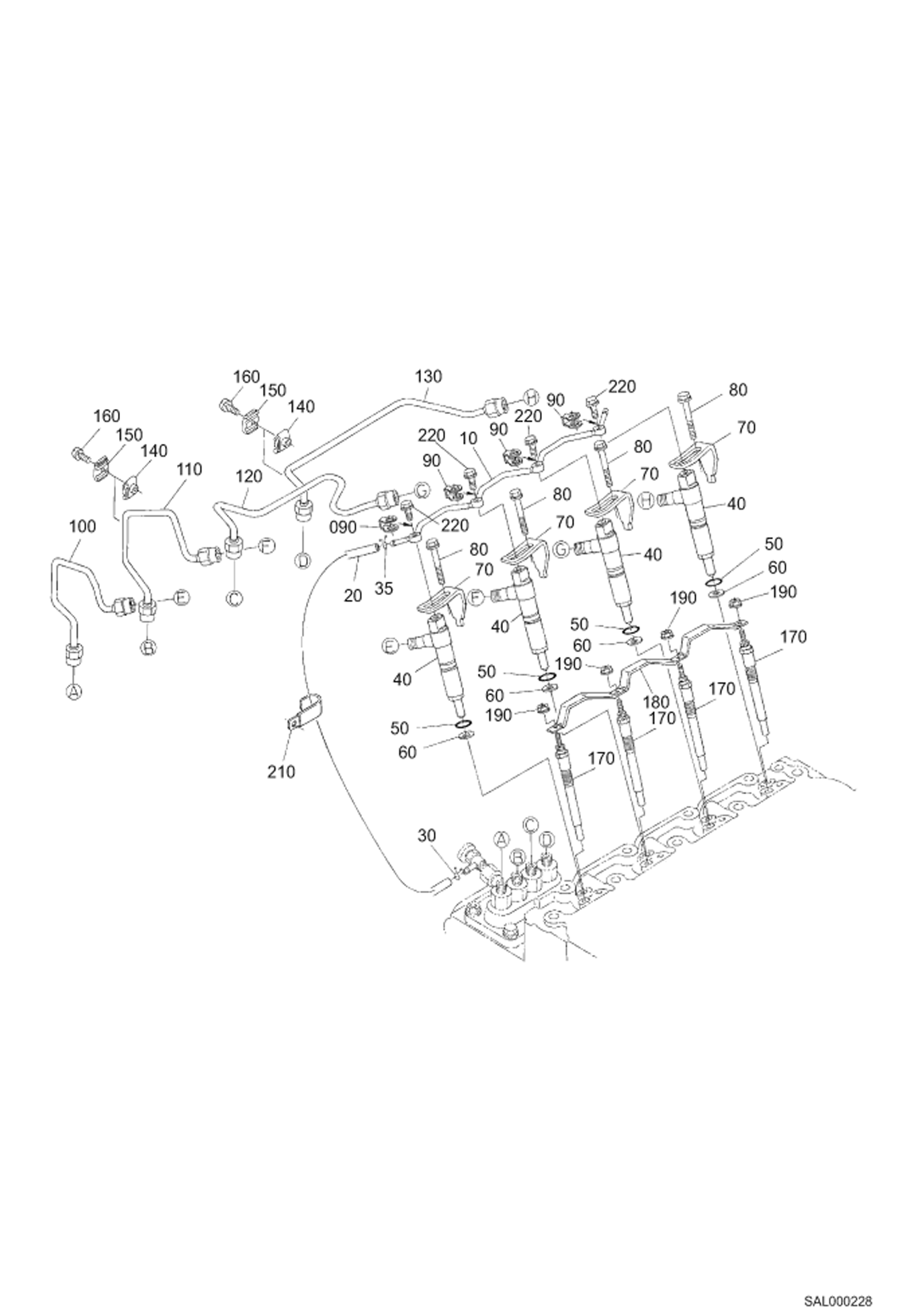

Запчасти Bobcat AL275 NOZZLE HOLDER AND GLOW PLUG POWER UNIT

10

6684842

PIPE, OVERFLOW

20

6598146

PIPE Includes Ref. 30 + 35

30

6654718

CLAMP pipe - Was 6680795 - A

35

6654718

CLAMP

40

6689541

ASSY HOLDER, NOZZLE Includes Ref. 220

50

6670769

O-RING

60

6969824

GASKET, NOZZLE INJ Was 6689529 - A

70

7015275

CLAMP, INJECTION nozzle - Was 6684845 - A

80

6684844

BOLT

90

6685498

GASKET

100

6685102

PIPE

110

6685103

PIPE

120

6684848

PIPE, INJECTION

130

6684849

PIPE, INJECTION

140

6680785

CLAMP

150

6680786

CLAMP

160

3974260

SCREW

170

6684850

GLOW PLUG

180

6689531

CORD, GLOW PLUG

190

6670472

NUT

210

6667457

CLAMP

220

6680788

BOLT Was 6689528 - A
