ENGINE STOP LEVER

Запчасти Bobcat AL275 ENGINE STOP LEVER POWER UNIT

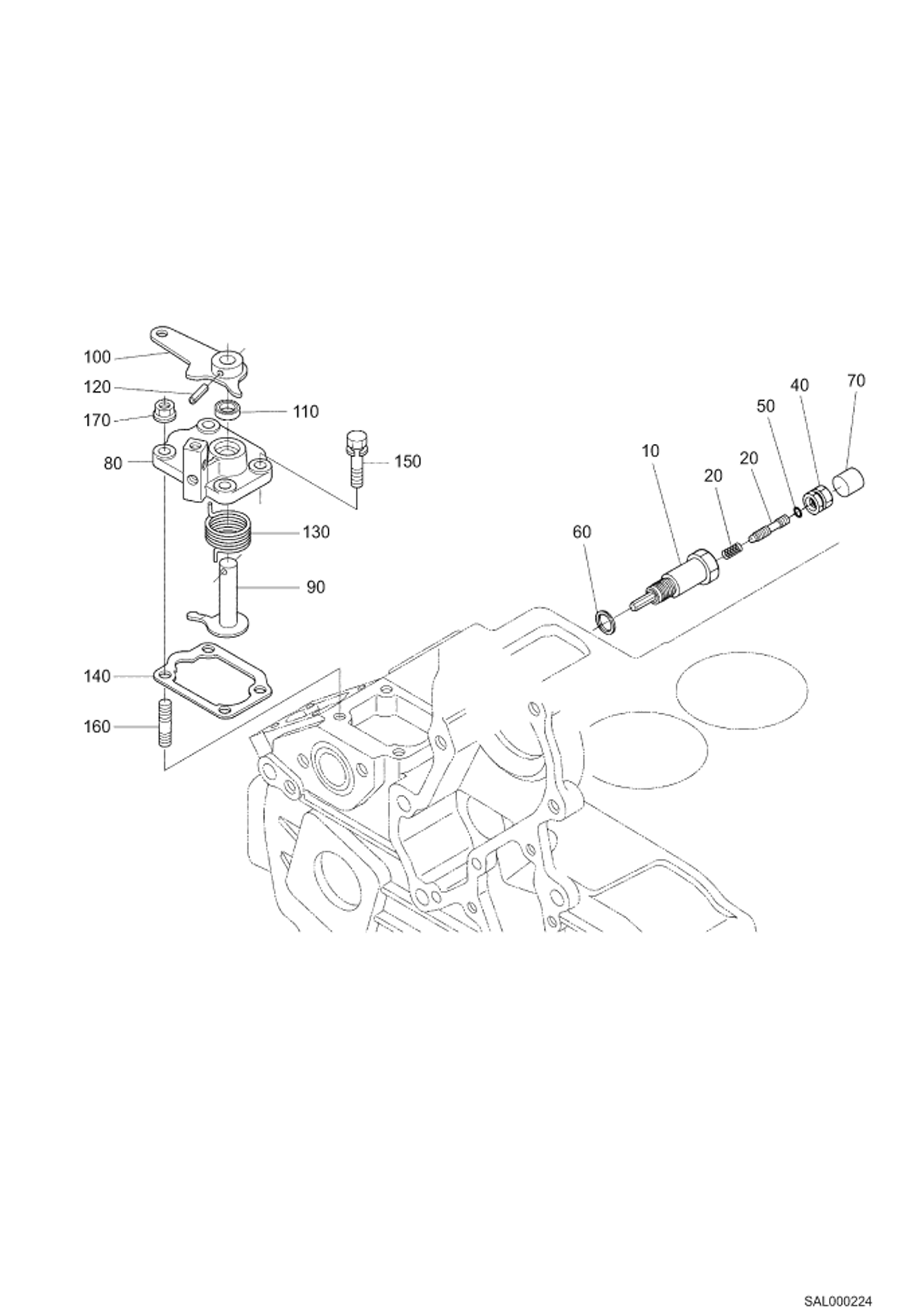

Схема запчастей Bobcat AL275 - ENGINE STOP LEVER POWER UNIT
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

10

6686334

IDLE APPARATUS Includes Ref. 20 + 40 + 50

20

6685513

BOLT, ADJ.

40

6684817

NUT

50

6684891

SEAL

60

6684818

SEAL

70

6684819

CAP

80

6684820

LEVER Includes Ref. 90 to 130

90

6684821

LEVER

100

6684822

LEVER

110

6689442

SEAL, OIL

120

6598098

PIN

130

6684823

SPRING

140

6684841

GASKET

150

1CM620

BOLT Was 4CM620 - A

160

6689435

STUD

170

6670533

NUT Was 6969818 - A
