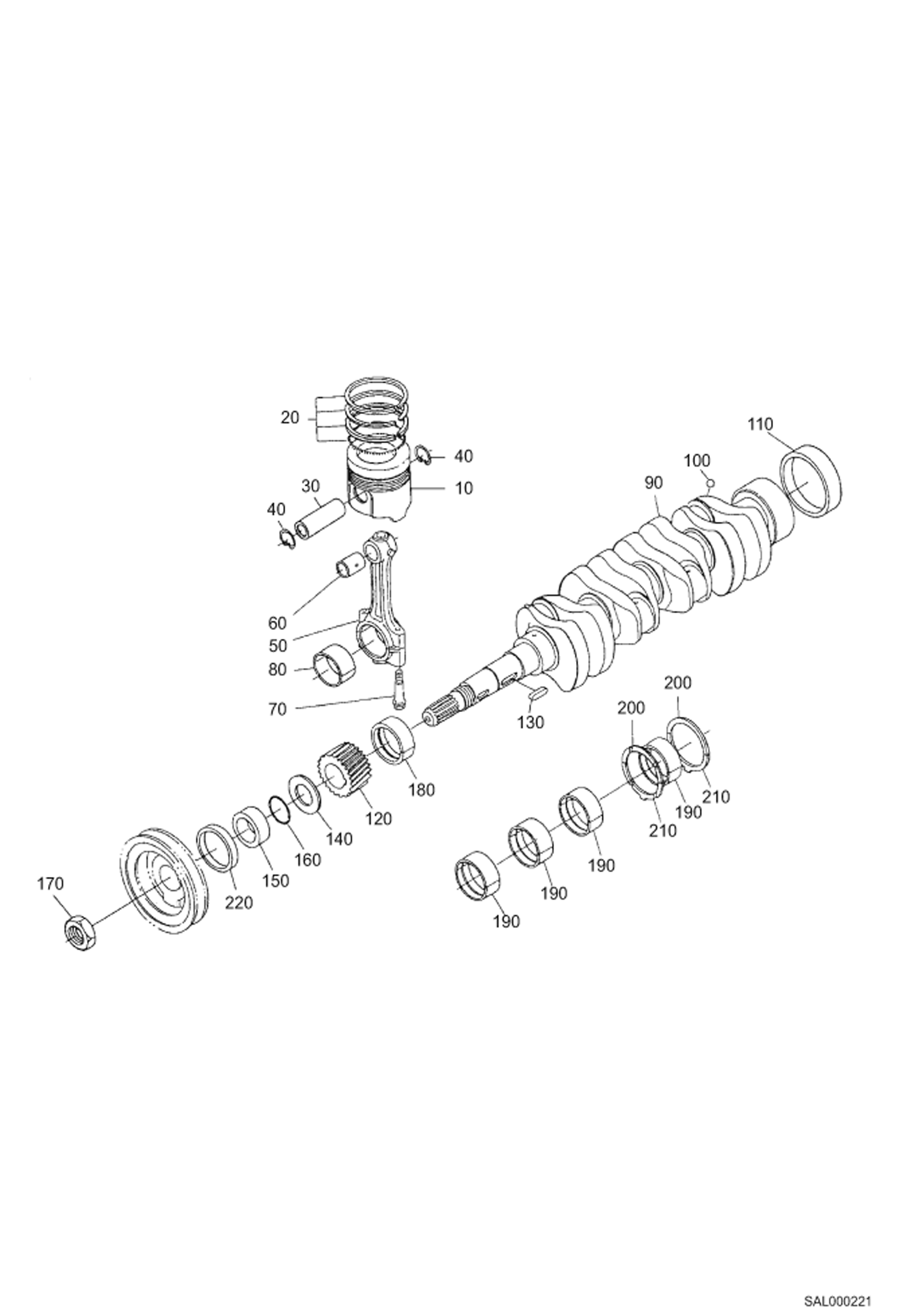

Запчасти Bobcat AL275 PISTON AND CRANKSHAFT POWER UNIT

10

6689534

PISTON 505) STD

10

6689538

PISTON (05) +0.25mm

10

6689535

PISTON (00) STD

10

6689539

PISTON (00) +0.25mm

10

6689537

PISTON (10) STD

10

6689540

PISTON (10) +0.25mm

20

6689522

ASSY PISTON RING STD

20

6689523

ASSY PISTON RING +0.25mm

30

6689422

PIN, PISTON

40

6686997

CIR-CLIP

50

6689478

ASSY CONNECTING ROD Includes Ref. 60 to 80

60

6689483

BUSH, PISTON PIN

70

BOLT NLA - Order 2 of 7020998 bolt and be advised of different torque specs

80

6689479

METAL, CRANKPIN STD SET

80

6689480

METAL, CRANKPIN -0.2mm

80

6689481

METAL, CRANKPIN -0.4mm

90

6686040

CRANKSHAFT Includes Ref. 100 + 110

100

6652633

BALL 1/4''

110

6653859

SLEEVE Was 6684807 - A

120

6684808

GEAR

130

6684809

KEY

140

6653861

SLINGER, OIL Was 6598141 - A

150

6653859

SLEEVE Was 6684807 - A

160

3974577

O RING

170

6689431

NUT, CRANKSHAFT

180

7015264

BEARING, ENG CRANKSHAFT main - Std. - Was 6685486 - A

180

6685490

BEARING -0.20mm

180

6685491

BEARING -0.40mm

190

7015265

BEARING, ENG CRANKSHAFT std set - Was 6685487 - A

190

6685492

BEARING -0.2mm SET

190

6685493

BEARING -0.4mm SET

200

7015266

WASHER, THRUST thrust - Std. - Was 6685488 - A

200

6685494

WASHER +0.20mm

200

6685495

WASHER +0.40mm

210

7015267

WASHER, THRUST std - Was 6685489 - A

210

6685496

WASHER +0.20mm

210

6685497

WASHER +0.40mm

220

7024826

SEAL, OIL oil frt main - Was 6631664 - A
