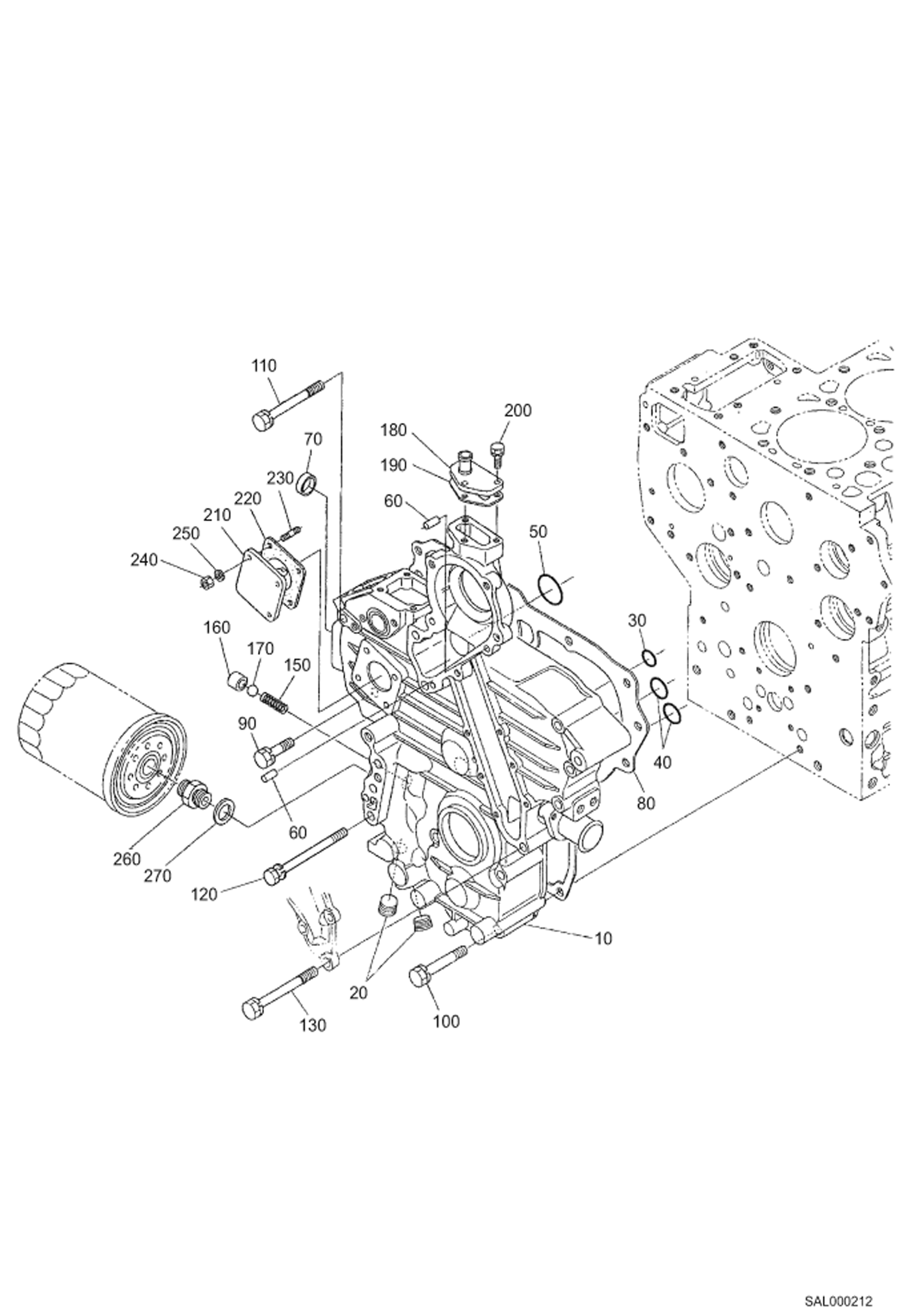

Запчасти Bobcat AL275 GEAR CASE POWER UNIT

10

6689547

COMP. CASE, GEAR Includes Ref. 20

20

6672360

PLUG

30

6685466

O-RING

40

6685467

O-RING

50

6685468

O-RING

60

3974395

PIN

70

6689414

CAP, SEALING

80

6684770

GASKET

90

1CM835

BOLT

100

6680562

BOLT

110

6689486

BOLT

120

6689410

BOLT

130

6689487

BOLT

150

6689437

SPRING

160

3974893

SEAT

170

10J13

BALL

180

3974894

FLANGE

190

6666803

GASKET water return flange - Was 6684774 - A

200

1CM620

BOLT Was 4CM620 - A

210

6689436

COVER

220

6689515

GASKET, HOUR METER

230

6689435

STUD

240

6969802

NUT

250

6667419

WASHER

260

6653809

CONNECTOR Was 6686982 - A

270

6685501

WASHER
