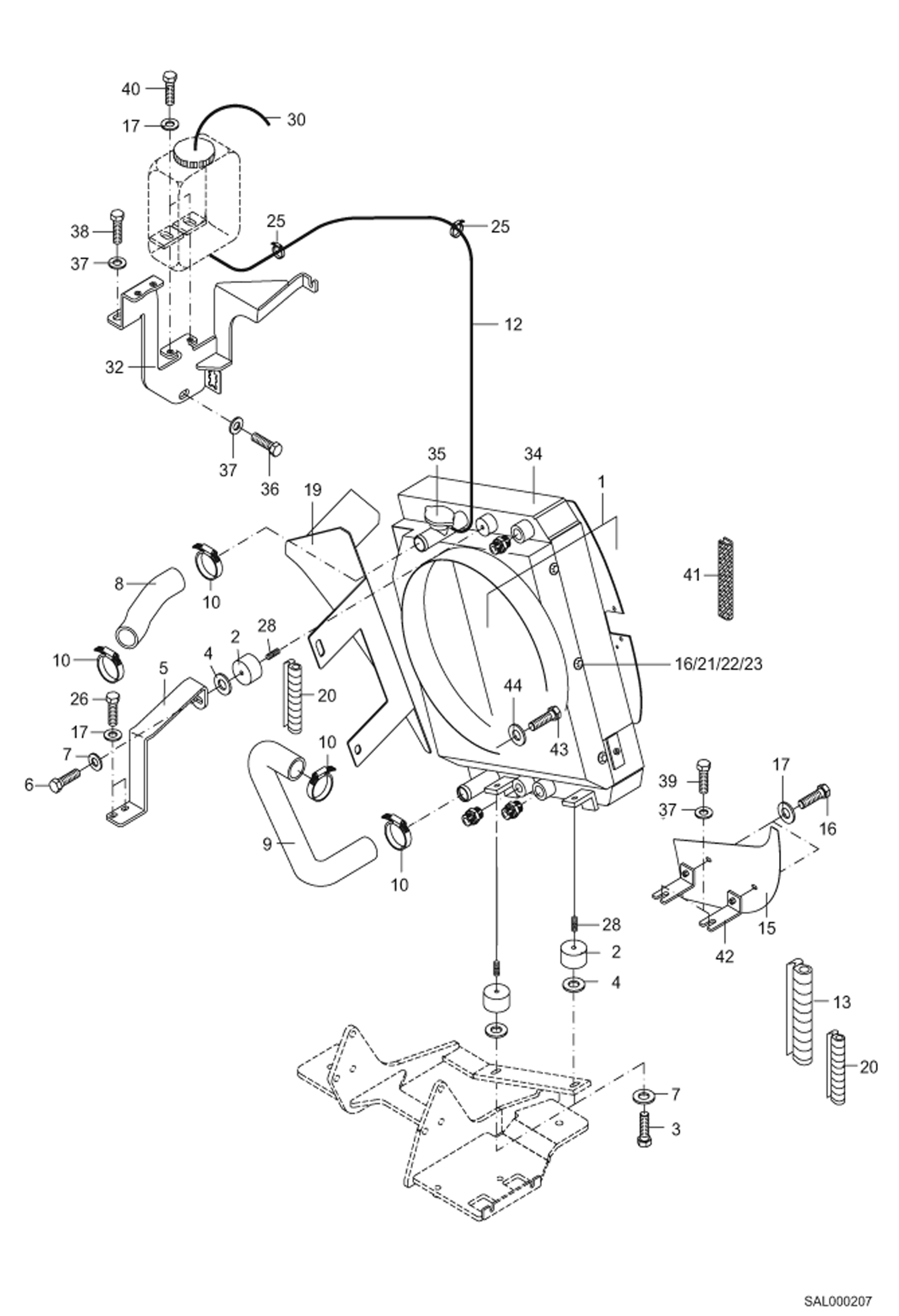

Запчасти Bobcat AL275 COMBINED COOLER POWER UNIT

1

5010661085

COMBI RADIATOR COOLER

2

BEARING NLA - Was 5101290966 - A

3

1008707923

BOLT

4

1307707020

WASHER

5

6451815042

BRACKET

6

1008707623

BOLT

7

1343707059

WASHER

8

5210657413

HOSE

9

5210657415

HOSE

10

5660095300

HOSE CLIP

12

0214515071

HOSE

13

7023313

SEALING SECTION - A

15

6451815048

PLATE

16

1008707018

BOLT

17

1343707057

WASHER

19

6452815045

PLATE

20

5354600028

SEALING SECTION

21

5253100148

NUT

22

1307707018

WASHER

23

1321707018

SPRING WASHER

25

5603320320

HOSE CLIP

26

1008707318

BOLT

28

1133341623

STUD

30

4035107000

HOSE

32

6451815043

BRACKET

34

5010663096

VENTILATOR COVER

35

5010663091

CAP

36

1011707828

BOLT

37

1343707061

WASHER

38

1008707886

BOLT

39

1008707829

BOLT

40

1007707818

BOLT

41

5354600000

EDGE PROTECTION

42

6451815047

BRACKET

43

1150201615

PLUG

44

1636815355

SEAL RING
