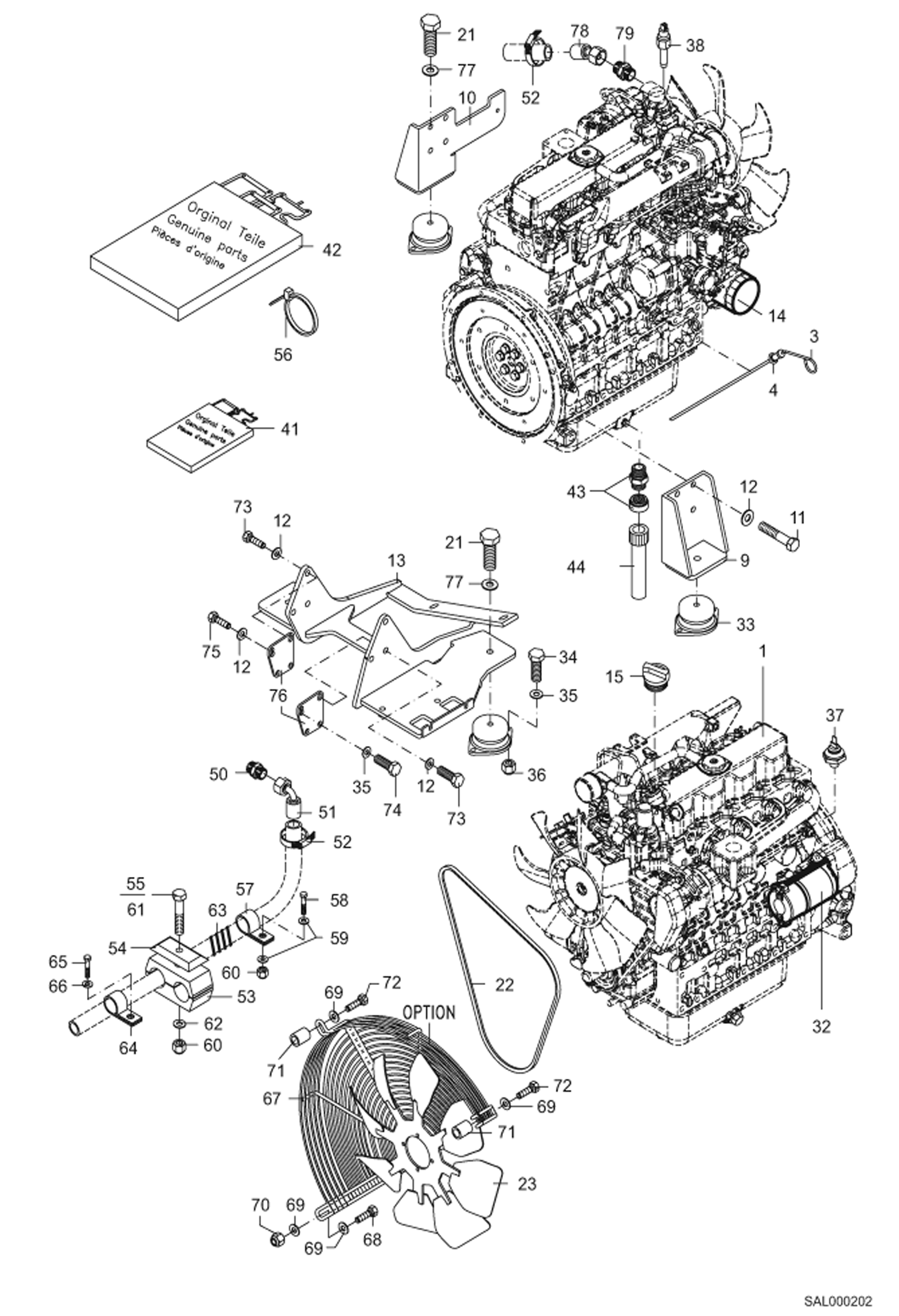

Запчасти Bobcat AL275 ENGINE ASSEMBLY POWER UNIT

1

5474010013

ENGINE

3

DIPSTICK

4

BUSHING

9

6451815020

ENGINE SUPPORT LEFT

10

6451815025

ENGINE SUPPORT LEFT

11

1008707886

BOLT

12

1290707022

WASHER

13

6451815010

ENGINE SUPPORT RIGHT

14

ENGINE OIL FILTER

15

FILLER CAP

21

1008707230

BOLT

22

NARROW V-BELT

23

5081657506

FAN

32

STARTER

33

5101290964

RUBBER BASE

34

1008707524

BOLT

35

1290707020

WASHER

36

1212251013

NUT

37

OIL PRESS:SWITCH

38

5411663474

TRANSMITTER, TEMP. Was 5411657101 - A

41

SUPPLEM. GASKET SET

42

GASKET SET (ENGINE)

43

5366654593

DRAIN PLUG

44

5366654556

HOSE, DRAIN

50

1915060893

FITTING See Illustration COMBINED COOLER/ SAL000207

51

5260063014

HOSE CONNECTOR

52

5603320315

CLIP

53

5660199788

HOSE CLIP

54

5660200230

COVER PLATE

55

1007707319

BOLT

56

5350650280

BINDER

57

5000210410

HOSE CLIP

58

1008707318

BOLT

59

1343707057

WASHER

60

1212251011

NUT

61

1007707919

BOLT

62

1290707018

WASHER

63

5000068300

WIRING HARNESS

64

5000210400

HOSE CLIP

65

1011707147

BOLT

66

1343707059

WASHER

67

5619001007

PROTECTION GRID OPTION

68

1008707318

BOLT OPTION

69

1343707057

WASHER OPTION

70

1212251011

NUT OPTION

71

0452309002

PIPE OPTION

72

1008707019

BOLT OPTION

73

1011707928

BOLT

74

1011707147

BOLT

75

1011707828

BOLT

76

6451815018

DISTANCE-PLATE

77

1343707061

WASHER

78

5260063013

HOSE CONNECTOR

79

1915060564

FITTING
